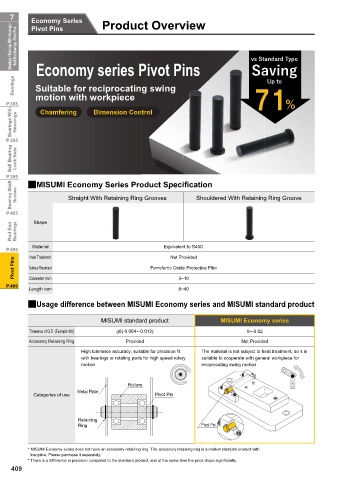

Page 412 - MiSUMi FA Mechanical Components Economy Series

7 Economy Series Product Overview
Bearings / Bearings With Housings / Rod End Bearings / Pivot Pins YV 6WDQGDUG 7\SH
Pivot Pins

Economy series Pivot Pins

Bearings Suitable for reciprocating swing 6DYLQJ
8S WR
motion with workpiece
P.365 Chamfering Dimension Control ᵕᵏ
Bearings With Housings

P.393
Ball Bearing Lock Nuts

P.395 2MISUMI Economy Series Product SpecificationficationSpeciffication
Bearing Shaft Screws Straight With Retaining Ring Grooves Shouldered With Retaining Ring Groove

P.403 Shape
Rod End Bearings

Material Equivalent to S45C
P.405 Heat Treatment Not Provided
Pivot Pins Surface Treatment Ferroferric Oxide Protective Film

P.409 Diameter mm 3~10
Length mm 8~40
2Usage difference between MISUMI Economy series and MISUMI standard product

MISUMI standard product MISUMI Economy series
Tolerance of O.D. (Example ĭ6) g6(-0.004~-0.012) 0~-0.02
Accessory Retaining Ring Provided Not Provided
High tolerance accuracy, suitable for precision fit The material is not subject to heat treatment, so it is
with bearings or rotating parts for high speed rotary suitable to cooperate with general workpiece for
motion reciprocating swing motion

Rollers
Metal Plate
Categories of use Pivot Pin

Retaining
Ring Pivot Pin

* MISUMI Economy series does not have an accessory retaining ring. The accessory retaining ring is a market standard product with
low price. Please purchase it separately.
* There is a difference in precision compared to the standard product, and at the same time the price drops significantly.
409
