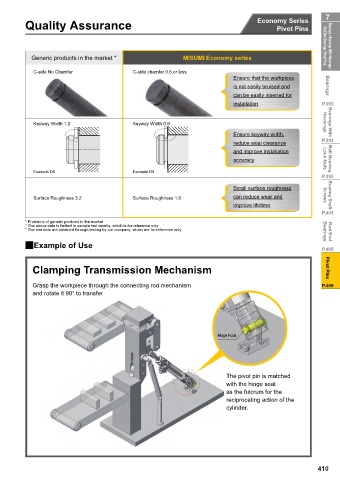

Page 413 - MiSUMi FA Mechanical Components Economy Series

7
Economy Series
Quality Assurance Pivot Pins

Generic products in the market * MISUMI Economy series Rod End Bearings / Pivot Pins Bearings / Bearings With Housings /

C-side No Chamfer C-side chamfer 0.5 or less
Ensure that the workpiece
is not easily bruised and Bearings
can be easily inserted for
installation P.365

Keyway Width 1.2 Keyway Width 0.9 Housings Bearings With
Ensure keyway width,
P.393
reduce axial clearance
and improve installation
accuracy Lock Nuts Ball Bearing
Example D8 Example D8
P.395
Small surface roughness
Surface Roughness 3.2 Surface Roughness 1.6 can reduce wear and Screws Bearing Shaft
improve lifetime
P.403
* Problems of generic products in the market
* The above data is limited to sample test results, which is for reference only.
* The test data are obtained through testing by our company, which are for reference only Bearings Rod End
2Example of Use
P.405

Clamping Transmission Mechanism Pivot Pins

Grasp the workpiece through the connecting rod mechanism P.409
and rotate it 90° to transfer

Hinge Hook

The pivot pin is matched
with the hinge seat
as the fulcrum for the
reciprocating action of the
cylinder.
