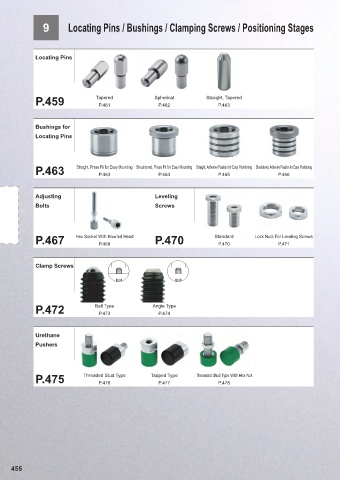

9 Locating Pins / Bushings / Clamping Screws / Positioning Stages

Locating Pins

P.459 Tapered Spherical Straight, Tapered
P.461
P.462
P.463
Bushings for
Locating Pins

P.463 Straight, Press Fit for Easy Mounting Shouldered, Press Fit for Easy Mounting Straight, Adhesive Fixation for Easy Positioning Shouldered, Adhesive Fixation for Easy Positioning
P.465
P.464
P.463
P.466
Adjusting Leveling
Bolts Screws

P.467 Hex Socket With Knurled Head P.470 Standard Lock Nuts For Leveling Screws
P.471
P.470
P.468
Clamp Screws

P.472 Ball Type Angle Type
P.474
P.473

Urethane
Pushers

P.475 Threaded Stud Type Tapped Type Threaded Stud Type With Hex Nut
P.478
P.476
P.477
