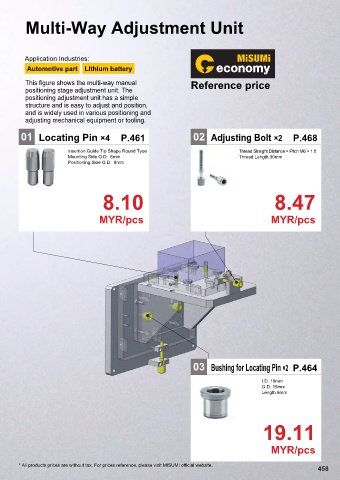

Multi-Way Adjustment Unit

Application Industries:
Automotive part Lithium battery

This figure shows the multi-way manual Reference price
positioning stage adjustment unit. The
positioning adjustment unit has a simple
structure and is easy to adjust and position,
and is widely used in various positioning and
adjusting mechanical equipment or tooling.

01 Locating Pin ×4 P.461 02 Adjusting Bolt ×2 P.468

Insertion Guide Tip Shape Round Type Thread Straight Distance × Pitch M6 × 1.0
Mounting Side O.D. 6mm Thread Length 30mm
Positioning Side O.D. 8mm

8.10 8.47

MYR/pcs MYR/pcs

03 Bushing for Locating Pin ×2 P.464

I.D. 10mm
O.D. 15mm
Length 8mm

19.11

MYR/pcs

* All products prices are without tax. For prices reference, please visit MISUMI official website.
