Economy Series

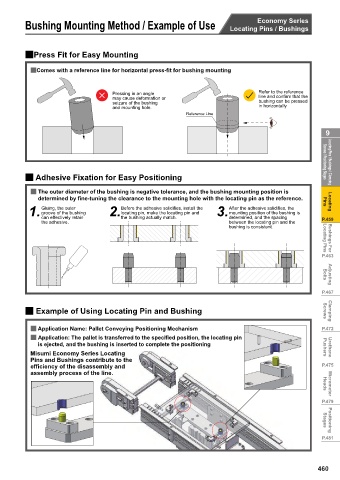

Bushing Mounting Method / Example of Use Locating Pins / Bushings

2Press Fit for Easy Mounting

2Comes with a reference line for horizontal press-fit for bushing mounting

Pressing in an angle Refer to the reference
may cause deformation or line and confirm that the
seizure of the bushing bushing can be pressed
and mounting hole. in horizontally
Reference Line

9

2 Adhesive Fixation for Easy Positioning Screws / Positioning Stages Locating Pins / Bushings / Clamping

2 The outer diameter of the bushing is negative tolerance, and the bushing mounting position is
determined by fine-tuning the clearance to the mounting hole with the locating pin as the reference. Pins Locating
1. Gluing, the outer 2. Before the adhesive solidifies, install the 3. After the adhesive solidifies, the
mounting position of the bushing is
locating pin, make the locating pin and
groove of the bushing
can effectively retainn the bushing actually match.chatmyactanghusbh determined, and the spacing P.459
the adhesive. between the locating pin and the
bushing is consistent. Locating Pins Bushings For

P.463

Bolts
Adjusting
P.467

2 Example of Using Locating Pin and Bushing Screws Clamping

2 Application Name: Pallet Conveying Positioning Mechanism P.472
2 Application: The pallet is transferred to the specified position, the locating pin
is ejected, and the bushing is inserted to complete the positioning Pushers
Misumi Economy Series Locating Locating Urethane
Pins and Bushings contribute to the ribute to the
mbly and
efficiency of the disassembly and P.475
line.
assembly process of the line. Heads Micrometer
