Economy Series

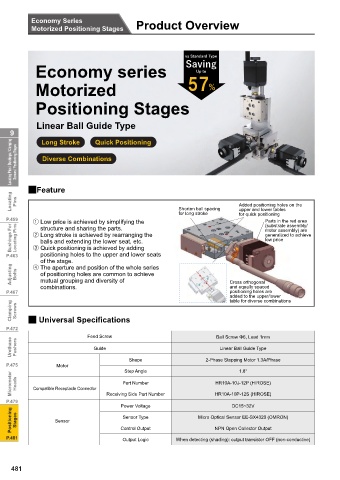

Motorized Positioning Stages Product Overview

YV 6WDQGDUG 7\SH
Economy series 6DYLQJ
8S WR
Motorized ᵓᵕ

Positioning Stages

Linear Ball Guide Type
9 Long Stroke Quick Positioning
Locating Pins / Bushings / Clamping Screws / Positioning Stages Diverse Combinations

2Feature
Locating Pins Added positioning holes on the

Shorten ball spacing
for long stroke upper and lower tables
for quick positioning
P.459 Low price is achieved by simplifying the Parts in the red area
Bushings For Locating Pins Long stroke is achieved by rearranging the motor assembly) are
(substrate assembly/
structure and sharing the parts.
generalized to achieve
low price
EDOOV DQG H[WHQGLQJ WKH ORZHU VHDW HWF
positioning holes to the upper and lower seats
P.463 Quick positioning is achieved by adding
of the stage.
Adjusting Bolts of positioning holes are common to achieve
The aperture and position of the whole series
mutual grouping and diversity of
combinations. Cross orthogonal
and equally spaced
P.467 positioning holes are
added to the upper/lower
table for diverse combinations
Clamping Screws
P.472 2 Universal Specifications %DOO 6FUHZ ĭ /HDG PP
Feed Screw
Urethane Pushers Guide Linear Ball Guide Type

Shape 2-Phase Stepping Motor 1.3A/Phase
P.475 Motor Step Angle 1.8°
Micrometer Heads Compatible Receptacle Connector Part Number HR10A-10J-12P (HIROSE)

P.479 Receiving Side Part Number HR10A-10P-12S (HIROSE)
Power Voltage DC15~32V
Positioning Stages Sensor Control Output Micro Optical Sensor EE-SX4320 (OMRON)
Sensor Type
NPN Open Collector Output
P.481 Output Logic When detecting (shading): output transistor OFF (non-conductive)
