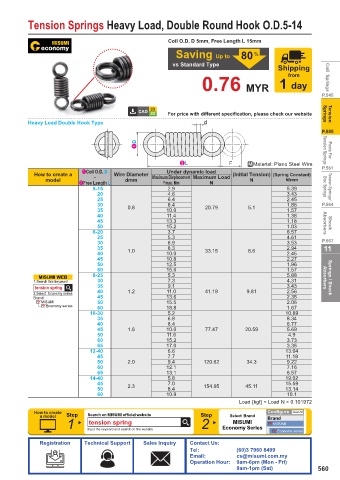

Tension Springs Heavy Load, Double Round Hook O.D.5-14

Coil O.D. D 5mm, Free Length L 15mm

Saving Up to 80 %
vs Standard Type
Shipping
shipping
from Coil Springs
1day
0.76 MYR 1 day
P.545

For price with different specification, please check our website Springs Tension
Heavy Load Double Hook Type d
P.555
D Tension Springs Posts For

L F .Material: Piano Steel Wire
P.561
Coil O.D. D Under dynamic load
How to create a - Wire Diameter Maximum Displacement Maximum Load (Initial Tension) (Spring Constant)
model dmm N N/mm
Free Length L Fmax. Mm N
5-15 2.9 5.39 Disc Springs Torsion Springs/
20 4.6 3.43
25 6.4 2.45
30 0.8 8.4 20.79 5.1 1.86 P.564
35 10.0 1.57
40 11.4 1.38
45 13.3 1.18 Absorbers Shock
50 15.2 1.03
6-20 3.7 6.57
25 5.3 4.61
30 6.9 3.53 P.567
35 1.0 8.3 33.15 8.6 2.94 11
40 10.0 2.45
45 10.8 2.27
50 12.5 1.96
60 15.6 1.57
MISUMI WEB 8-25 5.3 5.88 Absorbers Springs / Shock
1.Search this keyword 30 7.3 4.31
tension spring 35 9.1 3.43
2.Select Economy series 40 1.2 11.0 41.19 9.81 2.56
Brand 45 13.6 2.35
MISUMI 50 15.5 2.06
Economy series 60 18.8 1.67
10-30 5.2 10.89
35 6.8 8.34
40 8.4 6.77
45 1.6 10.0 77.47 20.59 5.69
50 11.6 4.9
60 15.2 3.73
65 17.0 3.35
12-40 6.6 13.04
45 7.7 11.18
50 2.0 9.4 120.62 34.3 9.22
60 12.1 7.16
65 13.1 6.57
14-40 5.8 19.02
45 2.3 7.0 154.95 45.11 15.59
50 8.4 13.14
60 10.9 10.1
Load {kgf} = Load N × 0.101972
