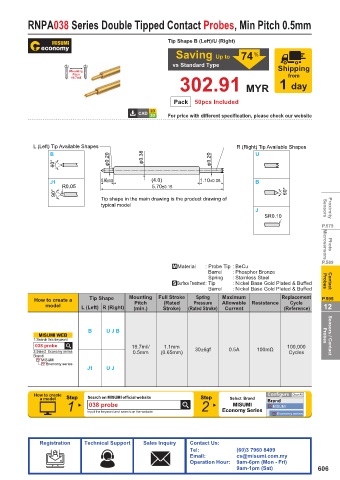

RNPA038 Series Double Tipped Contact Probes, Min Pitch 0.5mm

Tip Shape B (Left)/U (Right)
74 %
Saving Up to
vs Standard Type
Mounting Shipping
Pitch from
19.7mil
302.91 MYR 1 day

Pack 50pcs Included
For price with different specification, please check our website

L (Left) Tip Available Shapes R (Right) Tip Available Shapes
B П0.38 U
60° П0.20 П0.20

J1 0.60±0.05 (4.0) 1.10±0.05 B
R0.05 5.70±0.15
90° 60°
Tip shape in the main drawing is the product drawing of
typical model
J Sensors Proximity
SR0.10
P.579

P.589
Microsensors
.Material : Probe Tip : BeCu
Barrel : Phosphor Bronze
Spring : Stainless Steel
4Surface Treatment: Tip : Nickel Base Gold Plated & Buffed Probes Contact
Barrel : Nickel Base Gold Plated & Buffed
How to create a Tip Shape Mounting Full Stroke Spring Maximum Replacement P.595
Pressure
Cycle
Pitch
(Rated
model L (Left) R (Right) (min.) Stroke) (Rated Stroke) Allowable Resistance (Reference) 12
Current
B U J B
MISUMI WEB Probes Sensors / Contact
1.Search this keyword
038 probe 19.7mil/ 1.1mm 100,000
2.Select Economy series 0.5mm (0.65mm) 30±6gf 0.5A 100mΩ Cycles
Brand
MISUMI
Economy series
J1 U J

How to create Search on MISUMI official website Configure Clear All
a model Step Step Select Brand Brand
1 038 probe 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
