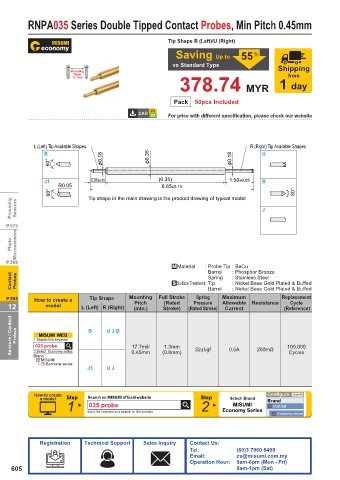

Page 608 - MiSUMi FA Mechanical Components Economy Series

RNPA035 Series Double Tipped Contact Probes, Min Pitch 0.45mm

Tip Shape B (Left)/U (Right)
55 %
Saving Up to
vs Standard Type
Mounting Shipping
Pitch from
17.7mil
378.74 MYR 1 day

Pack 50pcs Included
For price with different specification, please check our website

L (Left) Tip Available Shapes R (Right) Tip Available Shapes
B П0.35 U
60° П0.18 П0.18

J1 0.80±0.05 (6.35) 1.50±0.05 B
R0.05 8.65±0.15
60° Tip shape in the main drawing is the product drawing of typical model 60°
Proximity Sensors J

P.579

Photo Microsensors

P.589
.Material : Probe Tip : BeCu
: Phosphor Bronze
Barrel
Contact Probes 4Surface Treatment: Tip : Stainless Steel
Spring
: Nickel Base Gold Plated & Buffed
Barrel
: Nickel Base Gold Plated & Buffed
P.595 How to create a Tip Shape Mounting Full Stroke Spring Maximum Replacement
Cycle
Pressure
(Rated
Pitch
12 model L (Left) R (Right) (min.) Stroke) (Rated Stroke) Allowable Resistance (Reference)
Current
Sensors / Contact Probes 1.Search this keyword B U J B 17.7mil/ 1.3mm 100,000
MISUMI WEB
035 probe
2.Select Economy series
Brand
MISUMI 0.45mm (0.8mm) 22±5gf 0.5A 200mΩ Cycles
Economy series
J1 U J

How to create Search on MISUMI official website Configure Clear All
a model Step Step Select Brand Brand
1 035 probe 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
