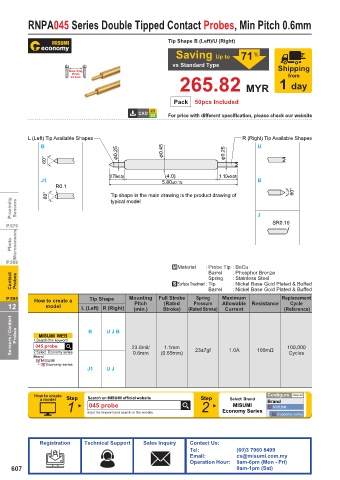

Page 610 - MiSUMi FA Mechanical Components Economy Series

RNPA045 Series Double Tipped Contact Probes, Min Pitch 0.6mm

Tip Shape B (Left)/U (Right)
71 %
Saving Up to
vs Standard Type
Mounting Shipping
Pitch
23.6mil from
265.82 MYR 1 day

Pack 50pcs Included
For price with different specification, please check our website

L (Left) Tip Available Shapes R (Right) Tip Available Shapes
B П0.45 U

60° П0.25 П0.25

0.70±0.05 (4.0) 1.10±0.05
J1 5.80±0.15 B
R0.1
60° Tip shape in the main drawing is the product drawing of 60°
Proximity Sensors typical model J

SR0.10
P.579
Photo Microsensors

P.589
.Material : Probe Tip : BeCu
: Phosphor Bronze
Barrel
Contact Probes 4Surface Treatment: Tip : Stainless Steel
Spring
: Nickel Base Gold Plated & Buffed
Barrel
: Nickel Base Gold Plated & Buffed
P.595 How to create a Tip Shape Mounting Full Stroke Spring Maximum Replacement
(Rated
Pressure
Cycle
Pitch
12 model L (Left) R (Right) (min.) Stroke) (Rated Stroke) Allowable Resistance (Reference)
Current
Sensors / Contact Probes 1.Search this keyword B U J B
MISUMI WEB
045 probe
1.1mm
2.Select Economy series
Cycles
0.6mm
Brand 23.6mil/ (0.65mm) 23±7gf 1.0A 100mΩ 100,000
MISUMI
Economy series
J1 U J
How to create Search on MISUMI official website Configure Clear All
a model Step Step Select Brand Brand
1 045 probe 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
