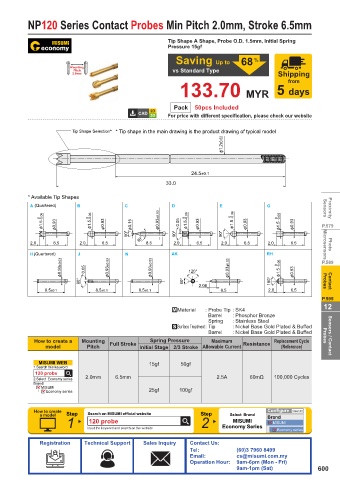

Page 603 - MiSUMi FA Mechanical Components Economy Series

NP120 Series Contact Probes Min Pitch 2.0mm, Stroke 6.5mm

Tip Shape A Shape, Probe O.D. 1.5mm, Initial Spring
Pressure 15gf

Saving Up to 68 %
Mounting
Pitch vs Standard Type
2.0mm Shipping
from
133.70 MYR 5 days

Pack 50pcs Included
For price with different specification, please check our website

Tip Shape Selection* * Tip shape in the main drawing is the product drawing of typical model
П1.2±0.02

24.5±0.1
33.0

* Available Tip Shapes
A (Quartered) B C D E G Sensors Proximity
-0.06 -0.06 -0.06 -0.06 -0.06
П1.5 +0 П0.93 П1.5 +0 П0.93 50° П0.15 П0.93±0.03 0.05 П1.5 +0 П0.93 П1.5 +0 П0.93 П1.5 +0 П0.93 P.579

90°
90°
2.0 6.5 2.0 6.5 30° 8.5 2.0 6.5 2.0 6.5 2.0 6.5 Microsensors Photo
H (Quartered) J N AK RH
П0.93±0.03 0.05 П0.93±0.03 П0.93±0.03 120° П0.93±0.03 -0.06 П1.5 +0 П0.93 P.589

90° 60° 100° Probes Contact
2.08
8.5±0.1 8.5±0.1 8.5±0.1 8.5 2.0 6.5
P.595
12
.Material : Probe Tip : SK4
Barrel : Phosphor Bronze
Spring : Stainless Steel
4Surface Treatment: Tip : Nickel Base Gold Plated & Buffed
Barrel : Nickel Base Gold Plated & Buffed Probes Sensors / Contact
How to create a Mounting Full Stroke Spring Pressure Maximum Resistance Replacement Cycle
model Pitch Initial Stage 2/3 Stroke Allowable Current (Reference)

MISUMI WEB 15gf 50gf
1.Search this keyword
120 probe
2.Select Economy series 2.0mm 6.5mm 2.5A 60mΩ 100,000 Cycles
Brand
MISUMI
Economy series 25gf 100gf

How to create Search on MISUMI official website Configure Clear All
a model Step Step Select Brand Brand
1 120 probe 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
