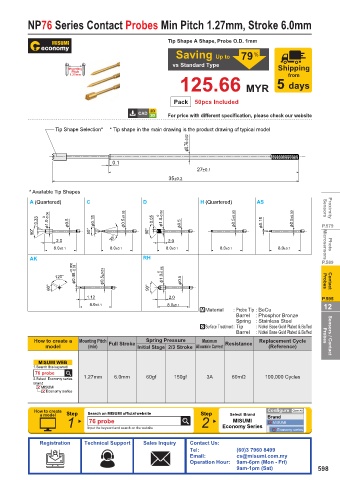

Page 601 - MiSUMi FA Mechanical Components Economy Series

NP76 Series Contact Probes Min Pitch 1.27mm, Stroke 6.0mm

Tip Shape A Shape, Probe O.D. 1mm
79 %
Saving Up to
vs Standard Type
Mounting Shipping
Pitch
1.27mm from
125.66 MYR 5 days

Pack 50pcs Included
For price with different specification, please check our website

Tip Shape Selection* * Tip shape in the main drawing is the product drawing of typical model
П0.76±0.02

0.1
27±0.1
35±0.2

* Available Tip Shapes
A (Quartered) C D H (Quartered) AS Sensors Proximity
-0.06 -0.06
0.33 П1.0 +0 П0.5 П0.15 П0.5±0.03 0.05 П1.0 +0 П0.5 П0.5±0.03 П0.15 П0.5±0.03 P.579
60° 50° 90°
2.0 30° 2.0
8.0±0.1 8.0±0.1 8.0±0.1 8.0±0.1 8.0±0.1 Microsensors Photo
AK RH P.589
П0.48 +0.005 -0.01 -0.06
120° П0.5±0.03 П1.0 +0 П0.5 Probes Contact
60° 90°
1.12 2.0 P.595
8.0±0.1 8.0±0.1 12
.Material : Probe Tip : BeCu
Barrel : Phosphor Bronze
Spring : Stainless Steel
4Surface Treatment: Tip : Nickel Base Gold Plated & Buffed
Barrel : Nickel Base Gold Plated & Buffed Probes Sensors / Contact
How to create a Mounting Pitch Spring Pressure Maximum Replacement Cycle
model (min) Full Stroke Initial Stage 2/3 Stroke Allowable Current Resistance (Reference)

MISUMI WEB
1.Search this keyword
76 probe
2.Select Economy series 1.27mm 6.0mm 60gf 150gf 3A 60mΩ 100,000 Cycles
Brand
MISUMI
Economy series

How to create Configure Clear All
a model Step Search on MISUMI official website Step Select Brand Brand
1 76 probe 2 MISUMI MISUMI
Economy Series
Input the keyword and search on the website
Economy series
