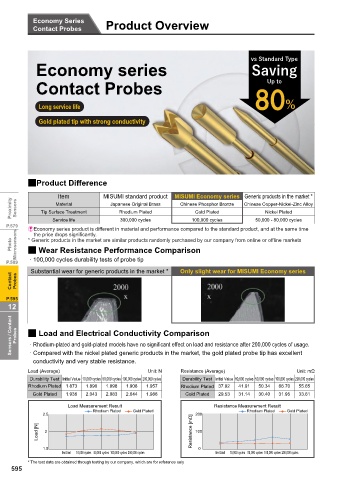

Page 598 - MiSUMi FA Mechanical Components Economy Series

Economy Series
Contact Probes Product Overview

YV 6WDQGDUG 7\SH
Economy series 6DYLQJ

Contact Probes 8S WR

Long service life ᵖᵎ
Gold plated tip with strong conductivity

2Product Difference

Item MISUMI standard product MISUMI Economy series Generic products in the market *
Proximity Sensors Tip Surface Treatment Japanese Original Brass Chinese Phosphor Bronze Chinese Copper-Nickel-Zinc Alloy
Material
Gold Plated
Rhodium Plated
Nickel Plated
Service life 300,000 cycles 100,000 cycles 50,000 - 80,000 cycles
P.579 & Economy series product is different in material and performance compared to the standard product, and at the same time
the price drops significantly.
Photo Microsensors * Generic products in the market are similar products randomly purchased by our company from online or offl ine markets
2 Wear Resistance Performance Comparison
P.589 · 100,000 cycles durability tests of probe tip
Substantial wear for generic products in the market * Only slight wear for MISUMI Economy series
Contact Probes

P.595
12

Sensors / Contact Probes 2 Load and Electrical Conductivity Comparison

· Rhodium-plated and gold-plated models have no significant effect on load and resistance after 200,000 cycles of usage.
· Compared with the nickel plated generic products in the market, the gold plated probe tip has excellent
conductivity and very stable resistance.
Load (Average) Unit: N Resistance (Average) Unit: mȍ
Durability Test Initial Value 10,000 cycles 50,000 cycles 100,000 cycles 200,000 cycles Durability Test Initial Value 10,000 cycles 50,000 cycles 100,000 cycles 200,000 cycles
Rhodium Plated 1.873 1.890 1.898 1.908 1.957 Rhodium Plated 37.92 41.91 50.34 66.70 55.65
Gold Plated 1.936 2.043 2.083 2.044 1.986 Gold Plated 29.53 31.14 30.40 31.95 33.61

Load Measurement Result Resistance Measurement Result
Rhodium Plated Gold Plated Rhodium Plated Gold Plated
2.5 200
Load [N] 2 5HVLVWDQFH >Pȍ@ 100

1.5 0
Initial 10,000 cycles 50,000 cycles 100,000 cycles 200,000 cycles Initial 10,000 cycles 50,000 cycles 100,000 cycles 200,000 cycles
* The test data are obtained through testing by our company, which are for reference only
