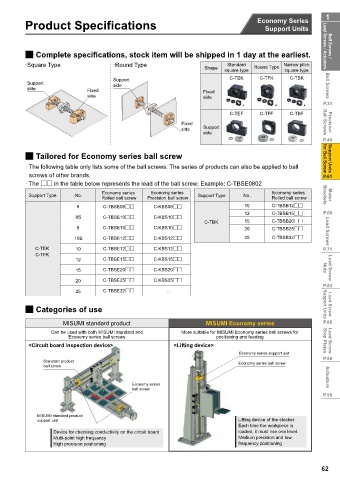

Page 65 - MiSUMi FA Mechanical Components Economy Series
P. 65

1
                                                                                 Economy Series
          Product Specifications                                                   Support Units



          2 Complete specifications, stock item will be shipped in 1 day at the earliest.            Lead Screws / Actuators  Ball Screws /
          ·Square Type               ·Round Type                        Standard         Narrow pitch
                                                                 Shape  square type  Round Type  square type
                                     Support                            C-TEK     C-TFK    C-TBK
           Support                   side                                                             Ball Screws
           side              Fixed                              Fixed
                             side                               side
                                                                                                     P.31
                                                                        C-TEF     C-TFF    C-TBF
                                                          Fixed                                      Ball Screws  Precision
                                                          side  Support
                                                                side
                                                                                                     P.49

          2 Tailored for Economy series ball screw                                                   for Ball Screw  Support Units
          · The following table only lists some of the ball screws. The series of products can also be applied to ball
            screws of other brands.                                                                  P.61
          · The    in the table below represents the lead of the ball screw; Example: C-TBSE0802
                                  Economy series  Economy series                     Economy series
           Support Type  No.                                   Support Type  No.                     Brackets  Motor
                                  Rolled ball screw  Precision ball screw            Rolled ball screw
                          6       C-TBSE08       C-KBS08                     10      C-TBSB12
                                                                             12      C-TBSB15        P.69
                          8S      C-TBSE10       C-KBS10
                                                                 C-TBK       15      C-TBSB20
                          8       C-TBSE10       C-KBS10                     20      C-TBSB25         Lead Screws
                         10S      C-TBSE12       C-KBS12                     25      C-TBSB32
             C-TEK        10      C-TBSE12       C-KBS12                                             P.71
             C-TFK
                          12      C-TBSE15       C-KBS15
                          15      C-TBSE20       C-KBS20                                             Nuts  Lead Screw
                          20      C-TBSE25       C-KBS25
                                                                                                     P.83
                          25      C-TBSE32           -

          2 Categories of use                                                                        Support Units   Lead Screw

                      MISUMI standard product                    MISUMI Economy series               P.86
                  Can be used with both MISUMI standard and  More suitable for MISUMI Economy series ball screws for
                        Economy series ball screws                  positioning and feeding          Stop Plates
           <Circuit board inspection device>           <Lifting device>Lifting device>                Lead Screw
                                                                           Economy series support unit
                                                                                                     P.90
                Standard product                                           Economy series ball screw
                ball screw

                                           Economy series                                             Actuators
                                           ball screw
                                                                                                     P.99


              MISUMI standard product
              support unit                                                 Lifting device of the stocker
                                                                           Each time the workpiece is
                   Device for checking conductivity on the circuit board   loaded, it must rise one level.
                   Multi-point high frequency                              Medium precision and low
                   High precision positioning                              frequency positioning


                                                                                                    62
