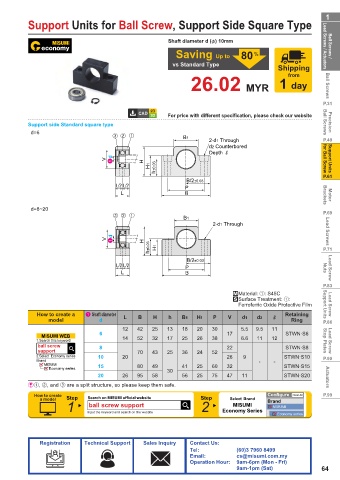

Page 67 - MiSUMi FA Mechanical Components Economy Series
P. 67

1
           Support Units for Ball Screw, Support Side Square Type

                                                      Shaft diameter d (П) 10mm                      Lead Screws / Actuators  Ball Screws /

                                                        Saving Up to        80  %
                                                       vs Standard Type
                                                                                       Shipping
                                                                                          from
                                                             26.02 MYR                  1 day         Ball Screws

                                                                                                     P.31
                                                      For price with different specification, please check our website
           Support side Standard square type                                                         Ball Screws  Precision
            d=6
                                                          B1
                                                                  2-d1 Through                       P.49
                                                                  d2 Counterbored
                                                                  Depth R
                                   V   d      H                                                      for Ball Screw  Support Units
                                                H1  h±0.03
                                                                                                     P.61
                                                           B/2±0.03
                                      L/2 L/2              P
                                       L                   B                                         Brackets  Motor

            d=8~20
                                                                                                     P.69
                                                          B1
                                                                   2-d1 Through                       Lead Screws
                                   V   d      H
                                                h±0.03  H1                                           P.71

                                                           B/2±0.03
                                      L/2 L/2              P                                         Nuts  Lead Screw
                                       L                   B

                                                                                                     P.83
                                                                         .Material:  : S45C
                                                                         4Surface Treatment:  :
                                                                           Ferroferric Oxide Protective Film  Support Units   Lead Screw
              How to create a     Shaft diameter  L  B  H  h  B1  H1  P  V  d1   d2      Retaining
                 model           d                                                   R     Ring      P.86
                                        12  42   25  13   18  20   30       5.5  9.5  11
                                 6                                      17               STWN·S6
               MISUMI WEB
              1.Search this keyword     14  52   32  17   25  26   38       6.6  11  12              Stop Plates  Lead Screw
              ball screw         8                                      22               STWN·S8
              support                       70   43  25   36  24   52
              2.Select  Economy series  10  20                          26   9           STWN·S10
              Brand                                                              -    -              P.90
                MISUMI          15          80   49       41  25   60   32               STWN·S15
                  Economy series                     30
                                20      26  95   58       56  25   75   47  11           STWN·S20     Actuators
           & ,  , and   are a split structure, so please keep them safe.
             How to create                                                          Configure  Clear All  P.99
               a model  Step  Search on MISUMI official website  Step   Select  Brand  Brand
                       1     Input the keyword and search on the website  2  Economy Series  MISUMI
                              ball screw support
                                                                         MISUMI
                                                                                       Economy series
