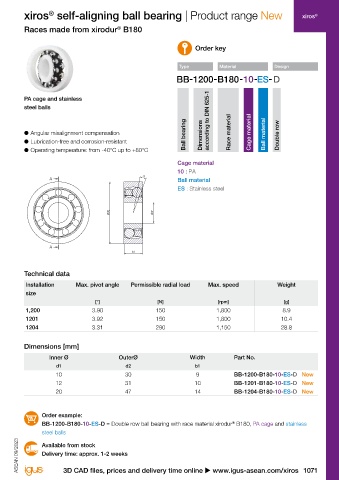

xiros ® xiros double row ball bearing | Product range xiros self-aligning ball bearing | Product range New xiros ®
Races made from xirodur B180 Races made from xirodur B180
®
®

Order key Order key

Type Material Design Type Material Design

PA cage, PA cage and stainless
stainless steel or steel balls
glass balls according to DIN 625-1 according to DIN 625-1
Ball bearing Dimensions Race material Cage material Ball material Double row ● Angular misalignment compensation Ball bearing Dimensions Race material Cage material Ball material Double row

● Higher loads ● Lubrication-free and corrosion-resistant
● More cost-effective than two comparable bearings ● Operating temperature: from -40°C up to +80°C

Cage material Cage material
10 : PA 10 : PA
A
Options: A Ball material
Ball material ES : Stainless steel
ES : Stainless steel
GL : Glass
d1 d2
Ød2 Ød1

b1
A
b1

Technical data Technical data

Installation Radial load capacity Limit speed Weight Installation Max. pivot angle Permissible radial load Max. speed Weight
size stat. dyn. PA/ES PA/GL size
[N] [N] [rpm] [g] [g] [°] [N] [rpm] [g]
6000 200 240 1,000 11.23 6.90 1,200 3.90 150 1,800 8.9
6004 420 470 650 35.60 22.55 1201 3.92 150 1,800 10.4
1204 3.31 290 1,150 28.8

Dimensions [mm] Dimensions [mm]

Inner Ø OuterØ Width Cage/ball material combination Part No. Inner Ø OuterØ Width Part No.
d1 d2 b1 PA/ES PA/GL d1 d2 b1
10 26 14 BB-6000-B180-10- -D 10 30 9 BB-1200-B180-10-ES-D New
20 42 20 BB-6004-B180-10- -D 12 31 10 BB-1201-B180-10-ES-D New
20 47 14 BB-1204-B180-10-ES-D New

Order example: Order example:
BB-6000-B180-10-ES-D = Double row ball bearing with race material xirodur B180, PA cage and stainless BB-1200-B180-10-ES-D = Double row ball bearing with race material xirodur B180, PA cage and stainless
®
®
steel balls steel balls
Available Available from stock
from stock ASEAN 09/2023 ASEAN 09/2023 Delivery time: approx. 1-2 weeks

1070 Online tools and more information u www.igus-asean.com/xiros 3D CAD files, prices and delivery time online u www.igus-asean.com/xiros 1071
