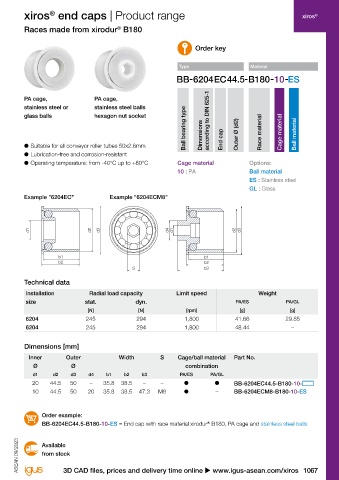

xiros ® xiros conveyor rollers | Product range xiros end caps | Product range xiros ®
xiros system solution - closed on one end Races made from xirodur B180
®
®

Order key Order key

Type Material Type Material

Closed special solution with aluminium tube and PA cage, PA cage,
polymer ball bearing for guide rollers and label rollers stainless steel or stainless steel balls
glass balls
hexagon nut socket
● Closed design Ball bearing conveyor Length - upon request according to DIN 625-1
● Resistant to dirt Aluminium tube Cage material Ball material Ball bearing type Dimensions Outer Ø (d2) Race material Cage material Ball material
● Simple installation roller Outer Ø Suitable for all conveyor roller tubes 50x2.8mm End cap
● Dimensions according to customer request ●
● Lubrication-free and corrosion-resistant
Cage material ● Operating temperature: from -40°C up to +80°C Cage material Options:
30 : xirodur B180 10 : PA Ball material
®
Ready-to-install complete systems with shaft Ball material ES : Stainless steel
to required size upon request ES : Stainless steel GL : Glass
Example "6204EC" Example "6204ECM8"

L1

d1 d2 d1 d2 d3 d4 d1 d4 d1 d2 d3 d2 d3

L2
b1 b1 b1
b2 b2 b2
S S b3 b3

Dimensions [mm] Technical data

OuterØ Length Part No. Installation Radial load capacity Limit speed Weight
d2 L1 size stat. dyn. PA/ES PA/GL
30 According to customer request BBTG-AC30-XX-30-ES [N] [N] [rpm] [g] [g]
38 According to customer request BBTG-AC38-XX-30-ES 6204 245 294 1,800 41.66 29.85
50 According to customer request BBTG-AC50-XX-30-ES 6204 245 294 1,800 48.44 –
60 According to customer request BBTG-AC60-XX-30-ES
Dimensions [mm]

Inner Outer Width S Cage/ball material Part No.
Ø Ø combination
d1 d2 d3 d4 b1 b2 b3 PA/ES PA/GL
20 44.5 50 – 35.8 38.5 – – BB-6204EC44.5-B180-10-
10 44.5 50 20 35.8 38.5 47.3 M8 – BB-6204ECM8-B180-10-ES

Order example:
BB-6204EC44.5-B180-10-ES = End cap with race material xirodur B180, PA cage and stainless steel balls
®

Upon request Available
For a ready-to-install complete system, please contact us. ASEAN 09/2023 ASEAN 09/2023 from stock

1066 Online tools and more information u www.igus-asean.com/xiros 3D CAD files, prices and delivery time online u www.igus-asean.com/xiros 1067
