xiros ® xiros conveyor rollers | Product range New xiros conveyor rollers | Product range xiros ®

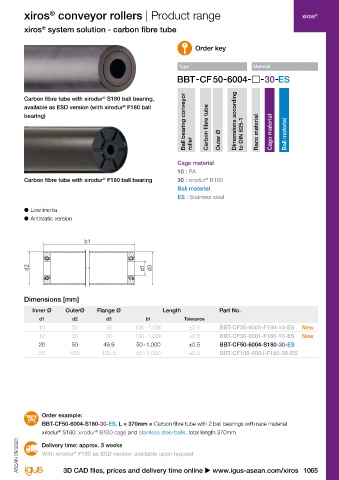

xiros system solution - stainless steel tube xiros system solution - carbon fibre tube
®
®

Order key Order key

Type Material Type Material

Ball bearing conveyor Stainless steel tube Outer Ø Dimensions according to DIN 625-1 Race material Cage material Ball material bearing) Ball bearing conveyor Carbon fibre tube Outer Ø Dimensions according to DIN 625-1 Race material Cage material Ball material
Stainless steel tube with xirodur B180 ball bearing Carbon fibre tube with xirodur S180 ball bearing,
®
®
● Application in the food and medical sector available as ESD version (with xirodur F180 ball
®

roller
roller

Cage material Cage material
10 : PA 10 : PA
Stainless steel conveyor rollers with xirodur F180 30 : xirodur B180 Carbon fibre tube with xirodur F180 ball bearing 30 : xirodur B180
®
®
®
®
ball bearings 70 : PEEK Ball material
● Prevents static charge
Ball material ES : Stainless steel
ES : Stainless steel
● Low inertia
● Antistatic version

b1 b1
A A

®
Stainless steel tube with xirodur A500 ball bearing
● Operating temperature up to +150°C d2 d1 d3 d2 d1 d3
● With FDA-compliant components
● Resistant to a wide range of chemicals
A A

Dimensions [mm] Dimensions [mm]
Inner Ø OuterØ Flange Ø Length Part No. Inner Ø OuterØ Flange Ø Length Part No.
d1 d2 d3 b1 Tolerance d1 d2 d3 b1 Tolerance
8 30 30 100 - 1,500 ±0.5 BBT-ES30-608-A500-70-ES New 10 30 30 100 - 1,000 ±0.5 BBT-CF30-6000-F180-10-ES New
8 30 30 50 - 1,500 ±0.5 BBT-ES30-608-B180-30-ES 12 30 30 100 - 1,000 ±0.5 BBT-CF30-6001-F180-10-ES New
8 30 30 100 - 1,500 ±0.5 BBT-ES30-608-F180-10-ES New 20 50 49.9 50 - 1,000 ±0.5 BBT-CF50-6004-S180-30-ES
10 30 30 100 - 1,500 ±0.5 BBT-ES30-6000-A500-70-ES New 20 100 100.0 50 - 1,000 ±0.5 BBT-CF100-6004-F180-30-ES
10 30 30 50 - 1,500 ±0.5 BBT-ES30-6000-B180-30-ES
10 30 30 100 - 1,500 ±0.5 BBT-ES30-6000-F180-10-ES New
12 30 30 100 - 1,500 ±0.5 BBT-ES30-6001-A500-70-ES New
12 30 30 50 - 1,500 ±0.5 BBT-ES30-6001-B180-30-ES
12 30 30 100 - 1,500 ±0.5 BBT-ES30-6001-F180-10-ES New

Order example: Order example:
BBT-ES30-6000-B180-30-ES, L = 200mm = stainless steel tube with 2 ball bearings with race material BBT-CF50-6004-S180-30-ES, L = 370mm = Carbon fibre tube with 2 ball bearings with race material
xirodur B180, xirodur B180 cage and stainless steel balls, total length 200mm xirodur S180, xirodur B180 cage and stainless steel balls, total length 370mm
®
®
®
®
Available from stock - Delivery time approx. 2-3 weeks Delivery time: approx. 3 weeks
With xirodur F180 as ESD version available upon request ASEAN 09/2023 ASEAN 09/2023 With xirodur F180 as ESD version available upon request
®
®
1064 Online tools and more information u www.igus-asean.com/xiros 3D CAD files, prices and delivery time online u www.igus-asean.com/xiros 1065
