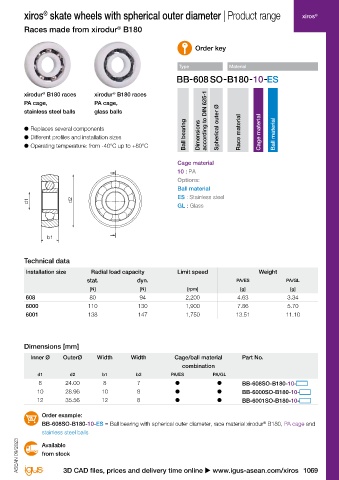

xiros ® xiros profiled radial deep groove ball bearings | Product range xiros skate wheels with spherical outer diameter | Product range xiros ®
Races made from xirodur B180 Races made from xirodur B180
®
®

Order key Order key

Type Material Design Type Material

®
®
®
xirodur B180 cage, xirodur B180 cage, xirodur B180 races xirodur B180 races
®
stainless steel balls stainless steel balls PA cage, PA cage,
Type 6000PP3 Type 608P6 stainless steel balls glass balls
● One-piece design according to DIN 625-1 Replaces several components according to DIN 625-1 Spherical outer Ø
● Replaces several components Ball bearing Dimensions Race material Cage material Ball material With shield ● Different profiles and installation sizes Ball bearing Dimensions Race material Cage material Ball material
● Different profiles and installation sizes Profile P6 ● Operating temperature: from -40°C up to +80°C
● Suitable for contact with food ●
● Operating temperature: from -40°C up to +80°C
Cage material Cage material
b2
Example "Profile PP3" Example "Profile P8" 30 : xirodur B180 10 : PA
®
Ball material Options:
ES : Stainless steel Ball material
Shield d2 ES : Stainless steel
C : One-sided shield d1 d1 GL : Glass d2

b1 b1

Technical data Technical data

Installation size Radial load capacity Limit speed Weight Installation size Radial load capacity Limit speed Weight
stat. B180/ES stat. dyn. PA/ES PA/GL
[N] [rpm] [g] [N] [N] [rpm] [g] [g]
608P6 80 2,200 3.96 608 80 94 2,200 4.63 3.34
608P8 140 1,800 23.37 6000 110 130 1,900 7.86 5.70
6000P8 110 2,200 7.14 6001 138 147 1,750 13.51 11.10
6000PP3 110 2,200 7.86
6201P9 160 1,600 27.05

Dimensions [mm] Dimensions [mm]

Inner Ø OuterØ Base Ø Groove Ø Width Part No. Inner Ø OuterØ Width Width Cage/ball material Part No.
d1 d2 d3 d4 b1 combination
8 24 20.5 6 7 BB-608P6-B180-30-ES-C d1 d2 b1 b2 PA/ES PA/GL
8 48 32 8 14 BB-608P8-B180-30-ES 8 24.00 8 7 BB-608SO-B180-10-
10 30 26 8 8 BB-6000P8-B180-30-ES-C 10 28.96 10 8 BB-6000SO-B180-10-
10 30 28 3 8 BB-6000PP3-B180-30-ES-C 12 35.56 12 8 BB-6001SO-B180-10-
12 60 43.5 9 12 BB-6201P9-B180-30-ES
Order example:
Order example: ®
BB-608P6-B180-30-ES = Radial deep groove ball bearing, Profil P8 with race material xirodur B180, BB-608SO-B180-10-ES = Ball bearing with spherical outer diameter, race material xirodur B180, PA cage and
®
xirodur B180 cage and stainless steel balls stainless steel balls
®
Available Available
from stock
from stock ASEAN 09/2023 ASEAN 09/2023
1068 Online tools and more information u www.igus-asean.com/xiros 3D CAD files, prices and delivery time online u www.igus-asean.com/xiros 1069
