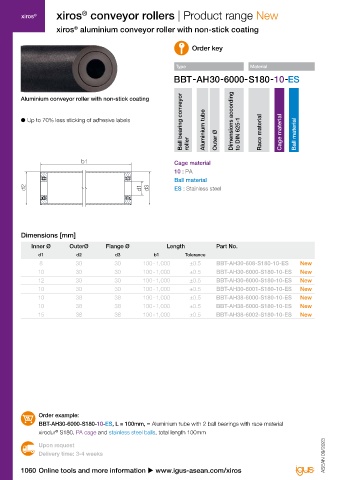

xiros ® xiros conveyor rollers | Product range New xiros conveyor rollers | Product range New xiros ®
xiros aluminium conveyor roller with non-stick coating xiros system solution - black anodised
®
®

Order key Order key

Type Material Type Material

Ball bearing conveyor Aluminium tube Outer Ø to DIN 625-1 Race material Cage material Ball material Ball bearing conveyor Aluminium tube Outer Ø to DIN 625-1 Race material Cage material Ball material
Aluminium conveyor roller with non-stick coating Aluminium tube with xirodur S180 ball bearing
®

● Up to 70% less sticking of adhesive labels Dimensions according ● Black design Dimensions according

roller
roller

b1 Cage material b1 Cage material Black
10 : PA 10 : PA
Ball material Ball material
d2 d1 d3 ES : Stainless steel d2 d1 d3 ES : Stainless steel

Dimensions [mm] Dimensions [mm]
Inner Ø OuterØ Flange Ø Length Part No. Inner Ø OuterØ Flange Ø Length Part No.
d1 d2 d3 b1 Tolerance d1 d2 d3 b1 Tolerance
8 30 30 100 - 1,000 ±0.5 BBT-AH30-608-S180-10-ES New 8 30 29.9 50 - 1,500 ±0.5 BBT-ACS30-608-S180-10-ES New
10 30 30 100 - 1,000 ±0.5 BBT-AH30-6000-S180-10-ES New 10 30 29.9 50 - 1,500 ±0.5 BBT-ACS30-6000-S180-10-ES New
12 30 30 100 - 1,000 ±0.5 BBT-AH30-6000-S180-10-ES New 12 30 29.9 50 - 1,500 ±0.5 BBT-ACS30-6001-S180-10-ES New
10 30 30 100 - 1,000 ±0.5 BBT-AH30-6001-S180-10-ES New 10 38 37.9 50 - 1,500 ±0.5 BBT-ACS38-6000-S180-10-ES New
10 38 38 100 - 1,000 ±0.5 BBT-AH38-6000-S180-10-ES New
10 38 38 100 - 1,000 ±0.5 BBT-AH38-6000-S180-10-ES New
15 38 38 100 - 1,000 ±0.5 BBT-AH38-6002-S180-10-ES New

Order example: Order example:
BBT-AH30-6000-S180-10-ES, L = 100mm, = Aluminium tube with 2 ball bearings with race material BBT-ACS30-6000-S180-10-ES, L = 200mm = Aluminium tube with 2 ball bearings with race material
xirodur S180, PA cage and stainless steel balls, total length 100mm xirodur S180, PA cage and stainless steel balls, total length 200mm
®
®
Upon request Upon request
Delivery time: 3-4 weeks ASEAN 09/2023 ASEAN 09/2023 Delivery time: 3-4 weeks

1060 Online tools and more information u www.igus-asean.com/xiros 3D CAD files, prices and delivery time online u www.igus-asean.com/xiros 1061
