xiros ® xiros conveyor rollers | Product range xiros conveyor rollers | Product range New xiros ®

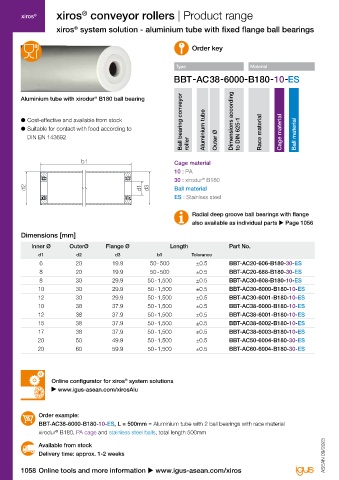

xiros system solution - aluminium tube with fixed flange ball bearings xiros system solution - with sandblasted surface
®
®

Order key Order key

Type Material Type Material

Ball bearing conveyor Ball bearing conveyor
Aluminium tube with xirodur B180 ball bearing Aluminium tube with xirodur B180 ball bearing
®
®

● Cost-effective and available from stock Dimensions according ● Up to 50% less air under the film than a smooth Dimensions according
● Suitable for contact with food according to Aluminium tube Race material Cage material aluminium surface Aluminium tube Race material Cage material
DIN EN 143692 roller Outer Ø to DIN 625-1 Ball material ● Up to 30% more grip compared to a smooth roller Black Outer Ø to DIN 625-1 Ball material
aluminium surface

b1 Cage material b1 Cage material
10 : PA 10 : PA
30 : xirodur B180 30 : xirodur B180
®
®
d2 d1 d3 Ball material d2 d1 d3 Ball material
ES : Stainless steel ES : Stainless steel

Radial deep groove ball bearings with flange
also available as individual parts u Page 1056

Dimensions [mm] Dimensions [mm]
Inner Ø OuterØ Flange Ø Length Part No. Inner Ø OuterØ Flange Ø Length Part No.
d1 d2 d3 b1 Tolerance d1 d2 d3 b1 Tolerance
6 20 19.9 50 - 500 ±0.5 BBT-AC20-606-B180-30-ES 6 20 20 100 - 1,000 ±0.5 BBT-SAC20-606-B180-30-ES New
8 20 19.9 50 - 500 ±0.5 BBT-AC20-688-B180-30-ES 8 20 20 100 - 1,000 ±0.5 BBT-SAC20-608-B180-30-ES New
8 30 29.9 50 - 1,500 ±0.5 BBT-AC30-608-B180-10-ES 8 30 30 100 - 1,000 ±0.5 BBT-SAC30-608-B180-10-ES New
10 30 29.9 50 - 1,500 ±0.5 BBT-AC30-6000-B180-10-ES 10 30 30 100 - 1,000 ±0.5 BBT-SAC30-6000-B180-10-ES New
12 30 29.9 50 - 1,500 ±0.5 BBT-AC30-6001-B180-10-ES 12 30 30 100 - 1,000 ±0.5 BBT-SAC30-6001-B180-10-ES New
10 38 37.9 50 - 1,500 ±0.5 BBT-AC38-6000-B180-10-ES 10 38 38 100 - 1,000 ±0.5 BBT-SAC38-6000-B180-10-ES New
12 38 37.9 50 - 1,500 ±0.5 BBT-AC38-6001-B180-10-ES 12 38 38 100 - 1,000 ±0.5 BBT-SAC38-6001-B180-10-ES New
15 38 37.9 50 - 1,500 ±0.5 BBT-AC38-6002-B180-10-ES 15 38 38 100 - 1,000 ±0.5 BBT-SAC38-6002-B180-10-ES New
17 38 37.9 50 - 1,500 ±0.5 BBT-AC38-6003-B180-10-ES 17 38 38 100 - 1,000 ±0.5 BBT-SAC38-6003-B180-10-ES New
20 50 49.9 50 - 1,500 ±0.5 BBT-AC50-6004-B180-30-ES 20 50 50 100 - 1,000 ±0.5 BBT-SAC50-6004-B180-30-ES New
20 60 59.9 50 - 1,500 ±0.5 BBT-AC60-6004-B180-30-ES 20 60 60 100 - 1,000 ±0.5 BBT-SAC60-6004-B180-30-ES New

Online configurator for xiros system solutions
®
www.igus-asean.com/xirosAlu

Order example: Order example:
BBT-AC38-6000-B180-10-ES, L = 500mm = Aluminium tube with 2 ball bearings with race material BBT-SAC20-606-B180-30-ES, L = 200mm = Aluminium tube, sandblasted, installation size 606 with
xirodur B180, PA cage and stainless steel balls, total length 500mm xirodur B180 fixed flange ball bearing, xirodur B180 cage and stainless steel balls, total length 200mm
®
®
®
Available from stock Available from stock
Delivery time: approx. 1-2 weeks ASEAN 09/2023 ASEAN 09/2023 Delivery time: approx. 3-4 weeks

1058 Online tools and more information u www.igus-asean.com/xiros 3D CAD files, prices and delivery time online u www.igus-asean.com/xiros 1059
