xiros ® xiros radial deep groove ball bearings | Product range xiros ®
Races made from xirodur A500 - for chemicals and heat up to +150°C
®

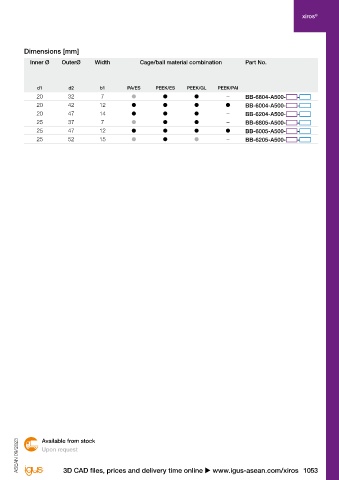

Technical data Dimensions [mm]

Installation Radial load capacity Limit Weight Inner Ø OuterØ Width Cage/ball material combination Part No.
size stat. dyn. stat. dyn. speed PA/ES PEEK/ES PEEK/GL PEEK/PAI
PEEK/PAI
[N] [N] [N] [N] [rpm] [g] [g] [g] [g] d1 d2 b1 PA/ES PEEK/ES PEEK/GL PEEK/PAI
6804 90 93 – – 1,560 – – – – 20 32 7 ● ● ● – BB-6804-A500- -
6004 234 250 62 88 1,700 19.7 19.7 13.2 11.7 20 42 12 ● ● ● ● BB-6004-A500- -
6204 234 238 – – 1,270 – – – – 20 47 14 ● ● ● – BB-6204-A500- -
6805 132 135 – – 980 – – – – 25 37 7 ● ● ● – BB-6805-A500- -
6005 405 420 – – 1,500 – – – – 25 47 12 ● ● ● ● BB-6005-A500- -
6205 422 440 – – 1,100 – – – – 25 52 15 ● ● ● – BB-6205-A500- -

Order example: Available from stock
BB-623-A500-10-ES = Radial deep groove ball bearing with race material xirodur A500, PA cage and stainless Upon request
®
steel balls ASEAN 09/2023 ASEAN 09/2023
1052 Online tools and more information u www.igus-asean.com/xiros 3D CAD files, prices and delivery time online u www.igus-asean.com/xiros 1053
