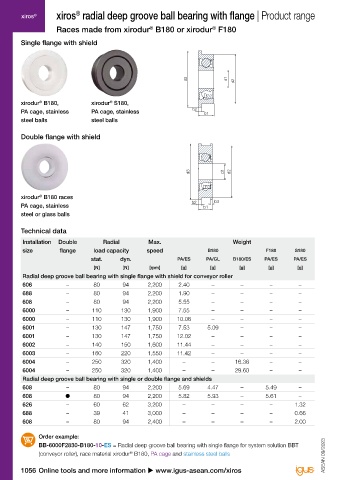

xiros ® xiros radial deep groove ball bearing with flange | Product range xiros ®
Races made from xirodur B180 or xirodur F180
®
®
Single flange with shield Order key Order key

with single flange with double flange

Type Material Type Material Design

xirodur B180, xirodur S180,
®
®
PA cage, stainless PA cage, stainless
Ball bearing to DIN 625-1 Single flange Outer Ø [mm] Race material Cage material Ball material Ball bearing to DIN 625-1 Double flange Race material Cage material Ball material Double shield
steel balls steel balls Dimensions according Dimensions according
Double flange with shield

Also available as complete system solution Flange Cage material
u Page 1058 F : Single flange 10 : PA
FF : Double flange 30 : xirodur B180
®
Race material Ball material
B180 : xirodur B180 ES : Stainless steel
®
xirodur B180 races ®
®
PA cage, stainless S180 : xirodur S180 GL : Glass
steel or glass balls Shield
C : With shield
CC : Double shield
Technical data Dimensions [mm]
Installation Double Radial Max. Weight Inner Ø Outer Width Cage/ball material Part No.
size flange load capacity speed B180 F180 S180 Ø combination
stat. dyn. PA/ES PA/GL B180/ES PA/ES PA/ES B180 S180
[N] [N] [rpm] [g] [g] [g] [g] [g] d1 d2 d3 b1 b2 PA/ES PA/GL B180/ES PA/ES
Radial deep groove ball bearing with single flange with shield for conveyor roller
606 – 80 94 2,200 2.40 – – – – 6.0 18.0 20.0 6.0 2.0 – – – BB-606F1820-B180-30-ES
688 – 80 94 2,200 1.90 – – – – 8.0 18.0 20.0 6.0 2.0 – – – BB-688F1820-B180-30-ES
608 – 80 94 2,200 5.55 – – – – 8.0 28.0 30.0 7.0 2.0 – – – BB-608F2830-B180-10-ES
6000 – 110 130 1,900 7.55 – – – – 10.0 28.0 30.0 9.0 2.0 – – – BB-6000F2830-B180-10-ES
6000 – 110 130 1,900 10.06 – – – – 10.0 35.0 38.0 9.0 2.0 – – – BB-6000F3538-B180-10-ES
6001 – 130 147 1,750 7.53 5.09 – – – 12.0 28.0 30.0 9.0 2.0 – – – BB-6001F2830-B180-10-ES
6001 – 130 147 1,750 12.02 – – – – 12.0 35.0 38.0 9.0 2.0 – – – BB-6001F3538-B180-10-ES
6002 – 140 150 1,600 11.44 – – – – 15.0 35.0 38.0 9.0 2.0 – – – BB-6002F3538-B180-10-ES
6003 – 160 220 1,550 11.42 – – – – 17.0 35.0 38.0 10.0 2.0 – – – BB-6003F3538-B180-10-ES
6004 – 250 320 1,400 – – 16.36 – – 20.0 46.0 50.0 12.0 2.0 – – – BB-6004F4650G-B180-30-ES
6004 – 250 320 1,400 – – 29.60 – – 20.0 56.0 60.0 12.0 2.0 – – – BB-6004F5660G-B180-30-ES
Radial deep groove ball bearing with single or double flange and shields
608 – 80 94 2,200 5.69 4.47 – 5.49 – 8.0 26.0 28.0 8.5 1.5 – – BB-608F-B180-10- -CC
608 80 94 2,200 5.82 5.93 – 5.61 – 8.0 26.0 28.0 7.0 1.5/1.0 (b3) – – BB-608FF-B180-10- -CC
626 – 60 62 3,200 – – – – 1.32 6.0 19.0 22.0 6.0 1.5 – – – BB-626F-S180-10-ES-C
688 – 39 41 3,000 – – – – 0.66 8.0 16.0 18.0 5.0 1.0 – – – BB-688F-S180-10-ES-C
608 – 80 94 2,400 – – – – 2.00 8.0 22.0 25.0 7.0 1.5 – – – BB-608F-S180-10-ES-C

Order example:
BB-6000F2830-B180-10-ES = Radial deep groove ball bearing with single flange for system solution BBT Available
(conveyor roller), race material xirodur B180, PA cage and stainless steel balls ASEAN 09/2023 ASEAN 09/2023 from stock
®
1056 Online tools and more information u www.igus-asean.com/xiros 3D CAD files, prices and delivery time online u www.igus-asean.com/xiros 1057
