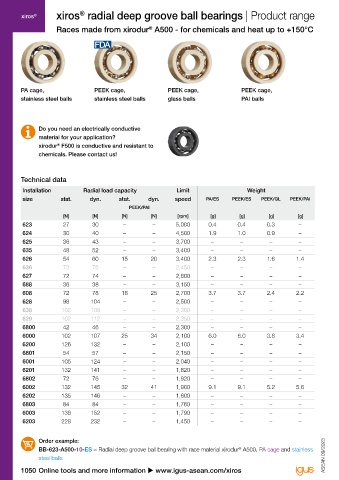

xiros ® xiros radial deep groove ball bearings | Product range xiros ®
Races made from xirodur A500 - for chemicals and heat up to +150°C
®

Order key

Type Material
d1

PA cage, PEEK cage, PEEK cage, PEEK cage, Options:
stainless steel balls stainless steel balls glass balls PAI balls Cage material
d2 b1 10 : PA
70 : PEEK

Do you need an electrically conductive according to DIN 625-1 Ball material
● Temperature and chemicals resistance ES : Stainless steel
material for your application?
● Operation temperature: from -100°C up to +150°C Dimensions Race material Cage material Ball material GL : Glass
®
xirodur F500 is conductive and resistant to Ball bearing
chemicals. Please contact us! PAI : Polyamide-

imide
Technical data Dimensions [mm]

Installation Radial load capacity Limit Weight Inner Ø OuterØ Width Cage/ball material combination Part No.
size stat. dyn. stat. dyn. speed PA/ES PEEK/ES PEEK/GL PEEK/PAI
PEEK/PAI
[N] [N] [N] [N] [rpm] [g] [g] [g] [g] d1 d2 b1 PA/ES PEEK/ES PEEK/GL PEEK/PAI
623 27 30 – – 5,000 0.4 0.4 0.3 – 3 10 4 ● ● ● – BB-623-A500- -
624 30 40 – – 4,500 1.9 1.0 0.9 – 4 13 5 ● ● ● – BB-624-A500- -
625 36 43 – – 3,700 – – – – 5 16 5 ● ● ● – BB-625-A500- -
635 48 52 – – 3,400 – – – – 5 19 6 ● ● ● – BB-635-A500- -
626 54 60 15 20 3,400 2.3 2.3 1.6 1.4 6 19 6 ● ● ● ● BB-626-A500- -
636 72 76 – – 2,450 – – – – 6 22 7 ● ● ● – BB-636-A500- -
627 72 74 – – 2,600 – – – – 7 22 7 ● ● ● – BB-627-A500- -
688 36 38 – – 3,150 – – – – 8 16 5 ● ● ● – BB-688-A500- -
608 72 78 18 25 2,700 3.7 3.7 2.4 2.2 8 22 7 ● ● ● ● BB-608-A500- -
628 98 104 – – 2,500 – – – – 8 24 8 ● ● ● – BB-628-A500- -
638 102 108 – – 2,300 – – – – 8 28 9 ● ● ● – BB-638-A500- -
629 102 112 – – 2,350 – – – – 9 26 8 ● ● ● – BB-629-A500- -
6800 42 46 – – 2,300 – – – – 10 19 5 ● ● ● – BB-6800-A500- -
6000 102 107 25 34 2,100 6.0 6.0 3.8 3.4 10 26 8 ● ● ● ● BB-6000-A500- -
6200 126 132 – – 2,100 – – – – 10 30 9 ● ● ● – BB-6200-A500- -
6801 54 57 – – 2,150 – – – – 12 21 5 ● ● ● – BB-6801-A500- -
6001 105 124 – – 2,040 – – – – 12 28 8 ● ● ● ● BB-6001-A500- -
6201 132 141 – – 1,820 – – – – 12 32 10 ● ● ● – BB-6201-A500- -
6802 72 76 – – 1,920 – – – – 15 24 5 ● ● ● – BB-6802-A500- -
6002 132 145 32 41 1,900 9.1 9.1 5.2 5.6 15 32 9 ● ● ● ● BB-6002-A500- -
6202 135 146 – – 1,600 – – – – 15 35 11 ● ● ● – BB-6202-A500- -
6803 84 84 – – 1,760 – – – – 17 26 5 ● ● ● – BB-6803-A500- -
6003 138 152 – – 1,790 – – – – 17 35 10 ● ● ● ● BB-6003-A500- -
6203 228 232 – – 1,450 – – – – 17 40 12 ● ● ● – BB-6203-A500- -

Order example: Available from stock
BB-623-A500-10-ES = Radial deep groove ball bearing with race material xirodur A500, PA cage and stainless Upon request
®
steel balls ASEAN 09/2023 ASEAN 09/2023
1050 Online tools and more information u www.igus-asean.com/xiros 3D CAD files, prices and delivery time online u www.igus-asean.com/xiros 1051
