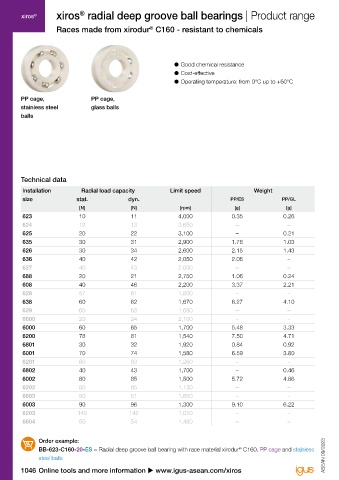

xiros ® xiros radial deep groove ball bearings | Product range xiros ®
Races made from xirodur C160 - resistant to chemicals
®

Order key

● Good chemical resistance Type Material
● Cost-effective d1
● Operating temperature: from 0°C up to +60°C

PP cage, PP cage,
stainless steel glass balls d2 b1 Cage material
balls according to DIN 625-1 20 : PP
Ball bearing Dimensions Race material Cage material Ball material Ball material
Options:

ES : Stainless steel
GL : Glass

Technical data Dimensions [mm]

Installation Radial load capacity Limit speed Weight Inner Ø OuterØ Width Cage/ball material Part No.
size stat. dyn. PP/ES PP/GL combination
[N] [N] [rpm] [g] [g] d1 d2 b1 PP/ES PP/GL
623 10 11 4,000 0.35 0.26 3 10 4 BB-623-C160-20-
624 12 13 3,650 – – 4 13 5 ● ● BB-624-C160-20-
625 20 22 3,100 – 0.21 5 16 5 ● BB-625-C160-20-
635 30 31 2,900 1.76 1.03 5 19 6 ● ● BB-635-C160-20-
626 30 34 2,600 2.15 1.43 6 19 6 BB-626-C160-20-
636 40 42 2,050 2.06 – 6 22 7 ● BB-636-C160-20-
627 40 43 2,000 – – 7 22 7 ● ● BB-627-C160-20-
688 20 21 2,750 1.06 0.24 8 16 5 ● ● BB-688-C160-20-
608 40 46 2,200 3.37 2.21 8 22 7 BB-608-C160-20-
628 57 61 1,800 – – 8 24 8 ● ● BB-628-C160-20-
638 60 62 1,670 6.27 4.10 8 28 9 ● ● BB-638-C160-20-
629 60 63 1,680 – – 9 26 8 ● ● BB-629-C160-20-
6800 20 24 2,100 – – 10 19 5 ● ● BB-6800-C160-20-
6000 60 65 1,700 5.48 3.33 10 26 8 BB-6000-C160-20-
6200 78 81 1,540 7.50 4.71 10 30 9 ● ● BB-6200-C160-20-
6801 30 32 1,920 0.84 0.92 12 21 5 ● ● BB-6801-C160-20-
6001 70 74 1,580 6.59 3.80 12 28 8 BB-6001-C160-20-
6201 80 83 1,260 – – 12 32 10 ● ● BB-6201-C160-20-
6802 40 43 1,700 – 0.46 15 24 5 ● ● BB-6802-C160-20-
6002 80 85 1,500 5.72 4.86 15 32 9 BB-6002-C160-20-
6202 80 85 1,130 – – 15 35 11 ● ● BB-6202-C160-20-
6803 50 51 1,650 – – 17 26 5 ● ● BB-6803-C160-20-
6003 90 96 1,300 9.10 6.22 17 35 10 BB-6003-C160-20-
6203 140 142 1,010 – – 17 40 12 ● ● BB-6203-C160-20-
6804 50 54 1,480 – – 20 32 7 ● ● BB-6804-C160-20-

Order example: Available from stock
BB-623-C160-20-ES = Radial deep groove ball bearing with race material xirodur C160, PP cage and stainless Upon request
®
steel balls ASEAN 09/2023 ASEAN 09/2023
1046 Online tools and more information u www.igus-asean.com/xiros 3D CAD files, prices and delivery time online u www.igus-asean.com/xiros 1047
