xiros ® xiros radial deep groove ball bearings | Product range xiros ®
Races made from xirodur B180 - cost-effective standard
®

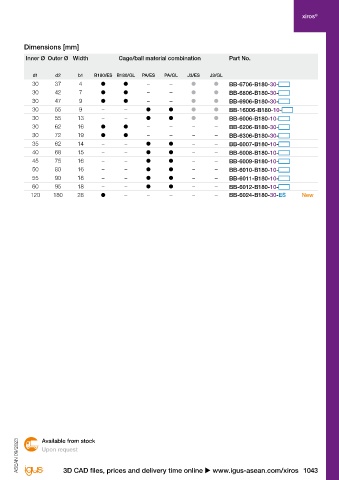

Technical data Dimensions [mm]

Installation Radial load capacity Max. Weight Inner Ø Outer Ø Width Cage/ball material combination Part No.
size stat. dyn. speed B180/ES B180/GL PA/ES PA/GL J3/ES J3/GL
[N] [N] [rpm] [g] [g] [g] [g] [g] [g] d1 d2 b1 B180/ES B180/GL PA/ES PA/GL J3/ES J3/GL
6706 34 41 1,000 1.76 1.59 – – 1.76 1.59 30 37 4 ● ● – – ● ● BB-6706-B180-30-
6806 160 162 900 4.49 1.82 – – 4.49 1.82 30 42 7 ● ● – – ● ● BB-6806-B180-30-
6906 190 193 850 13.15 10.13 – – 13.15 10.13 30 47 9 ● ● – – ● ● BB-6906-B180-30-
16006 380 420 900 – – 28.53 17.33 – – 30 55 9 – – ● ● ● ● BB-16006-B180-10-
6006 380 400 1,000 – – 34.15 22.70 – – 30 55 13 – – ● ● ● ● BB-6006-B180-10-
6206 480 520 850 55.89 39.73 – – 55.89 39.73 30 62 16 ● ● – – – – BB-6206-B180-30-
6306 520 660 750 27.00 8.52 – – 27.00 8.52 30 72 19 ● ● – – – – BB-6306-B180-30-
6007 480 520 850 – – 47.29 30.71 – – 35 62 14 – – ● ● – – BB-6007-B180-10-
6008 520 660 750 – – 54.84 38.73 – – 40 68 15 – – ● ● – – BB-6008-B180-10-
6009 660 690 650 – – 33.52 57.52 – – 45 75 16 – – ● ● – – BB-6009-B180-10-
6010 740 780 600 – – 82.33 54.00 – – 50 80 16 – – ● ● – – BB-6010-B180-10-
6011 930 950 550 – – 119.64 75.80 – – 55 90 18 – – ● ● – – BB-6011-B180-10-
6012 990 1,050 500 – – 126.66 80.54 – – 60 95 18 – – ● ● – – BB-6012-B180-10-
6024 2,300 2,350 250 578.8 – – – 578.8 – 120 180 28 ● – – – – – BB-6024-B180-30-ES New

Order example: Available from stock
BB-6706-B180-30-ES = Thin ring bearing with race material xirodur B180, xirodur B180 cage and stainless Upon request
®
®
steel balls ASEAN 09/2023 ASEAN 09/2023
