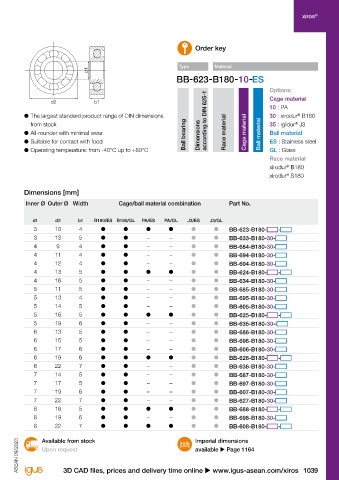

xiros ® xiros radial deep groove ball bearings | Product range xiros ®
Races made from xirodur B180 - cost-effective standard
®

Order key

Type Material
d1

xirodur B180 cage, xirodur B180 cage, PA cage, PA cage, Options:
®
®
stainless steel balls glass balls stainless steel balls glass balls Cage material
d2 b1 10 : PA
● The largest standard product range of DIN dimensions 30 : xirodur B180
®
from stock according to DIN 625-1 35 : iglidur J3
®
● All-rounder with minimal wear Ball bearing Dimensions Race material Cage material Ball material Ball material
● Suitable for contact with food ES : Stainless steel
● Operating temperature: from -40°C up to +80°C GL : Glass
iglidur J3 cage, Also available with S180 races for visible parts Race material
®
stainless steel balls (xirodur S180 and PA cage), upon request xirodur B180
®
®
xirodur S180
®
Technical data Dimensions [mm]

Installation Radial load capacity Max. Weight Inner Ø Outer Ø Width Cage/ball material combination Part No.
size stat. dyn. speed B180/ES B180/GL PA/ES PA/GL J3/ES J3/GL
[N] [N] [rpm] [g] [g] [g] [g] [g] [g] d1 d2 b1 B180/ES B180/GL PA/ES PA/GL J3/ES J3/GL
623 25 34 4,500 0.37 0.31 0.40 0.32 0.37 0.31 3 10 4 ● ● ● ● ● ● BB-623-B180- -
633 33 45 4,000 0.83 0.64 – – 0.83 0.64 3 13 5 ● ● – – ● ● BB-633-B180-30-
684 10 11 4,600 0.26 0.20 – – 0.26 0.20 4 9 4 ● ● – – ● ● BB-684-B180-30-
694 12 14 4,000 0.42 0.35 – – 0.42 0.35 4 11 4 ● ● – – ● ● BB-694-B180-30-
604 30 32 3,600 0.65 0.45 – – 0.65 0.45 4 12 4 ● ● – – ● ● BB-604-B180-30-
624 33 45 4,000 0.79 0.60 0.85 0.62 0.79 0.60 4 13 5 ● ● ● ● ● ● BB-624-B180- -
634 40 40 3,700 1.50 1.00 – – 1.50 1.00 4 16 5 ● ● – – ● ● BB-634-B180-30-
685 12 14 4,000 0.45 0.37 – – 0.45 0.37 5 11 5 ● ● – – ● ● BB-685-B180-30-
695 29 30 3,500 0.73 0.53 – – 0.73 0.53 5 13 4 ● ● – – ● ● BB-695-B180-30-
605 32 33 3,500 0.96 0.77 – – 0.96 0.77 5 14 5 ● ● – – ● ● BB-605-B180-30-
625 40 40 3,700 1.42 0.96 1.55 1.01 1.42 0.96 5 16 5 ● ● ● ● ● ● BB-625-B180- -
635 41 43 3,200 2.59 1.76 – – 2.59 1.76 5 19 6 ● ● – – ● ● BB-635-B180-30-i
686 29 30 3,500 0.76 0.57 – – 0.76 0.57 6 13 5 ● ● – – ● ● BB-686-B180-30-
696 29 30 3,500 1.05 0.85 – – 1.05 0.85 6 15 5 ● ● – – ● ● BB-696-B180-30-
606 50 53 3,300 1.89 1.25 – – 1.89 1.25 6 17 6 ● ● – – ● ● BB-606-B180-30-
626 60 62 3,200 2.06 1.60 2.44 1.69 2.06 1.60 6 19 6 ● ● ● ● ● ● BB-626-B180- -
636 80 94 2,200 3.96 2.71 – – 3.96 2.71 6 22 7 ● ● – – ● ● BB-636-B180-30-
687 32 34 3,200 0.80 0.61 – – 0.80 0.61 7 14 5 ● ● – – ● ● BB-687-B180-30-
697 39 41 3,000 1.47 1.05 – – 1.47 1.05 7 17 5 ● ● – – ● ● BB-697-B180-30-
607 41 43 3,200 1.97 1.52 – – 1.97 1.52 7 19 6 ● ● – – ● ● BB-607-B180-30-
627 80 94 2,400 3.85 2.60 – – 3.85 2.60 7 22 7 ● ● – – ● ● BB-627-B180-30-
688 39 41 3,000 1.17 0.76 1.19 0.75 1.17 0.76 8 16 5 ● ● ● ● ● ● BB-688-B180- -
698 60 62 3,200 2.34 1.52 – – 2.34 1.52 8 19 6 ● ● – – ● ● BB-698-B180-30-
608 80 94 2,400 3.76 2.51 3.79 2.54 3.76 2.51 8 22 7 ● ● ● ● ● ● BB-608-B180- -

Order example: Available from stock Imperial dimensions
BB-623-B180-10-ES = Radial deep groove ball bearing with race material xirodur B180, PA cage and stainless Upon request available u Page 1164
®
steel balls ASEAN 09/2023 ASEAN 09/2023
1038 Online tools and more information u www.igus-asean.com/xiros 3D CAD files, prices and delivery time online u www.igus-asean.com/xiros 1039
