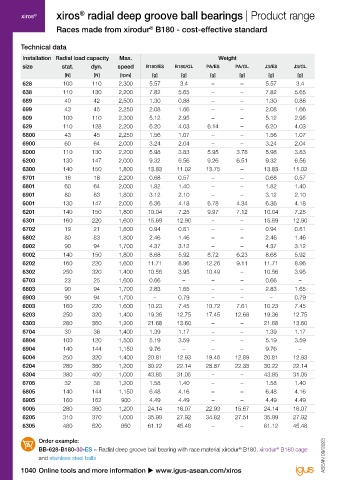

xiros ® xiros radial deep groove ball bearings | Product range xiros ®
Races made from xirodur B180 - cost-effective standard
®

Technical data Dimensions [mm]

Installation Radial load capacity Max. Weight Inner Ø Outer Ø Width Cage/ball material combination Part No.
size stat. dyn. speed B180/ES B180/GL PA/ES PA/GL J3/ES J3/GL
[N] [N] [rpm] [g] [g] [g] [g] [g] [g] d1 d2 b1 B180/ES B180/GL PA/ES PA/GL J3/ES J3/GL
628 100 110 2,300 5.57 3.4 – – 5.57 3.4 8 24 8 ● ● – ● ● ● BB-628-B180-30-
638 110 130 2,200 7.82 5.65 – – 7.82 5.65 8 28 9 ● ● – – ● ● BB-638-B180-30-
689 40 42 2,500 1.30 0.88 – – 1.30 0.88 9 17 5 ● ● – – ● ● BB-689-B180-30-
699 43 45 2,250 2.08 1.66 – – 2.08 1.66 9 20 6 ● ● – – ● ● BB-699-B180-30-
609 100 110 2,300 5.12 2.95 – – 5.12 2.95 9 24 7 ● ● – – ● ● BB-609-B180-30-
629 110 128 2,200 6.20 4.03 6.14 – 6.20 4.03 9 26 8 ● ● ● – ● ● BB-629-B180- -
6800 43 45 2,250 1.56 1.07 – – 1.56 1.07 10 19 5 ● ● – – ● ● BB-6800-B180-30-
6900 60 64 2,000 3.24 2.04 – – 3.24 2.04 10 22 6 ● ● – – ● ● BB-6900-B180-30-
6000 110 130 2,200 5.98 3.83 5.95 3.78 5.98 3.83 10 26 8 ● ● ● ● ● ● BB-6000-B180- -
6200 130 147 2,000 9.32 6.56 9.26 6.51 9.32 6.56 10 30 9 ● ● ● ● ● ● BB-6200-B180- -
6300 140 150 1,800 13.83 11.02 13.75 – 13.83 11.02 10 35 11 ● ● ● – ● ● BB-6300-B180- -
6701 16 18 2,200 0.68 0.57 – – 0.68 0.57 12 18 4 ● ● – – ● ● BB-6701-B180-30-
6801 60 64 2,000 1.82 1.40 – – 1.82 1.40 12 21 5 ● ● – – ● ● BB-6801-B180-30-
6901 80 83 1,800 3.12 2.10 – – 3.12 2.10 12 24 6 ● ● – – ● ● BB-6901-B180-30-
6001 130 147 2,000 6.36 4.18 6.78 4.34 6.36 4.18 12 28 8 ● ● ● ● ● ● BB-6001-B180- -
6201 140 150 1,800 10.04 7.25 9.97 7.12 10.04 7.25 12 32 10 ● ● ● ● ● ● BB-6201-B180- -
6301 160 220 1,600 15.69 12.90 – – 15.69 12.90 12 37 12 ● ● – – ● ● BB-6301-B180-30-
6702 19 21 1,800 0.94 0.81 – – 0.94 0.81 15 21 4 ● ● – – ● ● BB-6702-B180-30-
6802 80 83 1,800 2.46 1.46 – – 2.46 1.46 15 24 5 ● ● – – ● ● BB-6802-B180-30-
6902 90 94 1,700 4.37 3.12 – – 4.37 3.12 15 28 7 ● ● – – ● ● BB-6902-B180-30-
6002 140 150 1,800 8.68 5.92 8.72 6.23 8.68 5.92 15 32 9 ● ● ● ● ● ● BB-6002-B180- -
6202 160 220 1,600 11.71 8.96 12.26 9.11 11.71 8.96 15 35 11 ● ● ● ● ● ● BB-6202-B180- -
6302 250 320 1,400 10.56 3.95 10.49 – 10.56 3.95 15 42 13 ● ● ● – ● ● BB-6302-B180- -
6703 23 25 1,600 0.66 – – – 0.66 – 17 23 4 ● – – – ● ● BB-6703-B180-30-ES
6803 90 94 1,700 2.83 1.65 – – 2.83 1.65 17 26 5 ● ● – – ● ● BB-6803-B180-30-
6903 90 94 1,700 – 0.79 – – – 0.79 17 30 7 – ● – – ● ● BB-6903-B180-30-GL
6003 160 220 1,600 10.23 7.45 10.72 7.61 10.23 7.45 17 35 10 ● ● ● ● ● ● BB-6003-B180- -
6203 250 320 1,400 19.36 12.75 17.45 12.68 19.36 12.75 17 40 12 ● ● ● ● ● ● BB-6203-B180- -
6303 280 360 1,200 21.68 13.60 – – 21.68 13.60 17 47 14 ● ● – – ● ● BB-6303-B180-30-
6704 30 36 1,400 1.39 1.17 – – 1.39 1.17 20 27 4 ● ● – – ● ● BB-6704-B180-30-
6804 100 120 1,500 5.19 3.59 – – 5.19 3.59 20 32 7 ● ● – – ● ● BB-6804-B180-30-
6904 140 144 1,150 9.76 – – – 9.76 – 20 37 9 ● – – – ● ● BB-6904-B180-30-ES
6004 250 320 1,400 20.81 12.93 19.46 12.89 20.81 12.93 20 42 12 ● ● ● ● ● ● BB-6004-B180- -
6204 280 360 1,200 30.22 22.14 28.87 22.33 30.22 22.14 20 47 14 ● ● ● ● ● ● BB-6204-B180- -
6304 380 400 1,000 43.85 31.05 – – 43.85 31.05 20 52 15 ● ● – – ● ● BB-6304-B180-30-
6705 32 38 1,200 1.58 1.40 – – 1.58 1.40 25 32 4 ● ● – – ● ● BB-6705-B180-30-
6805 140 144 1,150 6.48 4.16 – – 6.48 4.16 25 37 7 ● ● – – ● ● BB-6805-B180-30-
6905 160 162 900 4.49 4.49 – – 4.49 4.49 25 42 9 ● ● – – ● ● BB-6905-B180-30-
6005 280 360 1,200 24.14 16.07 22.93 15.67 24.14 16.07 25 47 12 ● ● ● ● ● ● BB-6005-B180- -
6205 310 370 1,000 35.99 27.92 34.82 27.51 35.99 27.92 25 52 15 ● ● ● ● ● ● BB-6205-B180- -
6305 480 520 850 61.12 45.48 – – 61.12 45.48 25 62 17 ● ● – – ● ● BB-6305-B180-30-

Order example: Available from stock
BB-628-B180-30-ES = Radial deep groove ball bearing with race material xirodur B180, xirodur B180 cage Upon request
®
®
and stainless steel balls ASEAN 09/2023 ASEAN 09/2023
1040 Online tools and more information u www.igus-asean.com/xiros 3D CAD files, prices and delivery time online u www.igus-asean.com/xiros 1041
