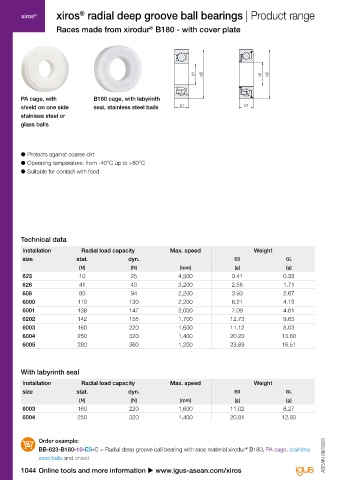

xiros ® xiros radial deep groove ball bearings | Product range xiros ®
Races made from xirodur B180 - with cover plate
®

Order key

Type Material Options:
d1 d2 d1 d2 Cage material
10 : PA
30 : xirodur B180
®
PA cage, with B180 cage, with labyrinth Ball material
shield on one side seal, stainless steel balls b1 b1 ES : Stainless steel
stainless steel or GL : Glass
Ball bearing Dimensions Race material Cage material Ball material With shield C : One-sided shield
glass balls according to DIN 625-1 Shield or labyrinth seal

LCC : Labyrinth seal

● Protects against coarse dirt
● Operating temperature: from -40°C up to +80°C
● Suitable for contact with food

Technical data Dimensions [mm]
Installation Radial load capacity Max. speed Weight Inner Ø Outer Ø Width Cage/ball material Part No.
size stat. dyn. ES GL combination
[N] [N] [rpm] [g] [g] d1 d2 b1 PA/ES PA/GL
623 10 25 4,500 0.41 0.33 3 10 4 ● ● BB-623-B180-10- -C
626 41 43 3,200 2.56 1.71 6 19 6 ● ● BB-626-B180-10- -C
608 80 94 2,200 3.93 2.67 8 22 7 ● ● BB-608-B180-10- -C
6000 110 130 2,200 6.21 4.15 10 26 8 ● ● BB-6000-B180-10- -C
6001 138 147 2,000 7.09 4.61 12 28 8 ● ● BB-6001-B180-10- -C
6202 142 155 1,700 12.73 9.63 15 35 11 ● ● BB-6202-B180-10- -C
6003 160 220 1,600 11.12 8.03 17 35 10 ● ● BB-6003-B180-10- -C
6004 250 320 1,400 20.20 13.60 20 42 12 ● ● BB-6004-B180-10- -C
6005 280 360 1,200 23.89 16.51 25 47 12 ● ● BB-6005-B180-10- -C

With labyrinth seal Dimensions [mm]
Installation Radial load capacity Max. speed Weight Inner Ø Outer Ø Width Cage/ball material Part No.
size stat. dyn. ES GL combination
[N] [N] [rpm] [g] [g] d1 d2 b1 B180/ES B180/GL
6003 160 220 1,600 11.02 8.27 17 35 10 ● ● BB-6003-B180-30- -LCC
6004 250 320 1,400 20.81 12.93 20 24 12 ● ● BB-6004-B180-30- -LCC

Order example: Available
BB-623-B180-10-ES-C = Radial deep groove ball bearing with race material xirodur B180, PA cage, stainless from stock
®
steel balls and shield ASEAN 09/2023 ASEAN 09/2023
