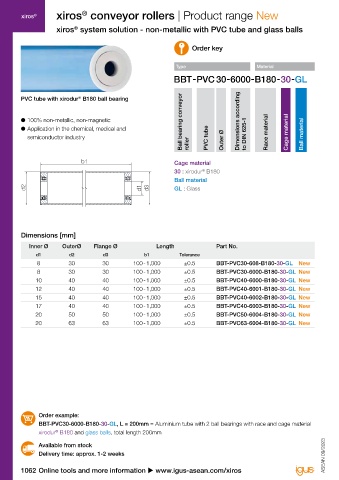

xiros ® xiros conveyor rollers | Product range New xiros conveyor rollers | Product range xiros ®
xiros system solution - non-metallic with PVC tube and glass balls xiros system solution - plastic for food contact
®
®

Order key Order key

Type Material Type Material

Ball bearing conveyor Ball bearing conveyor
PVC tube with xirodur B180 ball bearing PVC tube with xirodur B180 ball bearing
®
®

● 100% non-metallic, non-magnetic Dimensions according ● Components for use in food in accordance Dimensions according
● Application in the chemical, medical and Race material Cage material with 10/2011/EU and 1935/2004/EG Race material Cage material
semiconductor industry roller PVC tube Outer Ø to DIN 625-1 Ball material roller PVC tube Outer Ø to DIN 625-1 Ball material

b1 Cage material b1 Cage material
A
30 : xirodur B180 30 : xirodur B180
®
®
Ball material Ball material
d2 d1 d3 GL : Glass d2 d1 d3 ES : Stainless steel

A

Dimensions [mm] Dimensions [mm]
Inner Ø OuterØ Flange Ø Length Part No. Inner Ø OuterØ Flange Ø Length Part No.
d1 d2 d3 b1 Tolerance d1 d2 d3 b1 Tolerance
8 30 30 100 - 1,000 ±0.5 BBT-PVC30-608-B180-30-GL New 8 30 30 50 - 1,000 ±0.5 BBT-PVC30-608-B180-30-ES
8 30 30 100 - 1,000 ±0.5 BBT-PVC30-6000-B180-30-GL New 10 30 30 50 - 1,000 ±0.5 BBT-PVC30-6000-B180-30-ES
10 40 40 100 - 1,000 ±0.5 BBT-PVC40-6000-B180-30-GL New 10 40 40 50 - 1,000 ±0.5 BBT-PVC40-6000-B180-30-ES
12 40 40 100 - 1,000 ±0.5 BBT-PVC40-6001-B180-30-GL New 12 40 40 50 - 1,000 ±0.5 BBT-PVC40-6001-B180-30-ES
15 40 40 100 - 1,000 ±0.5 BBT-PVC40-6002-B180-30-GL New 15 40 40 50 - 1,000 ±0.5 BBT-PVC40-6002-B180-30-ES
17 40 40 100 - 1,000 ±0.5 BBT-PVC40-6003-B180-30-GL New 17 40 40 50 - 1,000 ±0.5 BBT-PVC40-6003-B180-30-ES
20 50 50 100 - 1,000 ±0.5 BBT-PVC50-6004-B180-30-GL New 20 50 50 50 - 1,000 ±0.5 BBT-PVC50-6004-B180-30-ES
20 63 63 100 - 1,000 ±0.5 BBT-PVC63-6004-B180-30-GL New 20 63 63 50 - 1,000 ±0.5 BBT-PVC63-6004-B180-30-ES

Order example: Order example:
BBT-PVC30-6000-B180-30-GL, L = 200mm = Aluminium tube with 2 ball bearings with race and cage material BBT-PVC50-6004-B180-30-ES, L = 200mm = PVC tube with 2 ball bearings with race material xirodur B180,
®
xirodur B180 and glass balls, total length 200mm xirodur B180 cage and stainless steel balls, total length 200mm
®
®
Available from stock Available from stock
Delivery time: approx. 1-2 weeks ASEAN 09/2023 ASEAN 09/2023 Delivery time: approx. 1-2 weeks

1062 Online tools and more information u www.igus-asean.com/xiros 3D CAD files, prices and delivery time online u www.igus-asean.com/xiros 1063
