iglidur  G1                                                                                                                                                                                                              iglidur  G1
                                                                                                                                                                                                                                     ®
             ®
         +180 °C                                                                                                                                                                                                                  +180 °C
          91MPa                                                                                                                                                                                                                   91MPa

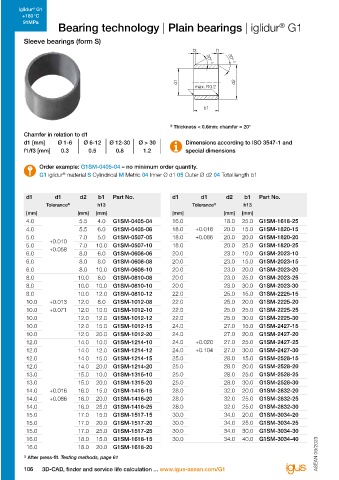

                      Bearing technology | Plain bearings | iglidur  G1                                                             Product range
                                                                                                    ®
          Sleeve bearings (form S)                                                                                                  d1         d1      d2     b1   Part No.             d1        d1       d2    b1   Part No.
                                                                     f3      f1                                                             Tolerance 3)      h13                              Tolerance 3)      h13
                                                                                                                                    [mm]               [mm]  [mm]                       [mm]              [mm]  [mm]
                                                                                  30° ²
                                                                          30° ²
                                                                                                                                    32.0               36.0  20.0  G1SM-3236-20         40.0              44.0  50.0  G1SM-4044-50
                                                                                                                                    32.0               36.0  30.0  G1SM-3236-30         45.0              50.0  20.0  G1SM-4550-20
                                                                d1                  d2                                              32.0               36.0  40.0  G1SM-3236-40         45.0              50.0  30.0  G1SM-4550-30
                                                                      max. R0 2.
                                                                                                                                    35.0               39.0  20.0  G1SM-3539-20         45.0              50.0  40.0  G1SM-4550-40
                                                                                                                                    35.0     +0.025    39.0  30.0  G1SM-3539-30         45.0    +0.025    50.0  50.0  G1SM-4550-50
                                                                         b1                                                         35.0     +0.125    39.0  40.0  G1SM-3539-40         50.0    +0.125    55.0  20.0  G1SM-5055-20
                                                                                                                                    35.0               39.0  50.0  G1SM-3539-50         50.0              55.0  30.0  G1SM-5055-30
                                                                                                                                    40.0               44.0  20.0  G1SM-4044-20         50.0              55.0  40.0  G1SM-5055-40
                                                             2)  Thickness < 0.6mm: chamfer = 20°
          Chamfer in relation to d1                                                                                                 40.0               44.0  30.0  G1SM-4044-30         50.0              55.0  50.0  G1SM-5055-50
          d1 [mm]     Ø 1-6    Ø 6-12   Ø 12-30   Ø > 30           Dimensions according to ISO 3547-1 and                            40.0              44.0  40.0  G1SM-4044-40         50.0              55.0  60.0  G1SM-5055-60
          f1/f3 [mm]   0.3      0.5       0.8       1.2            special dimensions                                               3)  After press-fit. Testing methods, page 61


               Order example: G1SM-0405-04 – no minimum order quantity.
               G1 iglidur  material S Cylindrical M Metric 04 Inner Ø d1 05 Outer Ø d2 04 Total length b1
                       ®

           d1        d1       d2    b1   Part No.             d1        d1       d2    b1   Part No.
                  Tolerance 3)      h13                              Tolerance 3)      h13
           [mm]              [mm]  [mm]                       [mm]              [mm]  [mm]
           4.0               5.5    4.0  G1SM-0405-04         16.0              18.0  25.0  G1SM-1618-25
           4.0               5.5    6.0  G1SM-0405-06         18.0    +0.016    20.0  15.0  G1SM-1820-15
           5.0     +0.010    7.0    5.0  G1SM-0507-05         18.0    +0.086    20.0  20.0  G1SM-1820-20
           5.0     +0.058    7.0   10.0  G1SM-0507-10         18.0              20.0  25.0  G1SM-1820-25
           6.0               8.0    6.0  G1SM-0608-06         20.0              23.0  10.0  G1SM-2023-10
           6.0               8.0    8.0  G1SM-0608-08         20.0              23.0  15.0  G1SM-2023-15
           6.0               8.0   10.0  G1SM-0608-10         20.0              23.0  20.0  G1SM-2023-20
           8.0               10.0   8.0  G1SM-0810-08         20.0              23.0  25.0  G1SM-2023-25
           8.0               10.0  10.0  G1SM-0810-10         20.0              23.0  30.0  G1SM-2023-30
           8.0               10.0  12.0  G1SM-0810-12         22.0              25.0  15.0  G1SM-2225-15
           10.0    +0.013    12.0   8.0  G1SM-1012-08         22.0              25.0  20.0  G1SM-2225-20
           10.0    +0.071    12.0  10.0  G1SM-1012-10         22.0              25.0  25.0  G1SM-2225-25
           10.0              12.0  12.0  G1SM-1012-12         22.0              25.0  30.0  G1SM-2225-30
           10.0              12.0  15.0  G1SM-1012-15         24.0              27.0  15.0  G1SM-2427-15
           10.0              12.0  20.0  G1SM-1012-20         24.0              27.0  20.0  G1SM-2427-20
           12.0              14.0  10.0  G1SM-1214-10         24.0    +0.020    27.0  25.0  G1SM-2427-25
           12.0              14.0  12.0  G1SM-1214-12         24.0    +0.104    27.0  30.0  G1SM-2427-30
           12.0              14.0  15.0  G1SM-1214-15         25.0              28.0  15.0  G1SM-2528-15
           12.0              14.0  20.0  G1SM-1214-20         25.0              28.0  20.0  G1SM-2528-20                                 Available from stock                               Ordering note
           13.0              15.0  10.0  G1SM-1315-10         25.0              28.0  25.0  G1SM-2528-25                                 Detailed information about delivery time online.   Our prices are scaled according to order
           13.0              15.0  20.0  G1SM-1315-20         25.0              28.0  30.0  G1SM-2528-30                                 www.igus-asean.com/24                              quantities, current prices can be found online.
           14.0    +0.016    16.0  15.0  G1SM-1416-15         28.0              32.0  20.0  G1SM-2832-20                                 Order online
           14.0    +0.086    16.0  20.0  G1SM-1416-20         28.0              32.0   25.0  G1SM-2832-25                                including delivery times, prices, online tools      Discount scaling
           14.0              16.0  25.0  G1SM-1416-25         28.0              32.0   25.0  G1SM-2832-30                                www.igus-asean.com/G1                               1-9           50-99         500-999
           15.0              17.0  15.0  G1SM-1517-15         30.0              34.0   20.0  G1SM-3034-20                                                                                    10-24         100-199       1,000-2,499
           15.0              17.0  20.0  G1SM-1517-20         30.0              34.0   25.0  G1SM-3034-25                                                                                    25-49         200-499       2,500-4,999
           15.0              17.0  25.0  G1SM-1517-25         30.0              34.0   30.0  G1SM-3034-30                                                                                   No minimum order value.
           16.0              18.0  15.0  G1SM-1618-15         30.0              34.0   40.0  G1SM-3034-40                                                                                   No low-quantity surcharges.
           16.0              18.0  20.0  G1SM-1618-20                                                                                                                                       Free shipping within Germany for orders

          3)  After press-fit. Testing methods, page 61                                                          ASEAN 09/2023   ASEAN 09/2023                                              above €150.
          106   3D-CAD, finder and service life calculation ... www.igus-asean.com/G1                                                                           Lubrication-free made easy ... from stock ... no minimum order quantity  107
