Page 110 - IGUS Bearing

iglidur G1 iglidur G1
®
®
+180 °C +180 °C
91MPa 91MPa

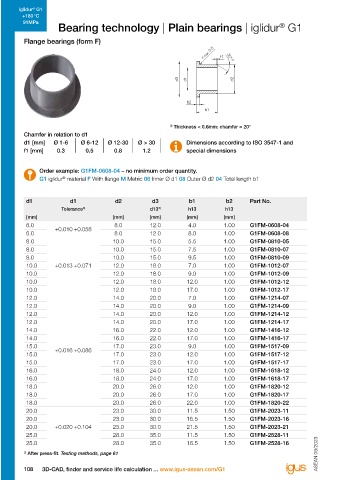

Bearing technology | Plain bearings | iglidur G1 Product range
®
Flange bearings (form F) d1 d1 d2 d3 b1 b2 Part No.
r max. 0.5 Tolerance 3) d13 3) h13 h13
f1
[mm] [mm] [mm] [mm] [mm]
30°
25.0 28.0 35.0 21.5 1.50 G1FM-2528-21
30.0 +0.020 +0.104 34.0 42.0 16.0 2.00 G1FM-3034-16
d3 d1 d2
30.0 34.0 42.0 26.0 2.00 G1FM-3034-26
35.0 39.0 47.0 16.0 2.00 G1FM-3539-16
35.0 39.0 47.0 26.0 2.00 G1FM-3539-26
b2
b1 40.0 +0.025 +0.125 44.0 52.0 30.0 2.00 G1FM-4044-30
40.0 44.0 52.0 40.0 2.00 G1FM-4044-40
45.0 50.0 58.0 50.0 2.00 G1FM-4550-50
2) Thickness < 0.6mm: chamfer = 20°
Chamfer in relation to d1
d1 [mm] Ø 1-6 Ø 6-12 Ø 12-30 Ø > 30 Dimensions according to ISO 3547-1 and
f1 [mm] 0.3 0.5 0.8 1.2 special dimensions

Order example: G1FM-0608-04 – no minimum order quantity.
G1 iglidur material F With flange M Metric 06 Inner Ø d1 08 Outer Ø d2 04 Total length b1
®

d1 d1 d2 d3 b1 b2 Part No.
Tolerance 3) d13 3) h13 h13
[mm] [mm] [mm] [mm] [mm]
6.0 +0.010 +0.058 8.0 12.0 4.0 1.00 G1FM-0608-04
6.0 8.0 12.0 8.0 1.00 G1FM-0608-08
8.0 10.0 15.0 5.5 1.00 G1FM-0810-05
8.0 10.0 15.0 7.5 1.00 G1FM-0810-07
8.0 10.0 15.0 9.5 1.00 G1FM-0810-09
10.0 +0.013 +0.071 12.0 18.0 7.0 1.00 G1FM-1012-07
10.0 12.0 18.0 9.0 1.00 G1FM-1012-09
10.0 12.0 18.0 12.0 1.00 G1FM-1012-12
10.0 12.0 18.0 17.0 1.00 G1FM-1012-17
12.0 14.0 20.0 7.0 1.00 G1FM-1214-07
12.0 14.0 20.0 9.0 1.00 G1FM-1214-09
12.0 14.0 20.0 12.0 1.00 G1FM-1214-12
12.0 14.0 20.0 17.0 1.00 G1FM-1214-17
14.0 16.0 22.0 12.0 1.00 G1FM-1416-12
14.0 16.0 22.0 17.0 1.00 G1FM-1416-17
15.0 +0.016 +0.086 17.0 23.0 9.0 1.00 G1FM-1517-09
15.0 17.0 23.0 12.0 1.00 G1FM-1517-12
15.0 17.0 23.0 17.0 1.00 G1FM-1517-17 Available from stock Ordering note
16.0 18.0 24.0 12.0 1.00 G1FM-1618-12 Detailed information about delivery time online. Our prices are scaled according to order
16.0 18.0 24.0 17.0 1.00 G1FM-1618-17 www.igus-asean.com/24 quantities, current prices can be found online.
18.0 20.0 26.0 12.0 1.00 G1FM-1820-12
18.0 20.0 26.0 17.0 1.00 G1FM-1820-17 Order online Discount scaling
18.0 20.0 26.0 22.0 1.00 G1FM-1820-22 including delivery times, prices, online tools 1-9 50-99 500-999
20.0 23.0 30.0 11.5 1.50 G1FM-2023-11 www.igus-asean.com/G1 10-24 100-199 1,000-2,499
20.0 23.0 30.0 16.5 1.50 G1FM-2023-16 25-49 200-499 2,500-4,999
20.0 +0.020 +0.104 23.0 30.0 21.5 1.50 G1FM-2023-21
25.0 28.0 35.0 11.5 1.50 G1FM-2528-11 No minimum order value.
ASEAN 09/2023 ASEAN 09/2023 above €150.
25.0 28.0 35.0 16.5 1.50 G1FM-2528-16 No low-quantity surcharges.
3) After press-fit. Testing methods, page 61 Free shipping within Germany for orders

108 3D-CAD, finder and service life calculation ... www.igus-asean.com/G1 Lubrication-free made easy ... from stock ... no minimum order quantity 109
