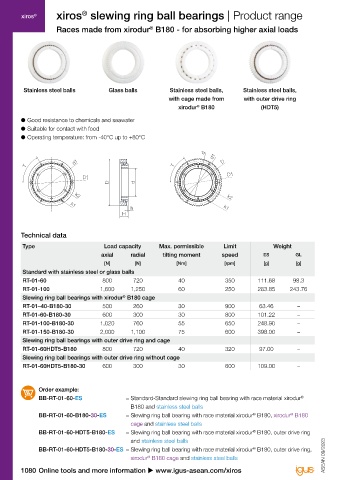

xiros ® xiros slewing ring ball bearings | Product range xiros ®
Races made from xirodur B180 - for absorbing higher axial loads
®

Order key Order key with cage

Type Type Material Type Type Material

Stainless steel balls Glass balls Stainless steel balls, Stainless steel balls,
with cage made from with outer drive ring
xirodur B180 (HDT5)
®
● Good resistance to chemicals and seawater
● Suitable for contact with food Slewing ring ball Slewing ring ball Race material Cage material
● Operating temperature: from -40°C up to +80°C Ball bearing bearings Type 01 Inner Ø Ball material Ball bearing bearings Type 01 Inner Ø Ball material

d d1
d1 D Options:
T T
D1 Cage material
D1 30 : xirodur B180
®
D d
Ball material
k2
k2 ES : Stainless steel
k1 GL : Glass
h k1

H

Technical data Dimensions [mm]
Type Load capacity Max. permissible Limit Weight d d1 D D1 h H T k1 k2 Part No.
axial radial tilting moment speed ES GL
[N] [N] [Nm] [rpm] [g] [g]
Standard with stainless steel or glass balls Standard with stainless steel or glass balls
RT-01-60 800 720 40 350 111.68 98.3 60 68 100 90 2.5 17.5 60 3.3 3.3 BB-RT-01-60-
RT-01-100 1,600 1,250 60 250 283.85 243.76 100 110 160 150 5.0 20.0 60 5.2 5.2 BB-RT-01-100-
®
Slewing ring ball bearings with xirodur B180 cage Slewing ring ball bearings with xirodur B180 cage
®
RT-01–40-B180-30 500 260 30 900 63.46 – 40 47 80 72 2.5 15 60 3.3 3.2 BB-RT-01-40-B180-30-ES
RT-01-60-B180-30 600 300 30 800 101.22 – 60 68 100 90 2.5 17.5 60 3.3 3.3 BB-RT-01-60-B180-30-ES
RT-01-100-B180-30 1,020 760 55 650 248.90 – 100 110 160 150 5.0 20 60 5.2 5.2 BB-RT-01-100-B180-30-ES
RT-01-150-B180-30 2,000 1,100 75 600 398.00 – 150 163 210 197 5.0 22.5 60 6.1 6.1 BB-RT-01-150-B180-30-ES
Slewing ring ball bearings with outer drive ring and cage Slewing ring ball bearings with outer drive ring and cage
RT-01-60HDT5-B180 800 720 40 320 97.00 – 60 68 100 90 2.5 17.5 60 M3 3.3 BB-RT-01-60HDT5-B180-30-ES
Slewing ring ball bearings with outer drive ring without cage Slewing ring ball bearings with outer drive ring without cage
RT-01-60HDT5-B180-30 600 300 30 800 109.00 – 60 68 100 90 2.5 17.5 60 M3 3.3 BB-RT-01-60HDT5-B180-30-ES

Order example:
BB-RT-01-60-ES = Standard-Standard slewing ring ball bearing with race material xirodur
®
B180 and stainless steel balls
BB-RT-01-60-B180-30-ES = Slewing ring ball bearing with race material xirodur B180, xirodur B180
®
®
cage and stainless steel balls
BB-RT-01-60-HDT5-B180-ES = Slewing ring ball bearing with race material xirodur B180, outer drive ring
®
and stainless steel balls Available
BB-RT-01-60-HDT5-B180-30-ES = Slewing ring ball bearing with race material xirodur B180, outer drive ring, from stock
®
xirodur B180 cage and stainless steel balls ASEAN 09/2023 ASEAN 09/2023
®
