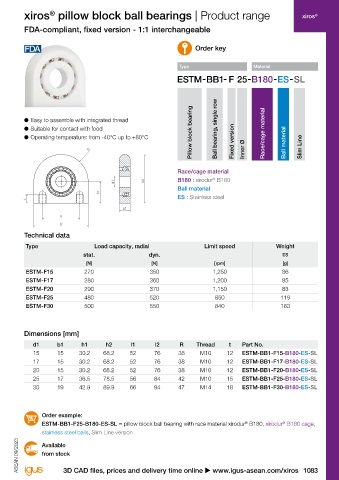

xiros ® xiros fixed flange ball bearings | Product range xiros pillow block ball bearings | Product range xiros ®
FDA-compliant, fixed version FDA-compliant, fixed version - 1:1 interchangeable
Order key Order key
Type Material Type Material
xirodur B180 cage
®
Stainless steel balls
● For less precise holding fixtures Fixed flange ball bearings according to DIN 625-1 ● Easy to assemble with integrated thread Pillow block bearing Ball bearing, single row Race/cage material
Suitable for contact with food
●
Ball bearing Dimensions Housing material Cage material Ball material ● Operating temperature: from -40°C up to +80°C Fixed version Inner Ø Ball material Slim Line
R
d3 dh d1 d2 Cage material Race/cage material
30 : xirodur B180 d1 h2 B180 : xirodur B180
®
®
Ball material Ball material
h2 ES : Stainless steel h1 ES : Stainless steel
b2 t
h1 b1 b1
l1
l2
Technical data Technical data
Installation Radial load capacity Limit speed Weight Type Load capacity, radial Limit speed Weight
size stat. dyn. B180/ES stat. dyn. ES
[N] [N] [rpm] [g] [N] [N] [rpm] [g]
626 60 62 3,200 2.89 ESTM-F15 270 350 1,250 86
608 80 92 2,200 3.65 ESTM-F17 280 360 1,200 85
6000 110 130 2,200 6.49 ESTM-F20 290 370 1,150 83
6001 130 147 2,000 7.68 ESTM-F25 480 520 850 119
6003 160 220 1,600 11.13 ESTM-F30 500 550 840 163
6004 250 320 1,400 25.06
Dimensions [mm] Dimensions [mm]
d1 d2 d3 b1 b2 DH h1 h2 Part No. d1 b1 h1 h2 l1 l2 R Thread t Part No.
6 19 33.5 6 2 25 3 4.5 BB-FL-626-B180-30-ES 15 15 30.2 68.2 52 76 38 M10 12 ESTM-BB1-F15-B180-ES-SL
8 20.7 35.8 7 2 26.8 4 5 BB-FL-608-B180-30-ES 17 15 30.2 68.2 52 76 38 M10 12 ESTM-BB1-F17-B180-ES-SL
10 26 41 8 2 32 4 5 BB-FL-6000-B180-30-ES 20 15 30.2 68.2 52 76 38 M10 12 ESTM-BB1-F20-B180-ES-SL
12 28 44 8 2 35 4 5 BB-FL-6001-B180-30-ES 25 17 36.5 78.5 56 84 42 M10 15 ESTM-BB1-F25-B180-ES-SL
17 35 54 10 2.5 44 4 6 BB-FL-6003-B180-30-ES 30 19 42.9 89.9 66 94 47 M14 18 ESTM-BB1-F30-B180-ES-SL
20 42 84 12 4 63 8 12 BB-FL-6004-B180-30-ES
Order example: Order example:
BB-FL-608-B180-30-ES = Fixed flange ball bearing with housing material xirodur B180, xirodur B180 cage ESTM-BB1-F25-B180-ES-SL = pillow block ball bearing with race material xirodur B180, xirodur B180 cage,
®
®
®
®
and stainless steel balls stainless steel balls, Slim Line version
Available Available
from stock ASEAN 09/2023 ASEAN 09/2023 from stock
1082 Online tools and more information u www.igus-asean.com/xiros 3D CAD files, prices and delivery time online u www.igus-asean.com/xiros 1083
