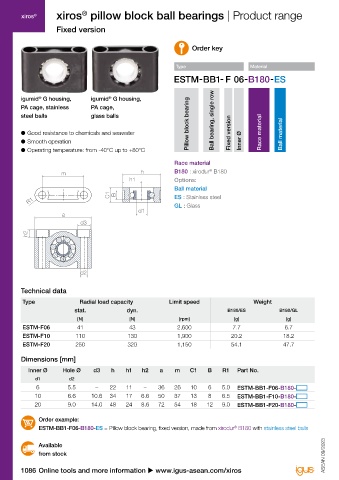

xiros ® xiros pillow block ball bearings | Product range xiros pillow block ball bearings | Product range xiros ®
Fixed version Pivoting version

Order key Order key

Type Material Type Material

igumid G housing, igumid G housing, igumid G housing, igumid G housing,
®
®
®
®
PA cage, stainless PA cage, PA cage, stainless PA cage,
steel balls glass balls Pillow block bearing Ball bearing, single row steel balls Glass balls Pillow block bearing Ball bearing, single row
● Good resistance to chemicals and seawater Fixed version Race material Ball material ● Self-aligning Fixed version Race material Ball material
● Smooth operation Inner Ø ● Good resistance to chemicals and seawater Inner Ø
● Operating temperature: from -40°C up to +80°C ● Spherical ball bearing
● Operating temperature: from -40°C up to +80°C
Race material Race material
®
®
m h B180 : xirodur B180 h B180 : xirodur B180
h1 Options: m h1 Options:
Ball material Ball material
C1 B ES : Stainless steel C1 B ES : Stainless steel
R1 GL : Glass R1 GL : Glass
d1 d1
a a
d3 d3

h2 h2

d2 d2

Technical data Technical data
Type Radial load capacity Limit speed Weight Type Radial load capacity Limit speed Weight
stat. dyn. B180/ES B180/GL stat. dyn. B180/ES B180/GL
[N] [N] [rpm] [g] [g] [N] [N] [rpm] [g] [g]
ESTM-F06 41 43 2,600 7.7 6.7 ESTM-P08 80 94 2,200 19.6 18.2
ESTM-F10 110 130 1,900 20.2 18.2 ESTM-P10 110 130 1,900 32.9 30.3
ESTM-F20 250 320 1,150 54.1 47.7 ESTM-P12 130 147 1,750 54.8 52.8

Dimensions [mm] Dimensions [mm]
Inner Ø Hole Ø d3 h h1 h2 a m C1 B R1 Part No. Inner Ø Hole Ø d3 h h1 h2 a m C1 B R1 Max. pivot Part No.
d1 d2 d1 d2 angle
6 5.5 – 22 11 – 36 26 10 6 5.0 ESTM-BB1-F06-B180- 8 6.6 10.6 34 17 6.4 50 37 13 8 6.5 ±5° ESTM-BB1-P08-B180-
10 6.6 10.6 34 17 6.6 50 37 13 8 6.5 ESTM-BB1-F10-B180- 10 9.0 14.0 40 20 8.6 62 46 16 10 8 ±5° ESTM-BB1-P10-B180-
20 9.0 14.0 48 24 8.6 72 54 18 12 9.0 ESTM-BB1-F20-B180- 12 9.0 14.0 48 24 8.6 72 54 18 12 9 ±5° ESTM-BB1-P12-B180-

Order example: Order example:
ESTM-BB1-F06-B180-ES = Pillow block bearing, fixed version, made from xirodur B180 with stainless steel balls ESTM-BB1-P08-B180-ES = Pillow block bearing, pivoting version, made from xirodur B180 with stainless steel balls
®
®
Available Available
from stock ASEAN 09/2023 ASEAN 09/2023 from stock

1086 Online tools and more information u www.igus-asean.com/xiros 3D CAD files, prices and delivery time online u www.igus-asean.com/xiros 1087
