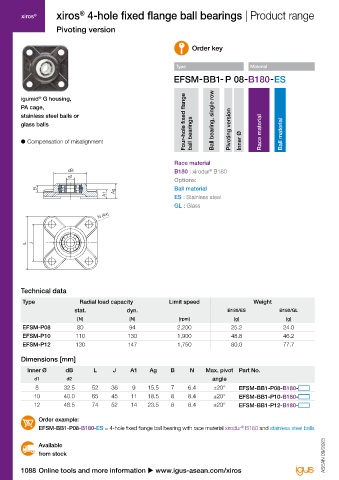

xiros ® xiros 4-hole fixed flange ball bearings | Product range xiros 2-hole fixed flange ball bearings | Product range xiros ®
Pivoting version Pivoting version

Order key Order key

Type Material Type Material

igumid G housing, igumid G housing,
®
®
PA cage, PA cage,
stainless steel balls or stainless steel balls or
glass balls Four-hole fixed flange Ball bearing, single row Pivoting version Race material glass balls 2-hole fixed flange Ball bearing, single row Pivoting version Race material

● Compensation of misalignment ball bearings Inner Ø Ball material ● Trouble-free readjustment thanks to elongated holes ball bearings Inner Ø Ball material
Precise alignment of the bearings not necessary
●
dB
d1
Race material dB Race material
dB B180 : xirodur B180 B b1 d1 B180 : xirodur B180
®
®
d1 A1 Ag
Options: Options:
B b1
B Ag Ball material A1 Ag Ball material
A1 ES : Stainless steel J ES : Stainless steel
GL : Glass GL : Glass
J
N (4x)

N L
L J
N L

H

H
Technical data Technical data
Type Radial load capacity Limit speed Weight Type Radial load capacity Limit speed Weight
stat. dyn. B180/ES B180/GL stat. dyn. B180/ES B180/GL
[N] [N] [rpm] [g] [g] [N] [N] [rpm] [g] [g]
EFSM-P08 80 94 2,200 25.2 24.0 EFOM-P08 80 94 2,200 19.5 18.1
EFSM-P10 110 130 1,900 48.8 46.2 EFOM-P10 110 130 1,900 36.3 33.6
EFSM-P12 130 147 1,750 80.0 77.7 EFOM-P12 130 147 1,750 61.7 59.4

Dimensions [mm] Dimensions [mm]
Inner Ø dB L J A1 Ag B N Max. pivot Part No. Inner Ø b1 dB H L J A1 Ag B N Max. pivot Part No.
d1 d2 angle d1 d2 angle
8 32.5 52 36 9 15.5 7 6.4 ±20° EFSM-BB1-P08-B180- 8 7 32.0 72.6 38 53 10 15.25 8.0 6.4 x 10.1 ±20° EFOM-BB1-P08-B180-
10 40.0 65 45 11 18.5 8 8.4 ±20° EFSM-BB1-P10-B180- 10 8 40.0 89.1 47 65 11 18.5 9.9 8.4 x 12.5 ±20° EFOM-BB1-P10-B180-
12 48.5 74 52 14 23.5 8 8.4 ±20° EFSM-BB1-P12-B180- 12 9 48.5 101.0 58.5 75 14 23.5 12.0 8.4 x 12.5 ±20° EFOM-BB1-P12-B180-

Order example: Order example:
EFSM-BB1-P08-B180-ES = 4-hole fixed flange ball bearing with race material xirodur B180 and stainless steel balls EFOM-BB1-P08-B180-ES = 2-hole fixed flange ball bearing with race material xirodur B180 and stainless steel balls
®
®
Available Available
from stock ASEAN 09/2023 ASEAN 09/2023 from stock

1088 Online tools and more information u www.igus-asean.com/xiros 3D CAD files, prices and delivery time online u www.igus-asean.com/xiros 1089
