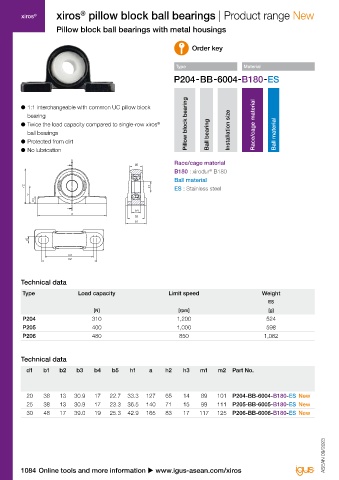

xiros ® xiros pillow block ball bearings | Product range New xiros pillow block ball bearings | Product range New xiros ®
Pillow block ball bearings with metal housings Spherical insert bearing for pillow block ball bearing

Order key Order key

Type Material Type Material

● 1:1 interchangeable with common UC pillow block ● One-to-one replacement of metallic ball bearings in
bearing common UC pillow block sizes
● Twice the load capacity compared to single-row xiros Pillow block bearing Race/cage material ● Smooth operation Race/cage material
®
ball bearings Ball bearing Installation size Ball material ● Operating temperature: from -40°C up to +80°C Ball bearing Installation size Ball material Double row
● Protected from dirt Spherical
● No lubrication
A SR
Race/cage material Race/cage material
b5
B180 : xirodur B180 B180 : xirodur B180
®
®
Ball material Ball material
h2 d1 ES : Stainless steel d2 d1 ES : Stainless steel
h1
h3
b4
a
b3
b1 A
b1
b2

m1
m2

Technical data Technical data

Type Load capacity Limit speed Weight d1 d2 b1 Load capacity Limit speed Weight Part No.
ES ES
[N] [rpm] [g] [N] [rpm] [g]
P204 310 1,200 524 20 65 38 310 1,200 44.9 BB-6004SO-B180-ES-D New
P205 400 1,000 598 25 71 38 400 1,000 58.4 BB-6005SO-B180-ES-D New
P206 480 850 1,082 30 83 48 480 850 82.3 BB-6006SO-B180-ES-D New

Technical data
d1 b1 b2 b3 b4 b5 h1 a h2 h3 m1 m2 Part No.

20 38 13 30.9 17 22.7 33.3 127 65 14 89 101 P204-BB-6004-B180-ES New
25 38 13 30.9 17 23.3 36.5 140 71 15 99 111 P205-BB-6005-B180-ES New
30 48 17 39.0 19 25.3 42.9 165 83 17 117 125 P206-BB-6006-B180-ES New

ASEAN 09/2023 ASEAN 09/2023

1084 Online tools and more information u www.igus-asean.com/xiros 3D CAD files, prices and delivery time online u www.igus-asean.com/xiros 1085
