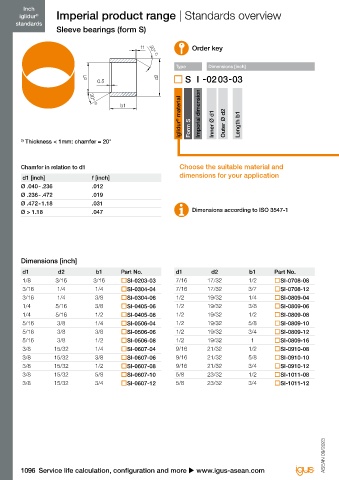

iglidur Imperial product range | Standards overview Imperial product range | Standards overview iglidur
®
®
standards standards
Sleeve bearings (form S) Absolute flexibility: all iglidur standard sizes available from stock
®
f1 30° Order key G The classic all-rounder
P210 Specialist for pivoting, rolling applications and more
Type Dimensions [inch]
P The cost-effective outdoor all-rounder
d1 d2
0.5
J The versatile endurance runner

iglidur ® material Form S Imperial dimension Inner Ø d1 Outer Ø d2 Length b1 J350 The new endurance runner: specialist for pivoting applications and pulsating loads
30°
b1 W(300) The classic endurance runner up to 30MPa
J3
Endurance runner with high dimensional stability at high temperature

2) Thickness < 1mm: chamfer = 20° X The chemical and temperature specialist
Z Long service life under extreme conditions

H1 Endurance runner with high media resistance
Chamfer in relation to d1 Choose the suitable material and
d1 [inch] f [inch] dimensions for your application H370 Long service life under water
Ø .040 - .236 .012 A181 The universal bearing for food contact
Ø .236 - .472 .019
Ø .472 - 1.18 .031 A350 The endurance runner at higher temperatures in the food sector
Ø > 1.18 .047 Dimensions according to ISO 3547-1 A500 The media and temperature specialist in the food sector

Q2 The durable heavy-duty bearing

Dimensions [inch] Dimensions [inch]

d1 d2 b1 Part No. d1 d2 b1 Part No. d1 d2 b1 Part No. d1 d2 b1 Part No.
1/8 3/16 3/16 SI-0203-03 7/16 17/32 1/2 SI-0708-08 5/8 23/32 1 SI-1011-16 1 1/4 1 13/32 3/4 SI-2022-12
3/16 1/4 1/4 SI-0304-04 7/16 17/32 3/7 SI-0708-12 3/4 7/8 1/2 SI-1214-08 1 1/4 1 13/32 1 SI-2022-16
3/16 1/4 3/8 SI-0304-06 1/2 19/32 1/4 SI-0809-04 3/4 7/8 3/4 SI-1214-12 1 1/4 1 13/32 1 1/4 SI-2022-20
1/4 5/16 3/8 SI-0405-06 1/2 19/32 3/8 SI-0809-06 3/4 7/8 1 SI-1214-16 1 1/2 1 21/32 1 SI-2426-16
1/4 5/16 1/2 SI-0405-08 1/2 19/32 1/2 SI-0809-08 7/8 1 1/2 SI-1416-08 1 1/2 1 21/32 1 1/2 SI-2426-24
5/16 3/8 1/4 SI-0506-04 1/2 19/32 5/8 SI-0809-10 7/8 1 3/4 SI-1416-12 1 5/8 1 25/32 1 SI-2629-16
5/16 3/8 3/8 SI-0506-06 1/2 19/32 3/4 SI-0809-12 7/8 1 1 SI-1416-16 1 5/8 1 25/32 1 1/2 SI-2629-24
5/16 3/8 1/2 SI-0506-08 1/2 19/32 1 SI-0809-16 1 1 1/8 1/2 SI-1618-08 1 3/4 1 15/16 1 SI-2831-16
3/8 15/32 1/4 SI-0607-04 9/16 21/32 1/2 SI-0910-08 1 1 1/8 3/4 SI-1618-12 1 3/4 1 15/16 2 SI-2831-32
3/8 15/32 3/8 SI-0607-06 9/16 21/32 5/8 SI-0910-10 1 1 1/8 1 SI-1618-16 1 7/8 2 1/16 1 SI-3033-16
3/8 15/32 1/2 SI-0607-08 9/16 21/32 3/4 SI-0910-12 1 1/8 1 9/32 3/4 SI-1820-12 1 7/8 2 1/16 2 SI-3033-32
3/8 15/32 5/8 SI-0607-10 5/8 23/32 1/2 SI-1011-08 1 1/8 1 9/32 1 SI-1820-16 2 2 3/16 1 SI-3235-16
3/8 15/32 3/4 SI-0607-12 5/8 23/32 3/4 SI-1011-12 1 1/8 1 9/32 1 1/4 SI-1820-20 2 2 3/16 2 SI-3235-32
