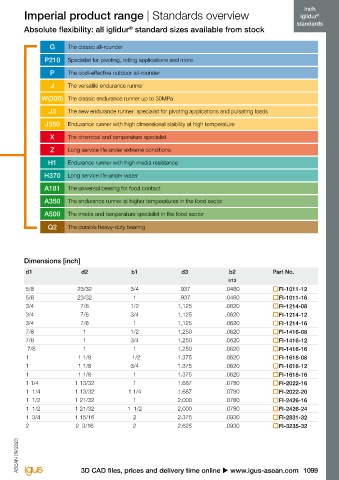

iglidur Imperial product range | Standards overview Imperial product range | Standards overview iglidur
®
®
standards standards
Flange bearings (form F) Absolute flexibility: all iglidur standard sizes available from stock
®
r max. 0.5 f1 30° Order key G The classic all-rounder

P210 Specialist for pivoting, rolling applications and more
Type Dimensions [inch]
P The cost-effective outdoor all-rounder
d3 d1 d2
J The versatile endurance runner

iglidur ® material Imperial dimension

J3
The new endurance runner: specialist for pivoting applications and pulsating loads
b2 W(300) The classic endurance runner up to 30MPa
b1 Form F Inner Ø d1 Outer Ø d2 Length b1 J350 Endurance runner with high dimensional stability at high temperature

2) Thickness < 1mm: chamfer = 20° X The chemical and temperature specialist
Z Long service life under extreme conditions

H1 Endurance runner with high media resistance
Chamfer in relation to d1 Choose the suitable material and
d1 [inch] f [inch] dimensions for your application H370 Long service life under water
Ø .040 - .236 .012 A181 The universal bearing for food contact
Ø .236 – .472 .019
Ø .472 - 1.18 .031 A350 The endurance runner at higher temperatures in the food sector
Ø > 1.18 .047 Dimensions according to ISO 3547-1 A500 The media and temperature specialist in the food sector

Q2 The durable heavy-duty bearing

Dimensions [inch] Dimensions [inch]

d1 d2 b1 d3 b2 Part No. d1 d2 b1 d3 b2 Part No.
h13 h13
1/8 3/16 3/16 .312 .0320 FI-0203-03 5/8 23/32 3/4 .937 .0460 FI-1011-12
3/16 1/4 1/4 .375 .0320 FI-0304-04 5/8 23/32 1 .937 .0460 FI-1011-16
1/4 5/16 3/8 .430 .0320 FI-0405-06 3/4 7/8 1/2 1,125 .0620 FI-1214-08
1/4 5/16 1/2 .500 .0320 FI-0405-08 3/4 7/8 3/4 1,125 .0620 FI-1214-12
5/16 3/8 1/4 .500 .0320 FI-0506-04 3/4 7/8 1 1,125 .0620 FI-1214-16
5/16 3/8 3/8 .500 .0320 FI-0506-06 7/8 1 1/2 1,250 .0620 FI-1416-08
5/16 3/8 1/2 .500 .0320 FI-0506-08 7/8 1 3/4 1,250 .0620 FI-1416-12
3/8 15/32 1/4 .687 .0460 FI-0607-04 7/8 1 1 1,250 .0620 FI-1416-16
3/8 15/32 3/8 .687 .0460 FI-0607-06 1 1 1/8 1/2 1.375 .0620 FI-1618-08
3/8 15/32 1/2 .687 .0460 FI-0607-08 1 1 1/8 3/4 1.375 .0620 FI-1618-12
3/8 15/32 3/4 .687 .0460 FI-0607-12 1 1 1/8 1 1.375 .0620 FI-1618-16
7/16 17/32 1/2 .750 .0460 FI-0708-08 1 1/4 1 13/32 1 1.687 .0780 FI-2022-16
1/2 19/32 1/4 .875 .0460 FI-0809-04 1 1/4 1 13/32 1 1/4 1.687 .0780 FI-2022-20
1/2 19/32 3/8 .875 .0460 FI-0809-06 1 1/2 1 21/32 1 2,000 .0780 FI-2426-16
1/2 19/32 1/2 .875 .0460 FI-0809-08 1 1/2 1 21/32 1 1/2 2,000 .0780 FI-2426-24
1/2 19/32 3/4 .875 .0460 FI-0809-12 1 3/4 1 15/16 2 2.375 .0930 FI-2831-32
1/2 19/32 1 .875 .0460 FI-0809-16 2 2 3/16 2 2.625 .0930 FI-3235-32
5/8 23/32 1/2 .937 .0460 FI-1011-08
ASEAN 09/2023 ASEAN 09/2023

1098 Service life calculation, configuration and more u www.igus-asean.com 3D CAD files, prices and delivery time online u www.igus-asean.com 1099
