P. 1105
Inch Inch
®
®

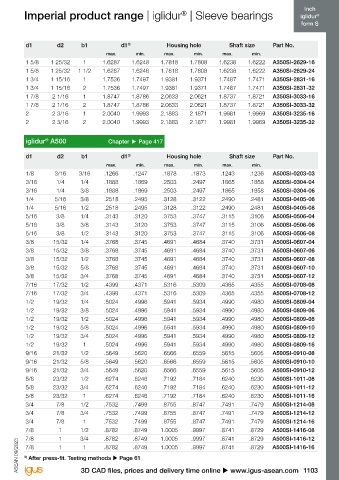

iglidur Imperial product range | iglidur | Sleeve bearings Imperial product range | iglidur | Sleeve bearings iglidur
®
®
form S form S
iglidur A350 Chapter Page 409 d1 d2 b1 d1 3) Housing hole Shaft size Part No.
®
max. min. max. min. max. min.
d1 d2 b1 d1 3) Housing hole Shaft size Part No. 1 5/8 1 25/32 1 1.6287 1.6248 1.7818 1.7808 1.6238 1.6222 A350SI-2629-16
max. min. max. min. max. min. 1 5/8 1 25/32 1 1/2 1.6287 1.6248 1.7818 1.7808 1.6238 1.6222 A350SI-2629-24
1/8 3/16 3/16 .1266 .1247 .1878 .1873 .1243 .1236 A350SI-0203-03 1 3/4 1 15/16 1 1.7536 1.7497 1.9381 1.9371 1.7487 1.7471 A350SI-2831-16
3/16 1/4 1/4 .1888 .1869 .2503 .2497 .1865 .1858 A350SI-0304-04 1 3/4 1 15/16 2 1.7536 1.7497 1.9381 1.9371 1.7487 1.7471 A350SI-2831-32
3/16 1/4 3/8 .1888 .1869 .2503 .2497 .1865 .1858 A350SI-0304-06 1 7/8 2 1/16 1 1.8747 1.8786 2.0633 2.0621 1.8737 1.8721 A350SI-3033-16
1/4 5/16 3/8 .2518 .2495 .3128 .3122 .2490 .2481 A350SI-0405-06 1 7/8 2 1/16 2 1.8747 1.8786 2.0633 2.0621 1.8737 1.8721 A350SI-3033-32
1/4 5/16 1/2 .2518 .2495 .3128 .3122 .2490 .2481 A350SI-0405-08 2 2 3/16 1 2.0040 1.9993 2.1883 2.1871 1.9981 1.9969 A350SI-3235-16
5/16 3/8 1/4 .3143 .3120 .3753 .3747 .3115 .3106 A350SI-0506-04 2 2 3/16 2 2.0040 1.9993 2.1883 2.1871 1.9981 1.9969 A350SI-3235-32
5/16 3/8 3/8 .3143 .3120 .3753 .3747 .3115 .3106 A350SI-0506-06
5/16 3/8 1/2 .3143 .3120 .3753 .3747 .3115 .3106 A350SI-0506-08 iglidur A500 Chapter Page 417
®
3/8 15/32 1/4 .3768 .3745 .4691 .4684 .3740 .3731 A350SI-0607-04
3/8 15/32 3/8 .3768 .3745 .4691 .4684 .3740 .3731 A350SI-0607-06 d1 d2 b1 d1 3) Housing hole Shaft size Part No.
3/8 15/32 1/2 .3768 .3745 .4691 .4684 .3740 .3731 A350SI-0607-08 max. min. max. min. max. min.
3/8 15/32 5/8 .3768 .3745 .4691 .4684 .3740 .3731 A350SI-0607-10 1/8 3/16 3/16 .1266 .1247 .1878 .1873 .1243 .1236 A500SI-0203-03
3/8 15/32 3/4 .3768 .3745 .4691 .4684 .3740 .3731 A350SI-0607-12 3/16 1/4 1/4 .1888 .1869 .2503 .2497 .1865 .1858 A500SI-0304-04
7/16 17/32 1/2 .4399 .4371 .5316 .5309 .4365 .4355 A350SI-0708-08 3/16 1/4 3/8 .1888 .1869 .2503 .2497 .1865 .1858 A500SI-0304-06
7/16 17/32 3/4 .4399 .4371 .5316 .5309 .4365 .4355 A350SI-0708-12 1/4 5/16 3/8 .2518 .2495 .3128 .3122 .2490 .2481 A500SI-0405-06
1/2 19/32 1/4 .5024 .4996 .5941 .5934 .4990 .4980 A350SI-0809-04 1/4 5/16 1/2 .2518 .2495 .3128 .3122 .2490 .2481 A500SI-0405-08
1/2 19/32 3/8 .5024 .4996 .5941 .5934 .4990 .4980 A350SI-0809-06 5/16 3/8 1/4 .3143 .3120 .3753 .3747 .3115 .3106 A500SI-0506-04
1/2 19/32 1/2 .5024 .4996 .5941 .5934 .4990 .4980 A350SI-0809-08 5/16 3/8 3/8 .3143 .3120 .3753 .3747 .3115 .3106 A500SI-0506-06
1/2 19/32 5/8 .5024 .4996 .5941 .5934 .4990 .4980 A350SI-0809-10 5/16 3/8 1/2 .3143 .3120 .3753 .3747 .3115 .3106 A500SI-0506-08
1/2 19/32 3/4 .5024 .4996 .5941 .5934 .4990 .4980 A350SI-0809-12 3/8 15/32 1/4 .3768 .3745 .4691 .4684 .3740 .3731 A500SI-0607-04
1/2 19/32 1 .5024 .4996 .5941 .5934 .4990 .4980 A350SI-0809-16 3/8 15/32 3/8 .3768 .3745 .4691 .4684 .3740 .3731 A500SI-0607-06
9/16 21/32 1/2 .5649 .5620 .6566 .6559 .5615 .5605 A350SI-0910-08 3/8 15/32 1/2 .3768 .3745 .4691 .4684 .3740 .3731 A500SI-0607-08
9/16 21/32 5/8 .5649 .5620 .6566 .6559 .5615 .5605 A350SI-0910-10 3/8 15/32 5/8 .3768 .3745 .4691 .4684 .3740 .3731 A500SI-0607-10
9/16 21/32 3/4 .5649 .5620 .6566 .6559 .5615 .5605 A350SI-0910-12 3/8 15/32 3/4 .3768 .3745 .4691 .4684 .3740 .3731 A500SI-0607-12
5/8 23/32 1/2 .6274 .6246 .7192 .7184 .6240 .6230 A350SI-1011-08 7/16 17/32 1/2 .4399 .4371 .5316 .5309 .4365 .4355 A500SI-0708-08
5/8 23/32 3/4 .6274 .6246 .7192 .7184 .6240 .6230 A350SI-1011-12 7/16 17/32 3/4 .4399 .4371 .5316 .5309 .4365 .4355 A500SI-0708-12
5/8 23/32 1 .6274 .6246 .7192 .7184 .6240 .6230 A350SI-1011-16 1/2 19/32 1/4 .5024 .4996 .5941 .5934 .4990 .4980 A500SI-0809-04
3/4 7/8 1/2 .7532 .7499 .8755 .8747 .7491 .7479 A350SI-1214-08 1/2 19/32 3/8 .5024 .4996 .5941 .5934 .4990 .4980 A500SI-0809-06
3/4 7/8 3/4 .7532 .7499 .8755 .8747 .7491 .7479 A350SI-1214-12 1/2 19/32 1/2 .5024 .4996 .5941 .5934 .4990 .4980 A500SI-0809-08
3/4 7/8 1 .7532 .7499 .8755 .8747 .7491 .7479 A350SI-1214-16 1/2 19/32 5/8 .5024 .4996 .5941 .5934 .4990 .4980 A500SI-0809-10
7/8 1 1/2 .8782 .8749 1.0005 .9997 .8741 .8729 A350SI-1416-08 1/2 19/32 3/4 .5024 .4996 .5941 .5934 .4990 .4980 A500SI-0809-12
7/8 1 3/4 .8782 .8749 1.0005 .9997 .8741 .8729 A350SI-1416-12 1/2 19/32 1 .5024 .4996 .5941 .5934 .4990 .4980 A500SI-0809-16
7/8 1 1 .8782 .8749 1.0005 .9997 .8741 .8729 A350SI-1416-16 9/16 21/32 1/2 .5649 .5620 .6566 .6559 .5615 .5605 A500SI-0910-08
1 1 1/8 1/2 1.0032 .9999 1.1255 1.1247 .9991 .9979 A350SI-1618-08 9/16 21/32 5/8 .5649 .5620 .6566 .6559 .5615 .5605 A500SI-0910-10
1 1 1/8 3/4 1.0032 .9999 1.1255 1.1247 .9991 .9979 A350SI-1618-12 9/16 21/32 3/4 .5649 .5620 .6566 .6559 .5615 .5605 A500SI-0910-12
1 1 1/8 1 1.0032 .9999 1.1255 1.1247 .9991 .9979 A350SI-1618-16 5/8 23/32 1/2 .6274 .6246 .7192 .7184 .6240 .6230 A500SI-1011-08
1 1/8 1 9/32 3/4 1.1279 1.1246 1.2818 1.2808 1.1238 1.1226 A350SI-1820-12 5/8 23/32 3/4 .6274 .6246 .7192 .7184 .6240 .6230 A500SI-1011-12
1 1/8 1 9/32 1 1.1279 1.1246 1.2818 1.2808 1.1238 1.1226 A350SI-1820-16 5/8 23/32 1 .6274 .6246 .7192 .7184 .6240 .6230 A500SI-1011-16
1 1/8 1 9/32 1 1/4 1.1279 1.1246 1.2818 1.2808 1.1238 1.1226 A350SI-1820-20 3/4 7/8 1/2 .7532 .7499 .8755 .8747 .7491 .7479 A500SI-1214-08
1 1/4 1 13/32 3/4 1.2537 1.2498 1.4068 1.4058 1.2488 1.2472 A350SI-2022-12 3/4 7/8 3/4 .7532 .7499 .8755 .8747 .7491 .7479 A500SI-1214-12
1 1/4 1 13/32 1 1.2537 1.2498 1.4068 1.4058 1.2488 1.2472 A350SI-2022-16 3/4 7/8 1 .7532 .7499 .8755 .8747 .7491 .7479 A500SI-1214-16
1 1/4 1 13/32 1 1/4 1.2537 1.2498 1.4068 1.4058 1.2488 1.2472 A350SI-2022-20 7/8 1 1/2 .8782 .8749 1.0005 .9997 .8741 .8729 A500SI-1416-08
1 1/2 1 21/32 1 1.5037 1.4998 1.6568 1.6558 1.4988 1.4972 A350SI-2426-16 7/8 1 3/4 .8782 .8749 1.0005 .9997 .8741 .8729 A500SI-1416-12
1 1/2 1 21/32 1 1/2 1.5037 1.4998 1.6568 1.6558 1.4988 1.4972 A350SI-2426-24 7/8 1 1 .8782 .8749 1.0005 .9997 .8741 .8729 A500SI-1416-16
3) After press-fit. Testing methods u Page 61 ASEAN 09/2023 ASEAN 09/2023 3) After press-fit. Testing methods u Page 61
1102 Service life calculation, configuration and more u www.igus-asean.com 3D CAD files, prices and delivery time online u www.igus-asean.com 1103
