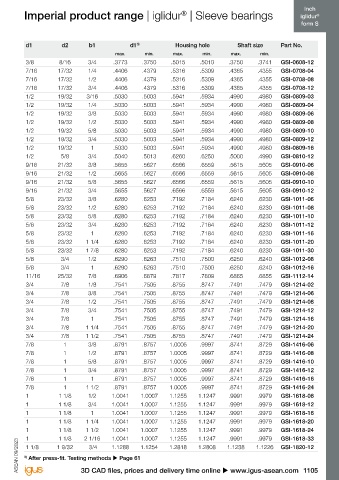

iglidur Imperial product range | iglidur | Sleeve bearings Imperial product range | iglidur | Sleeve bearings iglidur
®
®
form S form S
d1 d2 b1 d1 3) Housing hole Shaft size Part No. d1 d2 b1 d1 3) Housing hole Shaft size Part No.
max. min. max. min. max. min. max. min. max. min. max. min.
1 1 1/8 1/2 1.0032 .9999 1.1255 1.1247 .9991 .9979 A500SI-1618-08 3/8 8/16 3/4 .3773 .3750 .5015 .5010 .3750 .3741 GSI-0608-12
1 1 1/8 3/4 1.0032 .9999 1.1255 1.1247 .9991 .9979 A500SI-1618-12 7/16 17/32 1/4 .4406 .4379 .5316 .5309 .4365 .4355 GSI-0708-04
1 1 1/8 1 1.0032 .9999 1.1255 1.1247 .9991 .9979 A500SI-1618-16 7/16 17/32 1/2 .4406 .4379 .5316 .5309 .4365 .4355 GSI-0708-08
1 1/8 1 9/32 3/4 1.1279 1.1246 1.2818 1.2808 1.1238 1.1226 A500SI-1820-12 7/16 17/32 3/4 .4406 .4379 .5316 .5309 .4365 .4355 GSI-0708-12
1 1/8 1 9/32 1 1.1279 1.1246 1.2818 1.2808 1.1238 1.1226 A500SI-1820-16 1/2 19/32 3/16 .5030 .5003 .5941 .5934 .4990 .4980 GSI-0809-03
1 1/8 1 9/32 1 1/4 1.1279 1.1246 1.2818 1.2808 1.1238 1.1226 A500SI-1820-20 1/2 19/32 1/4 .5030 .5003 .5941 .5934 .4990 .4980 GSI-0809-04
1 1/4 1 13/32 3/4 1.2537 1.2498 1.4068 1.4058 1.2488 1.2472 A500SI-2022-12 1/2 19/32 3/8 .5030 .5003 .5941 .5934 .4990 .4980 GSI-0809-06
1 1/4 1 13/32 1 1.2537 1.2498 1.4068 1.4058 1.2488 1.2472 A500SI-2022-16 1/2 19/32 1/2 .5030 .5003 .5941 .5934 .4990 .4980 GSI-0809-08
1 1/4 1 13/32 1 1/4 1.2537 1.2498 1.4068 1.4058 1.2488 1.2472 A500SI-2022-20 1/2 19/32 5/8 .5030 .5003 .5941 .5934 .4990 .4980 GSI-0809-10
1 1/2 1 21/32 1 1.5037 1.4998 1.6568 1.6558 1.4988 1.4972 A500SI-2426-16 1/2 19/32 3/4 .5030 .5003 .5941 .5934 .4990 .4980 GSI-0809-12
1 1/2 1 21/32 1 1/2 1.5037 1.4998 1.6568 1.6558 1.4988 1.4972 A500SI-2426-24 1/2 19/32 1 .5030 .5003 .5941 .5934 .4990 .4980 GSI-0809-16
1 5/8 1 25/32 1 1.6287 1.6248 1.7818 1.7808 1.6238 1.6222 A500SI-2629-16 1/2 5/8 3/4 .5040 .5013 .6260 .6250 .5000 .4990 GSI-0810-12
1 5/8 1 25/32 1 1/2 1.6287 1.6248 1.7818 1.7808 1.6238 1.6222 A500SI-2629-24 9/16 21/32 3/8 .5655 .5627 .6566 .6559 .5615 .5605 GSI-0910-06
1 3/4 1 15/16 1 1.7536 1.7497 1.9381 1.9371 1.7487 1.7471 A500SI-2831-16 9/16 21/32 1/2 .5655 .5627 .6566 .6559 .5615 .5605 GSI-0910-08
1 3/4 1 15/16 2 1.7536 1.7497 1.9381 1.9371 1.7487 1.7471 A500SI-2831-32 9/16 21/32 5/8 .5655 .5627 .6566 .6559 .5615 .5605 GSI-0910-10
1 7/8 2 1/16 1 1.8747 1.8786 2.0633 2.0621 1.8737 1.8721 A500SI-3033-16 9/16 21/32 3/4 .5655 .5627 .6566 .6559 .5615 .5605 GSI-0910-12
1 7/8 2 1/16 2 1.8747 1.8786 2.0633 2.0621 1.8737 1.8721 A500SI-3033-32 5/8 23/32 3/8 .6280 .6253 .7192 .7184 .6240 .6230 GSI-1011-06
2 2 3/16 1 2.0040 1.9993 2.1883 2.1871 1.9981 1.9969 A500SI-3235-16 5/8 23/32 1/2 .6280 .6253 .7192 .7184 .6240 .6230 GSI-1011-08
2 2 3/16 2 2.0040 1.9993 2.1883 2.1871 1.9981 1.9969 A500SI-3235-32 5/8 23/32 5/8 .6280 .6253 .7192 .7184 .6240 .6230 GSI-1011-10
5/8 23/32 3/4 .6280 .6253 .7192 .7184 .6240 .6230 GSI-1011-12

iglidur G Chapter „ Page 85 5/8 23/32 1 .6280 .6253 .7192 .7184 .6240 .6230 GSI-1011-16
®
5/8 23/32 1 1/4 .6280 .6253 .7192 .7184 .6240 .6230 GSI-1011-20
d1 d2 b1 d1 3) Housing hole Shaft size Part No. 5/8 23/32 1 7/8 .6280 .6253 .7192 .7184 .6240 .6230 GSI-1011-30
max. min. max. min. max. min. 5/8 3/4 1/2 .6290 .6263 .7510 .7500 .6250 .6240 GSI-1012-08
1/8 3/16 3/16 .1269 .1251 .1878 .1873 .1243 .1236 GSI-0203-03 5/8 3/4 1 .6290 .6263 .7510 .7500 .6250 .6240 GSI-1012-16
1/8 3/16 1/4 .1269 .1251 .1878 .1873 .1243 .1236 GSI-0203-04 11/16 25/32 7/8 .6906 .6879 .7817 .7809 .6865 .6855 GSI-1112-14
1/8 3/16 3/8 .1269 .1251 .1878 .1873 .1243 .1236 GSI-0203-06 3/4 7/8 1/8 .7541 .7505 .8755 .8747 .7491 .7479 GSI-1214-02
3/16 1/4 1/4 .1892 .1873 .2503 .2497 .1865 .1858 GSI-0304-04 3/4 7/8 3/8 .7541 .7505 .8755 .8747 .7491 .7479 GSI-1214-06
3/16 1/4 3/8 .1892 .1873 .2503 .2497 .1865 .1858 GSI-0304-06 3/4 7/8 1/2 .7541 .7505 .8755 .8747 .7491 .7479 GSI-1214-08
3/16 1/4 1/2 .1892 .1873 .2503 .2497 .1865 .1858 GSI-0304-08 3/4 7/8 3/4 .7541 .7505 .8755 .8747 .7491 .7479 GSI-1214-12
1/4 5/16 1/4 .2521 .2498 .3128 .3122 .2490 .2481 GSI-0405-04 3/4 7/8 1 .7541 .7505 .8755 .8747 .7491 .7479 GSI-1214-16
1/4 5/16 5/16 .2521 .2498 .3128 .3122 .2490 .2481 GSI-0405-05 3/4 7/8 1 1/4 .7541 .7505 .8755 .8747 .7491 .7479 GSI-1214-20
1/4 5/16 3/8 .2521 .2498 .3128 .3122 .2490 .2481 GSI-0405-06 3/4 7/8 1 1/2 .7541 .7505 .8755 .8747 .7491 .7479 GSI-1214-24
1/4 5/16 1/2 .2521 .2498 .3128 .3122 .2490 .2481 GSI-0405-08 7/8 1 3/8 .8791 .8757 1.0005 .9997 .8741 .8729 GSI-1416-06
1/4 5/16 5/8 .2521 .2498 .3128 .3122 .2490 .2481 GSI-0405-10 7/8 1 1/2 .8791 .8757 1.0005 .9997 .8741 .8729 GSI-1416-08
1/4 5/16 3/4 .2521 .2498 .3128 .3122 .2490 .2481 GSI-0405-12 7/8 1 5/8 .8791 .8757 1.0005 .9997 .8741 .8729 GSI-1416-10
5/16 3/8 1/4 .3148 .3125 .3753 .3747 .3115 .3106 GSI-0506-04 7/8 1 3/4 .8791 .8757 1.0005 .9997 .8741 .8729 GSI-1416-12
5/16 3/8 3/8 .3148 .3125 .3753 .3747 .3115 .3106 GSI-0506-06 7/8 1 1 .8791 .8757 1.0005 .9997 .8741 .8729 GSI-1416-16
5/16 3/8 1/2 .3148 .3125 .3753 .3747 .3115 .3106 GSI-0506-08 7/8 1 1 1/2 .8791 .8757 1.0005 .9997 .8741 .8729 GSI-1416-24
5/16 3/8 3/4 .3148 .3125 .3753 .3747 .3115 .3106 GSI-0506-12 1 1 1/8 1/2 1.0041 1.0007 1.1255 1.1247 .9991 .9979 GSI-1618-08
3/8 15/32 1/4 .3773 .3750 .4691 .4684 .3740 .3731 GSI-0607-04 1 1 1/8 3/4 1.0041 1.0007 1.1255 1.1247 .9991 .9979 GSI-1618-12
3/8 15/32 3/8 .3773 .3750 .4691 .4684 .3740 .3731 GSI-0607-06 1 1 1/8 1 1.0041 1.0007 1.1255 1.1247 .9991 .9979 GSI-1618-16
3/8 15/32 1/2 .3773 .3750 .4691 .4684 .3740 .3731 GSI-0607-08 1 1 1/8 1 1/4 1.0041 1.0007 1.1255 1.1247 .9991 .9979 GSI-1618-20
3/8 15/32 5/8 .3773 .3750 .4691 .4684 .3740 .3731 GSI-0607-10 1 1 1/8 1 1/2 1.0041 1.0007 1.1255 1.1247 .9991 .9979 GSI-1618-24
3/8 15/32 3/4 .3773 .3750 .4691 .4684 .3740 .3731 GSI-0607-12 1 1 1/8 2 1/16 1.0041 1.0007 1.1255 1.1247 .9991 .9979 GSI-1618-33
3/8 8/16 1/2 .3783 .3760 .5015 .5010 .3750 .3741 GSI-0608-08 1 1/8 1 9/32 3/4 1.1288 1.1254 1.2818 1.2808 1.1238 1.1226 GSI-1820-12

3) After press-fit. Testing methods u Page 61 ASEAN 09/2023 ASEAN 09/2023 3) After press-fit. Testing methods u Page 61
1104 Service life calculation, configuration and more u www.igus-asean.com 3D CAD files, prices and delivery time online u www.igus-asean.com 1105
