Inch Inch
®
®

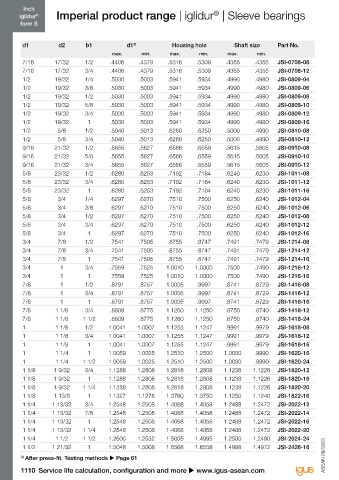

iglidur Imperial product range | iglidur | Sleeve bearings Imperial product range | iglidur | Sleeve bearings iglidur
®
®
form S form S
d1 d2 b1 d1 3) Housing hole Shaft size Part No. d1 d2 b1 d1 3) Housing hole Shaft size Part No.
max. min. max. min. max. min. max. min. max. min. max. min.
7/16 17/32 1/2 .4406 .4379 .5316 .5309 .4365 .4355 JSI-0708-08 1 1/2 1 21/32 1 1/2 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 JSI-2426-24
7/16 17/32 3/4 .4406 .4379 .5316 .5309 .4365 .4355 JSI-0708-12 1 1/2 1 3/4 1 1/2 1.5100 1.5032 1.7505 1.7495 1.50 1.499 JSI-2428-24
1/2 19/32 1/4 .5030 .5003 .5941 .5934 .4990 .4980 JSI-0809-04 1 5/8 1 25/32 1 1.6297 1.6258 1.7818 1.7808 1.6238 1.6222 JSI-2629-16
1/2 19/32 3/8 .5030 .5003 .5941 .5934 .4990 .4980 JSI-0809-06 1 5/8 1 25/32 1 1/2 1.6297 1.6258 1.7818 1.7808 1.6238 1.6222 JSI-2629-24
1/2 19/32 1/2 .5030 .5003 .5941 .5934 .4990 .4980 JSI-0809-08 1 5/8 1 25/32 1 1/2 1.6297 1.6258 1.7818 1.7808 1.6238 1.6222 JSI-2629-24
1/2 19/32 5/8 .5030 .5003 .5941 .5934 .4990 .4980 JSI-0809-10 1 3/4 1 15/16 1 1.7547 1.7507 1.9381 1.9371 1.7487 1.7471 JSI-2831-16
1/2 19/32 3/4 .5030 .5003 .5941 .5934 .4990 .4980 JSI-0809-12 1 3/4 1 15/16 2 1.7547 1.7507 1.9381 1.9371 1.7487 1.7471 JSI-2831-32
1/2 19/32 1 .5030 .5003 .5941 .5934 .4990 .4980 JSI-0809-16 1 7/8 2 1/16 1 1.8796 1.8757 2.0633 2.0621 1.8737 1.8721 JSI-3033-16
1/2 5/8 1/2 .5040 .5013 .6260 .6250 .5000 .4990 JSI-0810-08 1 7/8 2 1/16 2 1.8796 1.8757 2.0633 2.0621 1.8737 1.8721 JSI-3033-32
1/2 5/8 3/4 .5040 .5013 .6260 .6250 .5000 .4990 JSI-0810-12 2 2 3/16 1 2.0057 2.0011 2.1883 2.1871 1.9981 1.9969 JSI-3235-16
9/16 21/32 1/2 .5655 .5627 .6566 .6559 .5615 .5605 JSI-0910-08 2 2 3/16 2 2.0057 2.0011 2.1883 2.1871 1.9981 1.9969 JSI-3235-32
9/16 21/32 5/8 .5655 .5627 .6566 .6559 .5615 .5605 JSI-0910-10
9/16 21/32 3/4 .5655 .5627 .6566 .6559 .5615 .5605 JSI-0910-12 iglidur J3 Chapter „ Page 187
®
5/8 23/32 1/2 .6280 .6253 .7192 .7184 .6240 .6230 JSI-1011-08
5/8 23/32 3/4 .6280 .6253 .7192 .7184 .6240 .6230 JSI-1011-12 d1 d2 b1 d1 3) Housing hole Shaft size Part No.
5/8 23/32 1 .6280 .6253 .7192 .7184 .6240 .6230 JSI-1011-16 max. min. max. min. max. min.
5/8 3/4 1/4 .6297 .6270 .7510 .7500 .6250 .6240 JSI-1012-04 1/8 3/16 3/16 0.1269 0.1251 0.1878 0.1873 0.1243 0.1236 J3SI-0203-03
5/8 3/4 3/8 .6297 .6270 .7510 .7500 .6250 .6240 JSI-1012-06 3/16 1/4 1/4 0.1892 0.1873 0.2503 0.2497 0.1865 0.1858 J3SI-0304-04
5/8 3/4 1/2 .6297 .6270 .7510 .7500 .6250 .6240 JSI-1012-08 3/16 1/4 3/8 0.1892 0.1873 0.2503 0.2497 0.1865 0.1858 J3SI-0304-06
5/8 3/4 3/4 .6297 .6270 .7510 .7500 .6250 .6240 JSI-1012-12 1/4 5/16 3/8 0.2521 0.2498 0.3128 0.3122 0.2490 0.2481 J3SI-0405-06
5/8 3/4 1 .6297 .6270 .7510 .7500 .6250 .6240 JSI-1012-16 1/4 5/16 1/2 0.2521 0.2498 0.3128 0.3122 0.2490 0.2481 J3SI-0405-08
3/4 7/8 1/2 .7541 .7505 .8755 .8747 .7491 .7479 JSI-1214-08 5/16 3/8 1/4 0.3148 0.3125 0.3753 0.3747 0.3115 0.3106 J3SI-0506-04
3/4 7/8 3/4 .7541 .7505 .8755 .8747 .7491 .7479 JSI-1214-12 5/16 3/8 3/8 0.3148 0.3125 0.3753 0.3747 0.3115 0.3106 J3SI-0506-06
3/4 7/8 1 .7541 .7505 .8755 .8747 .7491 .7479 JSI-1214-16 5/16 3/8 1/2 0.3148 0.3125 0.3753 0.3747 0.3115 0.3106 J3SI-0506-08
3/4 1 3/4 .7559 .7525 1.0010 1.0000 .7500 .7490 JSI-1216-12 3/8 15/32 1/4 0.3773 0.3750 0.4691 0.4684 0.3740 0.3731 J3SI-0607-04
3/4 1 1 .7559 .7525 1.0010 1.0000 .7500 .7490 JSI-1216-16 3/8 15/32 3/8 0.3773 0.3750 0.4691 0.4684 0.3740 0.3731 J3SI-0607-06
7/8 1 1/2 .8791 .8757 1.0005 .9997 .8741 .8729 JSI-1416-08 3/8 15/32 1/2 0.3773 0.3750 0.4691 0.4684 0.3740 0.3731 J3SI-0607-08
7/8 1 3/4 .8791 .8757 1.0005 .9997 .8741 .8729 JSI-1416-12 3/8 15/32 5/8 0.3773 0.3750 0.4691 0.4684 0.3740 0.3731 J3SI-0607-10
7/8 1 1 .8791 .8757 1.0005 .9997 .8741 .8729 JSI-1416-16 3/8 15/32 3/4 0.3773 0.3750 0.4691 0.4684 0.3740 0.3731 J3SI-0607-12
7/8 1 1/8 3/4 .8809 .8775 1.1260 1.1250 .8750 .8740 JSI-1418-12 7/16 17/32 1/2 0.4406 0.4379 0.5316 0.5309 0.4365 0.4355 J3SI-0708-08
7/8 1 1/8 1 1/2 .8809 .8775 1.1260 1.1250 .8750 .8740 JSI-1418-24 7/16 17/32 3/4 0.4406 0.4379 0.5316 0.5309 0.4365 0.4355 J3SI-0708-12
1 1 1/8 1/2 1.0041 1.0007 1.1255 1.1247 .9991 .9979 JSI-1618-08 1/2 19/32 1/4 0.5030 0.5003 0.5941 0.5934 0.4990 0.4980 J3SI-0809-04
1 1 1/8 3/4 1.0041 1.0007 1.1255 1.1247 .9991 .9979 JSI-1618-12 1/2 19/32 3/8 0.5030 0.5003 0.5941 0.5934 0.4990 0.4980 J3SI-0809-06
1 1 1/8 1 1.0041 1.0007 1.1255 1.1247 .9991 .9979 JSI-1618-16 1/2 19/32 1/2 0.5030 0.5003 0.5941 0.5934 0.4990 0.4980 J3SI-0809-08
1 1 1/4 1 1.0059 1.0025 1.2510 1.2500 1.0000 .9990 JSI-1620-16 1/2 19/32 5/8 0.5030 0.5003 0.5941 0.5934 0.4990 0.4980 J3SI-0809-10
1 1 1/4 1 1/2 1.0059 1.0025 1.2510 1.2500 1.0000 .9990 JSI-1620-24 1/2 19/32 3/4 0.5030 0.5003 0.5941 0.5934 0.4990 0.4980 J3SI-0809-12
1 1/8 1 9/32 3/4 1.1288 1.2808 1.2818 1.2808 1.1238 1.1226 JSI-1820-12 1/2 19/32 1 0.5030 0.5003 0.5941 0.5934 0.4990 0.4980 J3SI-0809-16
1 1/8 1 9/32 1 1.1288 1.2808 1.2818 1.2808 1.1238 1.1226 JSI-1820-16 9/16 21/32 1/2 0.5655 0.5627 0.6566 0.6559 0.5615 0.5605 J3SI-0910-08
1 1/8 1 9/32 1 1/4 1.1288 1.2808 1.2818 1.2808 1.1238 1.1226 JSI-1820-20 9/16 21/32 5/8 0.5655 0.5627 0.6566 0.6559 0.5615 0.5605 J3SI-0910-10
1 1/8 1 13/8 1 1.1327 1.1276 1.3760 1.3750 1.1250 1.1240 JSI-1822-16 9/16 21/32 3/4 0.5655 0.5627 0.6566 0.6559 0.5615 0.5605 J3SI-0910-12
1 1/4 1 13/32 3/4 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 JSI-2022-12 5/8 23/32 1/2 0.6280 0.6253 0.7192 0.7184 0.6240 0.6230 J3SI-1011-08
1 1/4 1 13/32 7/8 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 JSI-2022-14 5/8 23/32 3/4 0.6280 0.6253 0.7192 0.7184 0.6240 0.6230 J3SI-1011-12
1 1/4 1 13/32 1 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 JSI-2022-16 5/8 23/32 1 0.6280 0.6253 0.7192 0.7184 0.6240 0.6230 J3SI-1011-16
1 1/4 1 13/32 1 1/4 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 JSI-2022-20 3/4 7/8 1/2 0.7541 0.7505 0.8755 0.8747 0.7491 0.7479 J3SI-1214-08
1 1/4 1 1/2 1 1/2 1.2600 1.2532 1.5005 1.4995 1.2500 1.2490 JSI-2024-24 3/4 7/8 3/4 0.7541 0.7505 0.8755 0.8747 0.7491 0.7479 J3SI-1214-12
1 1/2 1 21/32 1 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 JSI-2426-16 3/4 7/8 1 0.7541 0.7505 0.8755 0.8747 0.7491 0.7479 J3SI-1214-16

3) After press-fit. Testing methods u Page 61 ASEAN 09/2023 ASEAN 09/2023 3) After press-fit. Testing methods u Page 61
1110 Service life calculation, configuration and more u www.igus-asean.com 3D CAD files, prices and delivery time online u www.igus-asean.com 1111
