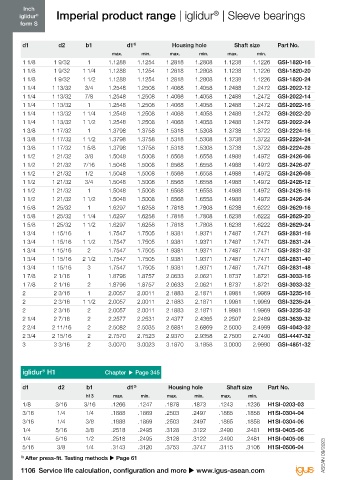

Page 1108 - IGUS Bearing
P. 1108
Inch Inch
®
®
iglidur Imperial product range | iglidur | Sleeve bearings Imperial product range | iglidur | Sleeve bearings iglidur
®
®
form S form S
d1 d2 b1 d1 3) Housing hole Shaft size Part No. d1 d2 b1 d1 3) Housing hole Shaft size Part No.
max. min. max. min. max. min. h13 max. min. max. min. max. min.
1 1/8 1 9/32 1 1.1288 1.1254 1.2818 1.2808 1.1238 1.1226 GSI-1820-16 5/16 3/8 3/8 .3143 .3120 .3753 .3747 .3115 .3106 H1SI-0506-06
1 1/8 1 9/32 1 1/4 1.1288 1.1254 1.2818 1.2808 1.1238 1.1226 GSI-1820-20 5/16 3/8 1/2 .3143 .3120 .3753 .3747 .3115 .3106 H1SI-0506-08
1 1/8 1 9/32 1 1/2 1.1288 1.1254 1.2818 1.2808 1.1238 1.1226 GSI-1820-24 3/8 15/32 1/4 .3768 .3745 .4691 .4684 .3740 .3731 H1SI-0607-04
1 1/4 1 13/32 3/4 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 GSI-2022-12 3/8 15/32 3/8 .3768 .3745 .4691 .4684 .3740 .3731 H1SI-0607-06
1 1/4 1 13/32 7/8 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 GSI-2022-14 3/8 15/32 1/2 .3768 .3745 .4691 .4684 .3740 .3731 H1SI-0607-08
1 1/4 1 13/32 1 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 GSI-2022-16 3/8 15/32 5/8 .3768 .3745 .4691 .4684 .3740 .3731 H1SI-0607-10
1 1/4 1 13/32 1 1/4 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 GSI-2022-20 3/8 15/32 3/4 .3768 .3745 .4691 .4684 .3740 .3731 H1SI-0607-12
1 1/4 1 13/32 1 1/2 1.2548 1.2508 1.4068 1.4058 1.2488 1.2472 GSI-2022-24 7/16 17/32 1/2 .4399 .4371 .5316 .5309 .4365 .4355 H1SI-0708-08
1 3/8 1 17/32 1 1.3798 1.3758 1.5318 1.5308 1.3738 1.3722 GSI-2224-16 7/16 17/32 3/4 .4399 .4371 .5316 .5309 .4365 .4355 H1SI-0708-12
1 3/8 1 17/32 1 1/2 1.3798 1.3758 1.5318 1.5308 1.3738 1.3722 GSI-2224-24 1/2 19/32 1/4 .5024 .4996 .5941 .5934 .4990 .4980 H1SI-0809-04
1 3/8 1 17/32 1 5/8 1.3798 1.3758 1.5318 1.5308 1.3738 1.3722 GSI-2224-26 1/2 19/32 3/8 .5024 .4996 .5941 .5934 .4990 .4980 H1SI-0809-06
1 1/2 1 21/32 3/8 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 GSI-2426-06 1/2 19/32 1/2 .5024 .4996 .5941 .5934 .4990 .4980 H1SI-0809-08
1 1/2 1 21/32 7/16 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 GSI-2426-07 1/2 19/32 5/8 .5024 .4996 .5941 .5934 .4990 .4980 H1SI-0809-10
1 1/2 1 21/32 1/2 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 GSI-2426-08 1/2 19/32 3/4 .5024 .4996 .5941 .5934 .4990 .4980 H1SI-0809-12
1 1/2 1 21/32 3/4 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 GSI-2426-12 1/2 19/32 1 .5024 .4996 .5941 .5934 .4990 .4980 H1SI-0809-16
1 1/2 1 21/32 1 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 GSI-2426-16 9/16 21/32 1/2 .5649 .5620 .6566 .6559 .5615 .5605 H1SI-0910-08
1 1/2 1 21/32 1 1/2 1.5048 1.5008 1.6568 1.6558 1.4988 1.4972 GSI-2426-24 9/16 21/32 5/8 .5649 .5620 .6566 .6559 .5615 .5605 H1SI-0910-10
1 5/8 1 25/32 1 1.6297 1.6258 1.7818 1.7808 1.6238 1.6222 GSI-2629-16 9/16 21/32 3/4 .5649 .5620 .6566 .6559 .5615 .5605 H1SI-0910-12
1 5/8 1 25/32 1 1/4 1.6297 1.6258 1.7818 1.7808 1.6238 1.6222 GSI-2629-20 5/8 23/32 1/2 .6274 .6246 .7192 .7184 .6240 .6230 H1SI-1011-08
1 5/8 1 25/32 1 1/2 1.6297 1.6258 1.7818 1.7808 1.6238 1.6222 GSI-2629-24 5/8 23/32 3/4 .6274 .6246 .7192 .7184 .6240 .6230 H1SI-1011-12
1 3/4 1 15/16 1 1.7547 1.7505 1.9381 1.9371 1.7487 1.7471 GSI-2831-16 5/8 23/32 1 .6274 .6246 .7192 .7184 .6240 .6230 H1SI-1011-16
1 3/4 1 15/16 1 1/2 1.7547 1.7505 1.9381 1.9371 1.7487 1.7471 GSI-2831-24 3/4 7/8 1/2 .7532 .7499 .8755 .8747 .7491 .7479 H1SI-1214-08
1 3/4 1 15/16 2 1.7547 1.7505 1.9381 1.9371 1.7487 1.7471 GSI-2831-32 3/4 7/8 3/4 .7532 .7499 .8755 .8747 .7491 .7479 H1SI-1214-12
1 3/4 1 15/16 2 1/2 1.7547 1.7505 1.9381 1.9371 1.7487 1.7471 GSI-2831-40 3/4 7/8 1 .7532 .7499 .8755 .8747 .7491 .7479 H1SI-1214-16
1 3/4 1 15/16 3 1.7547 1.7505 1.9381 1.9371 1.7487 1.7471 GSI-2831-48 7/8 1 1/2 .8782 .8749 1.0005 .9997 .8741 .8729 H1SI-1416-08
1 7/8 2 1/16 1 1.8796 1.8757 2.0633 2.0621 1.8737 1.8721 GSI-3033-16 7/8 1 3/4 .8782 .8749 1.0005 .9997 .8741 .8729 H1SI-1416-12
1 7/8 2 1/16 2 1.8796 1.8757 2.0633 2.0621 1.8737 1.8721 GSI-3033-32 7/8 1 1 .8782 .8749 1.0005 .9997 .8741 .8729 H1SI-1416-16
2 2 3/16 1 2.0057 2.0011 2.1883 2.1871 1.9981 1.9969 GSI-3235-16 1 1 1/8 1/2 1.0032 .9999 1.1255 1.1247 .9991 .9979 H1SI-1618-08
2 2 3/16 1 1/2 2.0057 2.0011 2.1883 2.1871 1.9981 1.9969 GSI-3235-24 1 1 1/8 3/4 1.0032 .9999 1.1255 1.1247 .9991 .9979 H1SI-1618-12
2 2 3/16 2 2.0057 2.0011 2.1883 2.1871 1.9981 1.9969 GSI-3235-32 1 1 1/8 1 1.0032 .9999 1.1255 1.1247 .9991 .9979 H1SI-1618-16
2 1/4 2 7/16 2 2.2577 2.2531 2.4377 2.4365 2.2507 2.2489 GSI-3639-32 1 1/8 1 9/32 3/4 1.1279 1.1246 1.2818 1.2808 1.1238 1.1226 H1SI-1820-12
2 2/4 2 11/16 2 2.5082 2.5035 2.6881 2.6869 2.5000 2.4999 GSI-4043-32 1 1/8 1 9/32 1 1.1279 1.1246 1.2818 1.2808 1.1238 1.1226 H1SI-1820-16
2 3/4 2 15/16 2 2.7570 2.7523 2.9370 2.9358 2.7500 2.7490 GSI-4447-32 1 1/8 1 9/32 1 1/4 1.1279 1.1246 1.2818 1.2808 1.1238 1.1226 H1SI-1820-20
3 3 3/16 2 3.0070 3.0023 3.1870 3.1858 3.0000 2.9990 GSI-4851-32 1 1/4 1 13/32 3/4 1.2537 1.2498 1.4068 1.4058 1.2488 1.2472 H1SI-2022-12
1 1/4 1 13/32 1 1.2537 1.2498 1.4068 1.4058 1.2488 1.2472 H1SI-2022-16
1 1/4 1 13/32 1 1/4 1.2537 1.2498 1.4068 1.4058 1.2488 1.2472 H1SI-2022-20
iglidur H1 Chapter Page 345 1 1/2 1 21/32 1 1.5037 1.4998 1.6568 1.6558 1.4988 1.4972 H1SI-2426-16
®
1 1/2 1 21/32 1 1/2 1.5037 1.4998 1.6568 1.6558 1.4988 1.4972 H1SI-2426-24
d1 d2 b1 d1 3) Housing hole Shaft size Part No. 1 5/8 1 25/32 1 1.6287 1.6248 1.7818 1.7808 1.6238 1.6222 H1SI-2629-16
h13 max. min. max. min. max. min. 1 5/8 1 25/32 1 1/2 1.6287 1.6248 1.7818 1.7808 1.6238 1.6222 H1SI-2629-24
1/8 3/16 3/16 .1266 .1247 .1878 .1873 .1243 .1236 H1SI-0203-03 1 3/4 1 15/16 1 1.7536 1.7497 1.9381 1.9371 1.7487 1.7471 H1SI-2831-16
3/16 1/4 1/4 .1888 .1869 .2503 .2497 .1865 .1858 H1SI-0304-04 1 3/4 1 15/16 2 1.7536 1.7497 1.9381 1.9371 1.7487 1.7471 H1SI-2831-32
3/16 1/4 3/8 .1888 .1869 .2503 .2497 .1865 .1858 H1SI-0304-06 1 7/8 2 1/16 1 1.8747 1.8786 2.0633 2.0621 1.8737 1.8721 H1SI-3033-16
1/4 5/16 3/8 .2518 .2495 .3128 .3122 .2490 .2481 H1SI-0405-06 1 7/8 2 1/16 2 1.8747 1.8786 2.0633 2.0621 1.8737 1.8721 H1SI-3033-32
1/4 5/16 1/2 .2518 .2495 .3128 .3122 .2490 .2481 H1SI-0405-08 2 2 3/16 1 2.0040 1.9993 2.1883 2.1871 1.9981 1.9969 H1SI-3235-16
5/16 3/8 1/4 .3143 .3120 .3753 .3747 .3115 .3106 H1SI-0506-04 2 2 3/16 2 2.0040 1.9993 2.1883 2.1871 1.9981 1.9969 H1SI-3235-32
3) After press-fit. Testing methods u Page 61 ASEAN 09/2023 ASEAN 09/2023 3) After press-fit. Testing methods u Page 61
1106 Service life calculation, configuration and more u www.igus-asean.com 3D CAD files, prices and delivery time online u www.igus-asean.com 1107
