Page 1116 - IGUS Bearing

Inch Inch
®
®

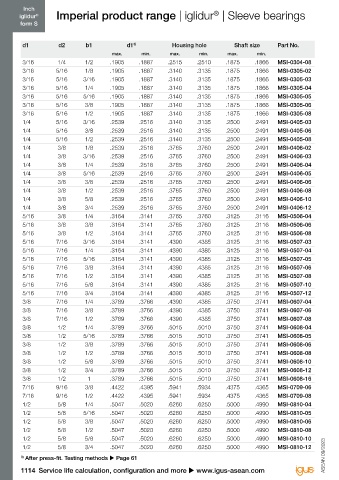

iglidur Imperial product range | iglidur | Sleeve bearings Imperial product range | iglidur | Sleeve bearings iglidur
®
®
form S form S
d1 d2 b1 d1 3) Housing hole Shaft size Part No. d1 d2 b1 d1 3) Housing hole Shaft size Part No.
max. min. max. min. max. min. max. min. max. min. max. min.
3/16 1/4 1/2 .1905 .1887 .2515 .2510 .1875 .1866 MSI-0304-08 1/2 5/8 1 .5047 .5020 .6260 .6250 .5000 .4990 MSI-0810-16
3/16 5/16 1/8 .1905 .1887 .3140 .3135 .1875 .1866 MSI-0305-02 5/8 3/4 1/4 .6297 .6270 .7510 .7500 .6250 .6240 MSI-1012-04
3/16 5/16 3/16 .1905 .1887 .3140 .3135 .1875 .1866 MSI-0305-03 5/8 3/4 3/8 .6297 .6270 .7510 .7500 .6250 .6240 MSI-1012-06
3/16 5/16 1/4 .1905 .1887 .3140 .3135 .1875 .1866 MSI-0305-04 5/8 3/4 1/2 .6297 .6270 .7510 .7500 .6250 .6240 MSI-1012-08
3/16 5/16 5/16 .1905 .1887 .3140 .3135 .1875 .1866 MSI-0305-05 5/8 3/4 5/8 .6297 .6270 .7510 .7500 .6250 .6240 MSI-1012-10
3/16 5/16 3/8 .1905 .1887 .3140 .3135 .1875 .1866 MSI-0305-06 5/8 3/4 3/4 .6297 .6270 .7510 .7500 .6250 .6240 MSI-1012-12
3/16 5/16 1/2 .1905 .1887 .3140 .3135 .1875 .1866 MSI-0305-08 5/8 3/4 1 .6297 .6270 .7510 .7500 .6250 .6240 MSI-1012-16
1/4 5/16 3/16 .2539 .2516 .3140 .3135 .2500 .2491 MSI-0405-03 5/8 3/4 1 5/8 .6297 .6270 .7510 .7500 .6250 .6240 MSI-1012-26
1/4 5/16 3/8 .2539 .2516 .3140 .3135 .2500 .2491 MSI-0405-06 5/8 13/16 3/8 .6297 .6270 .8135 .8125 .6250 .6240 MSI-1013-06
1/4 5/16 1/2 .2539 .2516 .3140 .3135 .2500 .2491 MSI-0405-08 5/8 13/16 1/2 .6297 .6270 .8135 .8125 .6250 .6240 MSI-1013-08
1/4 3/8 1/8 .2539 .2516 .3765 .3760 .2500 .2491 MSI-0406-02 5/8 13/16 5/8 .6297 .6270 .8135 .8125 .6250 .6240 MSI-1013-10
1/4 3/8 3/16 .2539 .2516 .3765 .3760 .2500 .2491 MSI-0406-03 5/8 13/16 3/4 .6297 .6270 .8135 .8125 .6250 .6240 MSI-1013-12
1/4 3/8 1/4 .2539 .2516 .3765 .3760 .2500 .2491 MSI-0406-04 5/8 13/16 1 .6297 .6270 .8135 .8125 .6250 .6240 MSI-1013-16
1/4 3/8 5/16 .2539 .2516 .3765 .3760 .2500 .2491 MSI-0406-05 11/16 13/16 3/4 .6921 .6893 .8135 .8125 .6875 .6865 MSI-1113-12
1/4 3/8 3/8 .2539 .2516 .3765 .3760 .2500 .2491 MSI-0406-06 11/16 13/16 7/8 .6921 .6893 .8135 .8125 .6875 .6865 MSI-1113-14
1/4 3/8 1/2 .2539 .2516 .3765 .3760 .2500 .2491 MSI-0406-08 11/16 13/16 1 .6922 .6900 .8135 .8125 .6875 .6865 MSI-1113-16
1/4 3/8 5/8 .2539 .2516 .3765 .3760 .2500 .2491 MSI-0406-10 3/4 7/8 3/8 .7559 .7525 .8760 .8750 .7500 .7490 MSI-1214-06
1/4 3/8 3/4 .2539 .2516 .3765 .3760 .2500 .2491 MSI-0406-12 3/4 7/8 3/4 .7559 .7525 .8760 .8750 .7500 .7490 MSI-1214-12
5/16 3/8 1/4 .3164 .3141 .3765 .3760 .3125 .3116 MSI-0506-04 3/4 7/8 1 .7559 .7525 .8760 .8750 .7500 .7490 MSI-1214-16
5/16 3/8 3/8 .3164 .3141 .3765 .3760 .3125 .3116 MSI-0506-06 3/4 7/8 11/2 .7559 .7525 .8760 .8750 .7500 .7490 MSI-1214-24
5/16 3/8 1/2 .3164 .3141 .3765 .3760 .3125 .3116 MSI-0506-08 3/4 1 3/8 .7559 .7525 1.0010 1.0000 .7500 .7490 MSI-1216-06
5/16 7/16 3/16 .3164 .3141 .4390 .4385 .3125 .3116 MSI-0507-03 3/4 1 1/2 .7559 .7525 1.0010 1.0000 .7500 .7490 MSI-1216-08
5/16 7/16 1/4 .3164 .3141 .4390 .4385 .3125 .3116 MSI-0507-04 3/4 1 5/8 .7559 .7525 1.0010 1.0000 .7500 .7490 MSI-1216-10
5/16 7/16 5/16 .3164 .3141 .4390 .4385 .3125 .3116 MSI-0507-05 3/4 1 3/4 .7559 .7525 1.0010 1.0000 .7500 .7490 MSI-1216-12
5/16 7/16 3/8 .3164 .3141 .4390 .4385 .3125 .3116 MSI-0507-06 3/4 1 1 .7559 .7525 1.0010 1.0000 .7500 .7490 MSI-1216-16
5/16 7/16 1/2 .3164 .3141 .4390 .4385 .3125 .3116 MSI-0507-08 3/4 1 1 1/4 .7559 .7525 1.0010 1.0000 .7500 .7490 MSI-1216-20
5/16 7/16 5/8 .3164 .3141 .4390 .4385 .3125 .3116 MSI-0507-10 3/4 1 1 1/2 .7559 .7525 1.0010 1.0000 .7500 .7490 MSI-1216-24
5/16 7/16 3/4 .3164 .3141 .4390 .4385 .3125 .3116 MSI-0507-12 13/16 1 1/2 .8184 .8151 1.0010 1.0000 .8126 .8116 MSI-1316-08
3/8 7/16 1/4 .3789 .3766 .4390 .4385 .3750 .3741 MSI-0607-04 7/8 1 3/4 .8809 .8775 1.0010 1.0000 .8750 .8740 MSI-1416-12
3/8 7/16 3/8 .3789 .3766 .4390 .4385 .3750 .3741 MSI-0607-06 7/8 1 1 .8809 .8775 1.0010 1.0000 .8750 .8740 MSI-1416-16
3/8 7/16 1/2 .3789 .3766 .4390 .4385 .3750 .3741 MSI-0607-08 7/8 1 1 1/2 .8809 .8775 1.0010 1.0000 .8750 .8740 MSI-1416-24
3/8 1/2 1/4 .3789 .3766 .5015 .5010 .3750 .3741 MSI-0608-04 7/8 1 1/8 1/2 .8809 .8775 1.1260 1.1250 .8750 .8740 MSI-1418-08
3/8 1/2 5/16 .3789 .3766 .5015 .5010 .3750 .3741 MSI-0608-05 7/8 1 1/8 3/4 .8809 .8775 1.1260 1.1250 .8750 .8740 MSI-1418-12
3/8 1/2 3/8 .3789 .3766 .5015 .5010 .3750 .3741 MSI-0608-06 7/8 1 1/8 1 .8809 .8775 1.1260 1.1250 .8750 .8740 MSI-1418-16
3/8 1/2 1/2 .3789 .3766 .5015 .5010 .3750 .3741 MSI-0608-08 7/8 1 1/8 1 1/2 .8809 .8775 1.1260 1.1250 .8750 .8740 MSI-1418-24
3/8 1/2 5/8 .3789 .3766 .5015 .5010 .3750 .3741 MSI-0608-10 1 1 1/8 3/4 1.0059 1.0025 1.1260 1.1250 1.0000 .9990 MSI-1618-12
3/8 1/2 3/4 .3789 .3766 .5015 .5010 .3750 .3741 MSI-0608-12 1 1 1/8 1 1.0059 1.0025 1.1260 1.1250 1.0000 .9990 MSI-1618-16
3/8 1/2 1 .3789 .3766 .5015 .5010 .3750 .3741 MSI-0608-16 1 1 1/8 1 1/2 1.0059 1.0025 1.1260 1.1250 1.0000 .9990 MSI-1618-24
7/16 9/16 3/8 .4422 .4395 .5941 .5934 .4375 .4365 MSI-0709-06 1 1 1/4 1/2 1.0059 1.0025 1.2510 1.2500 1.0000 .9990 MSI-1620-08
7/16 9/16 1/2 .4422 .4395 .5941 .5934 .4375 .4365 MSI-0709-08 1 1 1/4 5/8 1.0059 1.0025 1.2510 1.2500 1.0000 .9990 MSI-1620-10
1/2 5/8 1/4 .5047 .5020 .6260 .6250 .5000 .4990 MSI-0810-04 1 1 1/4 3/4 1.0059 1.0025 1.2510 1.2500 1.0000 .9990 MSI-1620-12
1/2 5/8 5/16 .5047 .5020 .6260 .6250 .5000 .4990 MSI-0810-05 1 1 1/4 1 1.0059 1.0025 1.2510 1.2500 1.0000 .9990 MSI-1620-16
1/2 5/8 3/8 .5047 .5020 .6260 .6250 .5000 .4990 MSI-0810-06 1 1 1/4 1 1/2 1.0059 1.0025 1.2510 1.2500 1.0000 .9990 MSI-1620-24
1/2 5/8 1/2 .5047 .5020 .6260 .6250 .5000 .4990 MSI-0810-08 1 1 1/4 2 1.0059 1.0025 1.2510 1.2500 1.0000 .9990 MSI-1620-32
1/2 5/8 5/8 .5047 .5020 .6260 .6250 .5000 .4990 MSI-0810-10 1 1/8 1 3/8 1 1.1309 1.1275 1.3760 1.3750 1.1250 1.1240 MSI-1822-16
1/2 5/8 3/4 .5047 .5020 .6260 .6250 .5000 .4990 MSI-0810-12 1 1/8 1 3/8 1 1/2 1.1309 1.1275 1.3760 1.3750 1.1250 1.1240 MSI-1822-24

3) After press-fit. Testing methods u Page 61 ASEAN 09/2023 ASEAN 09/2023 3) After press-fit. Testing methods u Page 61
1114 Service life calculation, configuration and more u www.igus-asean.com 3D CAD files, prices and delivery time online u www.igus-asean.com 1115
