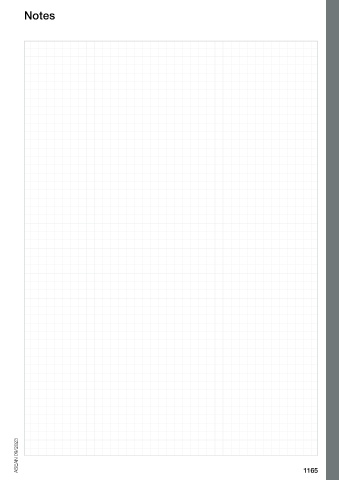

Inch Imperial product range | xiros | Polymer ball bearings Notes
®
xiros ®

Radial deep groove ball bearings, up to +80°C

d1

d2 b1
xirodur B180 Chapter „ Page 886
®

Part No. Race Cage Balls Inner Ø Outer Ø Width
ES GL d1 d2 b1
BB-I-0620-06-B180-10- 142) B180 PA 1,4401 Glas 3/16 5/8 10/51
BB-I-0820-06-B180-10-ES B180 PA 1,4401 – 1/4 5/8 10/51
BB-I-0824-07-B180-10- 142) B180 PA 1,4401 Glas 1/4 3/4 7/32
BB-I-1228-10-B180-10-ES B180 PA 1,4401 – 3/8 7/8 5/16
BB-I-1236-12-B180-10- 142) B180 PA 1,4401 Glas 3/8 1 1/8 3/8
BB-I-1636-12-B180-10- 142) B180 PA 1,4401 Glas 1/2 1 1/8 3/8
BB-I-2044-12-B180-10- 142) B180 PA 1,4401 Glas 5/8 1 3/8 3/8
BB-I-2452-16-B180-10- 142) B180 PA 1,4401 Glas 3/4 1 5/8 1/2
BB-I-3264-12-B180-10- 142) B180 PA 1,4401 Glas 1 2 1/2

142) For ball bearings with stainless steel balls please add suffix"-ES", for glass balls please add suffix "-GL".

Part No. Max. static Load capacity Limit speed Weight
axial load capacity stat. dyn. ES GL
[N] [N] [N] [rpm] [g] [g]
BB-I-0620-06-B180-ES/-GL 35 45 49 3,700 1.6 1.0
BB-I-0820-06-B180-ES 40 47 51 3,500 1.3 –
BB-I-0824-07-B180-ES/-GL 50 60 75 3,200 1.6 1.0
BB-I-1228-09-B180-ES 55 70 89 2,200 3.9 –
BB-I-1236-12-B180-ES/-GL 75 134 150 1,050 4.9 2.9
BB-I-1636-12-B180-ES/-GL 75 134 150 2,000 7.6 5.2
BB-I-2044-12-B180-ES/-GL 78 170 193 1,600 11.0 7.9
BB-I-2452-16-B180-ES/-GL 81 260 290 1,400 20.1 13.6
BB-I-3264-12-B180-ES/-GL 85 275 320 1,050 27,3 21.3
