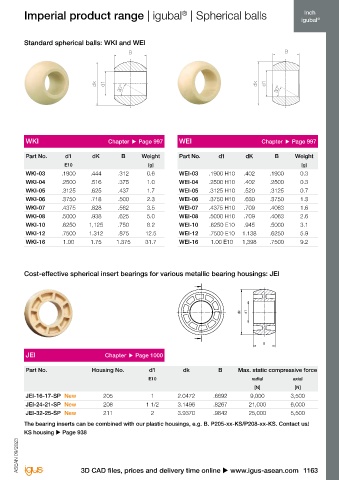

Inch Imperial product range | igubal | Spherical balls New Imperial product range | igubal | Spherical balls Inch
®
igubal ® igubal ®

Low-cost spherical balls: REI Standard spherical balls: WKI and WEI

B B B B

dk d1 d1 dk d1 dk d1
30° dk 30° 30° 30°

REI Chapter „ Page 998 WKI Chapter „ Page 997 WEI Chapter „ Page 997

Part No. d1 dK B Weight Part No. d1 dK B Weight Part No. d1 dK B Weight
E10 [g] E10 [g] [g]
REI-03 New .1875 .402 .1900 0.3 WKI-03 .1900 .444 .312 0.6 WEI-03 .1900 H10 .402 .1900 0.3
REI-04 New .2500 .402 .2500 0.3 WKI-04 .2500 .516 .375 1.0 WEI-04 .2500 H10 .402 .2500 0.3
REI-05 New .3125 .520 .3125 0.7 WKI-05 .3125 .625 .437 1.7 WEI-05 .3125 H10 .520 .3125 0.7
REI-06 New .3750 .630 .3750 1.3 WKI-06 .3750 .718 .500 2.3 WEI-06 .3750 H10 .630 .3750 1.3
REI-07 New .4275 .709 .4063 1.6 WKI-07 .4375 .828 .562 3.5 WEI-07 .4375 H10 .709 .4063 1.6
REI-08 New .5000 .709 .4063 2.6 WKI-08 .5000 .938 .625 5.0 WEI-08 .5000 H10 .709 .4063 2.6
REI-10 New .6250 .945 .5000 3.1 WKI-10 .6250 1,125 .750 8.2 WEI-10 .6250 E10 .945 .5000 3.1
REI-12 New .7500 1.138 .6250 5.9 WKI-12 .7500 1.312 .875 12.5 WEI-12 .7500 E10 1.138 .6250 5.9
REI-16 New 1.0000 1,398 .7500 9.2 WKI-16 1.00 1.75 1.375 31.7 WEI-16 1.00 E10 1,398 .7500 9.2

Cost-effective spherical insert bearings for various metallic bearing housings: JEI

dk d1

B
JEI Chapter „ Page 1000

Part No. Housing No. d1 dk B Max. static compressive force
E10 radial axial
[N] [N]
JEI-16-17-SP New 205 1 2.0472 .6692 9,000 3,500
JEI-24-21-SP New 208 1 1/2 3.1496 .8267 21,000 6,000
JEI-32-25-SP New 211 2 3.9370 .9842 25,000 5,500
The bearing inserts can be combined with our plastic housings, e.g. B. P205-xx-KS/P208-xx-KS. Contact us!
KS housing u Page 938
