Inch Imperial product range | igubal | Spherical bearings Imperial product range | igubal | Spherical bearings New Inch f 30°
®
®
igubal ® igubal ® d1 d2

B

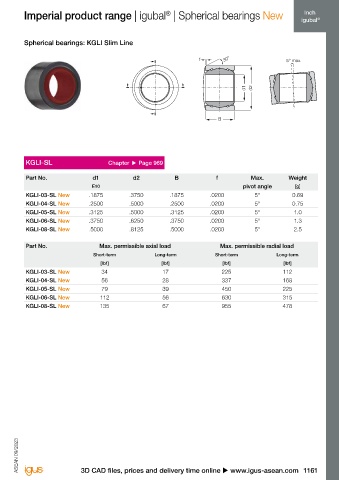

Spherical bearings: KGLI Spherical bearings: KGLI Slim Line
C B
f 30° 5° max.

d2 d1 d1 d2

f
30° B

5° max.

KGLI Chapter „ Page 970 KGLI-SL Chapter „ Page 969

Part No. Max. static load Max. d1 d2 B C f Max. Weight Part No. d1 d2 B f Max. Weight
tightening E10 pivot angle E10 pivot angle [g]
torque KGLI-03-SL New .1875 .3750 .1875 .0200 5° 0.69
radial axial 29) through ball KGLI-04-SL New .2500 .5000 .2500 .0200 5° 0.75
[N] [N] [Nm] [g] KGLI-05-SL New .3125 .5000 .3125 .0200 5° 1.0
KGLI-03 1,000 150 5 .1900 .5625 .312 .218 0.3 34° 1.2 KGLI-06-SL New .3750 .6250 .3750 .0200 5° 1.3
KGLI-04 1,500 250 10 .2500 .6562 .375 .250 0.3 30 ° 1.7 KGLI-08-SL New .5000 .8125 .5000 .0200 5° 2.5
KGLI-05 2,000 350 12 .3125 .7500 .437 .281 0.3 29° 2.6
KGLI-06 2,800 400 20 .3750 .8125 .500 .312 0.5 25 ° 3.3 Part No. Max. permissible axial load Max. permissible radial load
KGLI-07 3,750 450 30 .4375 .9375 .562 .343 0.5 25 ° 4.9 Short-term Long-term Short-term Long-term
KGLI-08 4,250 500 35 .5000 1.0625 .625 .390 0.5 25 ° 7.1 [lbf] [lbf] [lbf] [lbf]
KGLI-10 5,300 750 40 .6250 1.1875 .750 .500 0.5 23° 10.2 KGLI-03-SL New 34 17 225 112
KGLI-12 8,500 850 55 .7500 1.4375 .875 .593 0.5 23° 17.5 KGLI-04-SL New 56 28 337 168
KGLI-16 13,600 2,500 65 1.00 2.125 1.375 1,005 0.5 23° 62.7 KGLI-05-SL New 79 39 450 225

29) The maximum static axial load is determined when fitted into a blind housing. KGLI-06-SL New 112 56 630 315
KGLI-08-SL New 135 67 955 478
