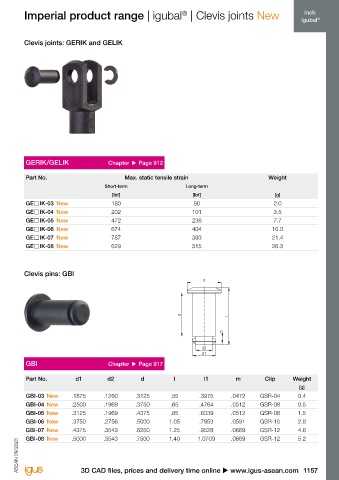

Inch Imperial product range | igubal | Clevis joints New Imperial product range | igubal | Clevis joints New Inch
®
®
igubal ® igubal ®

Clevis joints: GERI and GELI Clevis joints: GERIK and GELIK

d1 f
b1

90°

g
l1
l2

l3
d2
d3
a1

a2
GERI/GELI Chapter „ Page 908 GERIK/GELIK Chapter „ Page 912

Part No. d1 g a1 a2 b1 d2 d3 f I1 I2 h1 Part No. Max. static tensile strain Weight
H9 h11 +0.3 2B ±0.3 ±0.3 ±0.5 ±0.3 ±0.2 Short-term Long-term
-0.16 [lbf] [lbf] [g]
GE I-03 New .1875 .394 .394 .394 .197 10-32 .354 .02 1,024 .787 .295 GE IK-03 New 180 90 2.0
GE I-04 New .2500 .472 .472 .472 .236 1/4-28 .394 .02 1.205 .945 .354 GE IK-04 New 202 101 3.5
GE I-05 New .3125 .630 .630 .630 .315 5/16-24 .551 .02 1,638 1,260 .472 GE IK-05 New 472 236 7.7
GE I-06 New .3750 .787 .787 .787 .394 3/8-24 .709 .02 2.020 1.575 .591 GE IK-06 New 674 404 16.0
GE I-07 New .4375 .945 .945 .945 .472 7/16-20 .787 .02 2.413 1.890 .709 GE IK-07 New 787 393 21.4
GE I-08 New .5000 1.102 1.063 1.063 .551 1/2-20 .945 .02 2.807 2.205 .886 GE IK-08 New 629 315 26.3

Part No. Max. static tensile strain Weight
Short-term Long-term Clevis pins: GBI
[lbf] [lbf] [g] d
GE I-03 New 225 112 1.6
GE I-04 New 270 135 2.9
GE I-05 New 607 303 6.1
GE I-06 New 1056 528 13.0 l1 l
GE I-07 New 1281 640 16.5
GE I-08 New 719 360 20.8 m

d2
d1
GBI Chapter „ Page 917

Part No. d1 d2 d I l1 m Clip Weight
[g]
GBI-03 New .1875 .1260 .3125 .55 .3975 .0472 GSR-04 0.4
GBI-04 New .2500 .1969 .3750 .65 .4764 .0512 GSR-08 0.5
GBI-05 New .3125 .1969 .4375 .85 .6339 .0512 GSR-08 1.5
GBI-06 New .3750 .2756 .5000 1.05 .7953 .0591 GSR-10 2.8
.9528
GBI-07 New .4375 .3543 .6250 1.25 1.0709 .0669 GSR-12 4.6
GBI-08 New
GSR-12
.0669
.5000
.7500
.3543
5.2
1.40
ASEAN 09/2023 ASEAN 09/2023
1156 Service life calculation, configuration and more u www.igus-asean.com 3D CAD files, prices and delivery time online u www.igus-asean.com 1157
