P. 1154
®
Inch Imperial product range | igubal | Rod end bearings Imperial product range | igubal | Rod end bearings Inch
®
igubal ® igubal ®

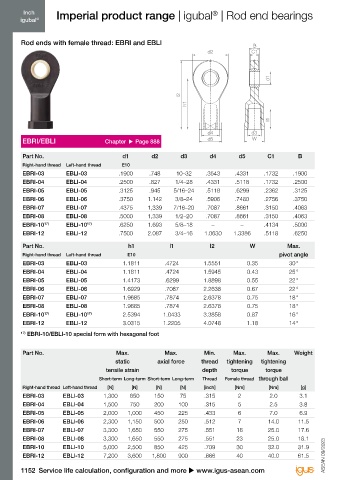

Rod ends with female thread: EBRI and EBLI B Rod ends with male thread: KARI and KALI B
d2 C1 d2 C1
d1 d1
l2
l2
h1 h1
l1
l1
d4 d3 d3
EBRI/EBLI Chapter Page 888 d5 W KARI/KALI Chapter Page 886
Part No. d1 d2 d3 d4 d5 C1 B Part No. d1 d2 d3 C1 B h1 l1 l2 Max.
Right-hand thread Left-hand thread E10 E10 pivot angle
EBRI-03 EBLI-03 .1900 .748 10–32 .3543 .4331 .1732 .1900 Right-hand thread Left-hand thread
EBRI-04 EBLI-04 .2500 .827 1/4–28 .4331 .5118 .1732 .2500 KARI-03 KALI-03 .1900 .625 10-32 .234 .312 1.25 .750 1.563 25°
EBRI-05 EBLI-05 .3125 .945 5/16–24 .5118 .6299 .2362 .3125 KARI-04 KALI-04 .2500 .750 1/4-28 .250 .365 1.562 1.00 1.937 25°
EBRI-06 EBLI-06 .3750 1.142 3/8–24 .5906 .7480 .2756 .3750 KARI-05 KALI-05 .3125 .875 5/16-24 .312 .437 1.875 1.25 2.313 25°
EBRI-07 EBLI-07 .4375 1,339 7/16–20 .7087 .8661 .3150 .4063 KARI-06 KALI-06 .3750 1.00 3/8-24 .359 .500 1.938 1.25 2.438 22°
EBRI-08 EBLI-08 .5000 1,339 1/2–20 .7087 .8661 .3150 .4063 KARI-07 KALI-07 .4375 1,125 7/16-20 .406 .562 2.125 1.375 2.688 22°
EBRI-10 17) EBLI-10 17) .6250 1.693 5/8–18 – – .4134 .5000 KARI-08 KALI-08 .5000 1.312 1/2-20 .453 .625 2.428 1.50 2.094 22°
EBRI-12 EBLI-12 .7500 2.087 3/4–16 1.0630 1.3386 .5118 .6250 KARI-10 KALI-10 .6250 1.50 5/8-18 .484 .750 2.625 1.625 3.375 22°
KARI-12 KALI-12 .7500 1.75 3/4-16 .593 .875 2.875 1.75 3.75 22°
Part No. h1 I1 I2 W Max. KARI-16 KALI-16 1.00 2.75 1-12 1.00 1.375 4.125 2.35 5.50 20°
Right-hand thread Left-hand thread E10 pivot angle
EBRI-03 EBLI-03 1.1811 .4724 1.5551 0.35 30 ° Part No. Max. Max. Min. Max. Max. Weight
EBRI-04 EBLI-04 1.1811 .4724 1.5945 0.43 25 ° static axial force thread tightening tightening
EBRI-05 EBLI-05 1.4173 .6299 1.8898 0.55 22 ° tensile strain depth torque torque
EBRI-06 EBLI-06 1.6929 .7087 2.2638 0.67 22 ° through ball
EBRI-07 EBLI-07 1.9685 .7874 2.6378 0.75 18 ° Short-term Long-term Short-term Long-term Male thread
EBRI-08 EBLI-08 1.9685 .7874 2.6378 0.75 18 ° Right-hand thread Left-hand thread [N] [N] [N] [N] [inch] [Nm] [Nm] [g]
EBRI-10 17) EBLI-10 17) 2.5394 1.0433 3.3858 0.87 16 ° KARI-03 KALI-03 390 200 70 35 .525 0.5 3 2.1
EBRI-12 EBLI-12 3.0315 1.2205 4.0748 1.18 14 ° KARI-04 KALI-04 900 450 100 50 .700 1.0 4 3.5
KARI-05 KALI-05 1,100 550 150 75 .875 2.0 10 6
17) EBRI-10/EBLI-10 special form with hexagonal foot KARI-06 KALI-06 1,500 750 350 175 .875 3.0 15 8.8
KARI-07 KALI-07 2,000 1,000 400 200 .962 6.0 25 12.4
Part No. Max. Max. Min. Max. Max. Weight KARI-08 KALI-08 2,500 1,250 450 225 1,050 9.0 35 18.5
static axial force thread tightening tightening KARI-10 KALI-10 3,500 1,750 600 300 1.137 12.0 50 27.6
tensile strain depth torque torque KARI-12 KALI-12 3,900 1,950 1,000 500 1.226 25.0 70 42.8
Short-term Long-term Short-term Long-term Thread Female thread through ball KARI-16 KALI-16 4,400 2,200 1,300 650 1.488 45.0 85 143.3
Right-hand thread Left-hand thread [N] [N] [N] [N] [inch] [Nm] [Nm] [g]
EBRI-03 EBLI-03 1,300 650 150 75 .315 2 2.0 3.1
EBRI-04 EBLI-04 1,500 750 200 100 .315 5 2.5 3.8
EBRI-05 EBLI-05 2,000 1,000 450 225 .433 6 7.0 6.9
EBRI-06 EBLI-06 2,300 1,150 500 250 .512 7 14.0 11.5
EBRI-07 EBLI-07 3,300 1,650 550 275 .551 18 25.0 17.6
EBRI-08 EBLI-08 3,300 1,650 550 275 .551 23 25.0 18.1
EBRI-10 EBLI-10 5,000 2,500 850 425 .709 30 32.0 31.9
EBRI-12 EBLI-12 7,200 3,600 1,800 900 .866 40 40.0 61.5 ASEAN 09/2023 ASEAN 09/2023
1152 Service life calculation, configuration and more u www.igus-asean.com 3D CAD files, prices and delivery time online u www.igus-asean.com 1153
