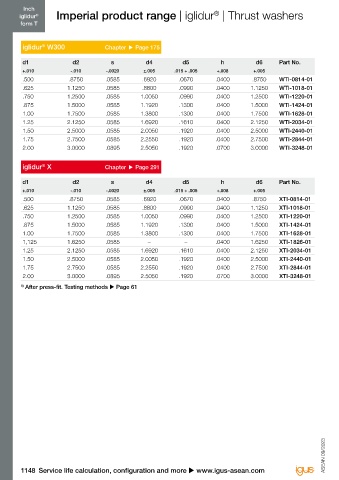

Page 1150 - IGUS Bearing

Inch Inch
®
®
®
iglidur Imperial product range | iglidur | Thrust washers Imperial product range | iglidur | More products iglidur -
®
other
form T designs
Clip bearings
iglidur W300 Chapter „ Page 175 b1
®
b2
d1 d2 s d4 d5 h d6 Part No. b2
+.010 -.010 -.0020 ±.005 .015 + .005 +.008 +.005
.500 .8750 .0585 .6920 .0670 .0400 .8750 WTI-0814-01 30°
.625 1.1250 .0585 .8800 .0990 .0400 1.1250 WTI-1018-01 d1 d4 max. d2 d3
.750 1.2500 .0585 1.0050 .0990 .0400 1.2500 WTI-1220-01
.875 1.5000 .0585 1.1920 .1300 .0400 1.5000 WTI-1424-01
1.00 1.7500 .0585 1.3800 .1300 .0400 1.7500 WTI-1628-01
1.25 2.1250 .0585 1.6920 .1610 .0400 2.1250 WTI-2034-01 b3
1.50 2.5000 .0585 2.0050 .1920 .0400 2.5000 WTI-2440-01 Image exemplary
1.75 2.7500 .0585 2.2550 .1920 .0400 2.7500 WTI-2844-01
2.00 3.0000 .0895 2.5050 .1920 .0700 3.0000 WTI-3248-01

iglidur X Chapter „ Page 291 Clip bearings Chapter „ Page 652
®
d1 d2 s d4 d5 h d6 Part No. d1 d2 d3 d4 b1 b2 b3 Part No.
+.010 -.010 -.0020 ±.005 .015 + .005 +.008 +.005 D11 7) +0.20 -0.10
.500 .8750 .0585 .6920 .0670 .0400 .8750 XTI-0814-01 3/16 0.2343 1/4 5/16 0.138 0.032 0.074 MCI-03-01
.625 1.1250 .0585 .8800 .0990 .0400 1.1250 XTI-1018-01 3/16 0.2343 1/4 5/16 0.200 0.032 0.136 MCI-03-02
.750 1.2500 .0585 1.0050 .0990 .0400 1.2500 XTI-1220-01 1/4 0.3125 11/32 7/16 0.138 0.032 0.074 MCI-04-01
.875 1.5000 .0585 1.1920 .1300 .0400 1.5000 XTI-1424-01 1/4 0.3125 11/32 7/16 0.200 0.032 0.136 MCI-04-02
1.00 1.7500 .0585 1.3800 .1300 .0400 1.7500 XTI-1628-01 5/16 0.3750 13/32 1/2 0.138 0.032 0.074 MCI-05-01
1,125 1.6250 .0585 – – .0400 1.6250 XTI-1826-01 5/16 0.3750 13/32 1/2 0.200 0.032 0.136 MCI-05-02
1.25 2.1250 .0585 1.6920 .1610 .0400 2.1250 XTI-2034-01 3/8 0.4375 15/32 9/16 0.138 0.032 0.074 MCI-06-01
1.50 2.5000 .0585 2.0050 .1920 .0400 2.5000 XTI-2440-01 3/8 0.4375 15/32 9/16 0.200 0.032 0.136 MCI-06-02
1.75 2.7500 .0585 2.2550 .1920 .0400 2.7500 XTI-2844-01 7/16 0.5000 17/32 5/8 0.138 0.032 0.074 MCI-07-01
2.00 3.0000 .0895 2.5050 .1920 .0700 3.0000 XTI-3248-01 7/16 0.5000 17/32 5/8 0.200 0.032 0.136 MCI-07-02
3) After press-fit. Testing methods u Page 61 1/2 0.5625 19/32 11/16 0.138 0.032 0.074 MCI-08-01
1/2 0.5625 19/32 11/16 0.200 0.032 0.136 MCI-08-02
7) d1 value is measured with a plug gauge after fitting into a reference housing d2 (+0.005).
Please see D11 tolerances table u Page 62

ASEAN 09/2023 ASEAN 09/2023

1148 Service life calculation, configuration and more u www.igus-asean.com 3D CAD files, prices and delivery time online u www.igus-asean.com 1149
